Product Description

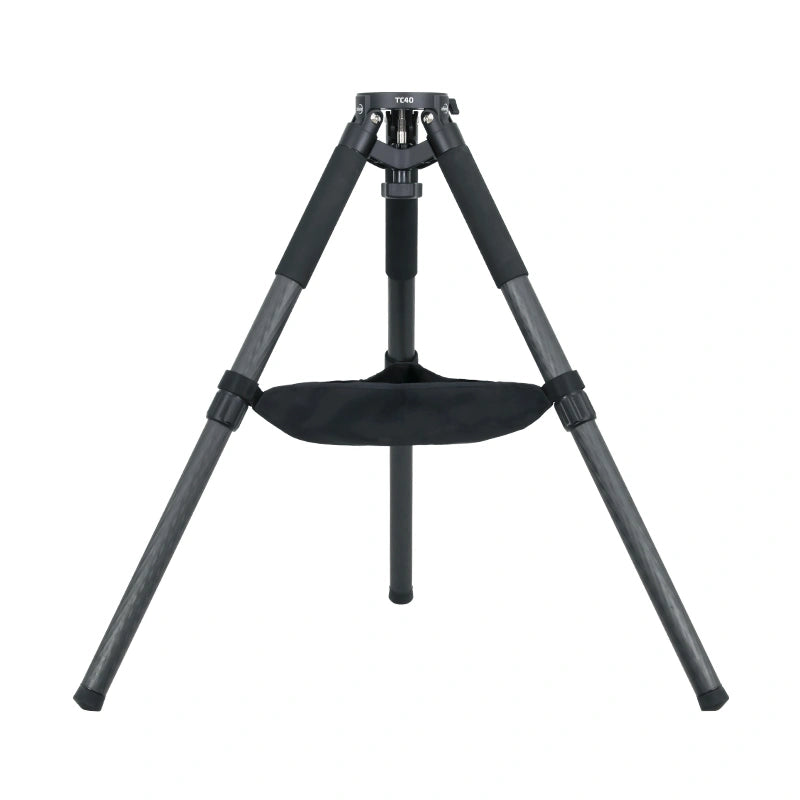

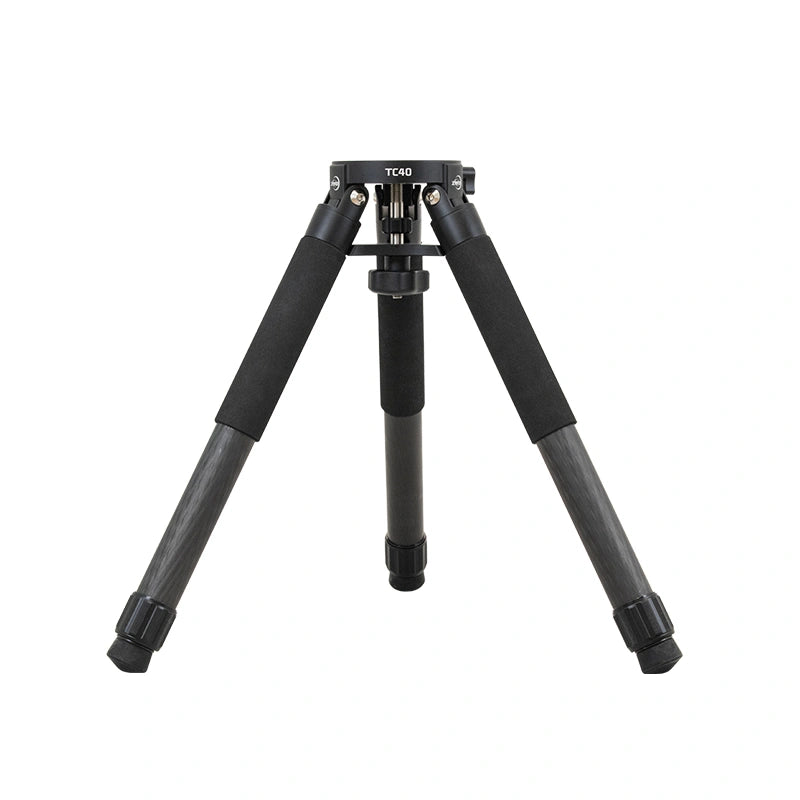

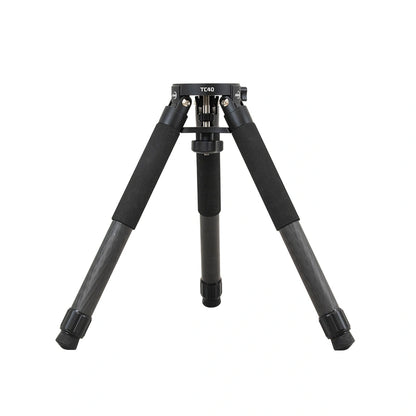

The ZWO TC40 Carbon Fiber Tripod is a lightweight, rigid, and highly portable tripod designed to provide a stable foundation for astrophotography setups. It is specifically designed to work with ZWO harmonic equatorial mounts, including the AM3 and AM5.
Built from high-strength carbon fiber with CNC-machined aluminum fittings, the TC40 combines low weight with an impressive load capacity of up to 50 kg. Its two-section legs can be adjusted from 47 cm to 80 cm, while the compact 50 cm folded length makes it easy to transport and store.
The tripod is an excellent choice for astrophotographers who need a strong yet portable support system for telescopes, cameras, and ZWO mount setups. The included weight bag can also be used to add extra stability when required.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | ZWO |
| Model | TC40 |
| Product Type | Carbon Fiber Tripod |
| Material | Carbon Fiber with CNC-Machined Aluminum Fittings |
| Weight | 2.3 kg (5.1 lbs) |
| Maximum Load Capacity | 50 kg (110.2 lbs) |
| Minimum Height | 47 cm (18.5 inches) |
| Maximum Height | 80 cm (31.5 inches) |
| Folded Length | 50 cm (19.7 inches) |
| Leg Sections | 2 |
| Upper Leg Diameter | 40 mm |
| Lower Leg Diameter | 36 mm |
| Mount Connection | 3/8"-16 |
| Compatibility | ZWO AM3 and AM5 Mounts |
| Leg Lock | Twist Lock |
| Feet | Spiked Feet |
What Comes in the Box?
- 1 × ZWO TC40 Carbon Fiber Tripod
- 3 × Spiked Feet
- 1 × Head Plate
- 1 × Weight Bag
- Mounting hardware
Why Buy from Sky Deep Co.?
Sky Deep Co. is the authorized ZWO dealer in Pakistan, offering genuine ZWO astronomy equipment with local support and manufacturer warranty assistance. Buying the TC40 from an authorized ZWO dealer helps ensure product authenticity and dependable after-sales support. Sky Deep Co. can also guide you with compatible ZWO mounts, pier extensions, counterweights, and other astrophotography accessories for your setup.
FAQs
Is the ZWO TC40 compatible with the AM5?
Yes. The TC40 is designed to work with the ZWO AM5 harmonic equatorial mount.
What is the load capacity of the ZWO TC40?
The TC40 has a maximum load capacity of up to 50 kg (110.2 lbs).
How much does the ZWO TC40 weigh?
The tripod weighs approximately 2.3 kg (5.1 lbs).
What is the height range of the TC40?
The TC40 adjusts from approximately 47 cm to 80 cm.
Is the ZWO TC40 easy to transport?
Yes. Its carbon fiber construction and compact 50 cm folded length make it suitable for portable astrophotography setups and travel.
