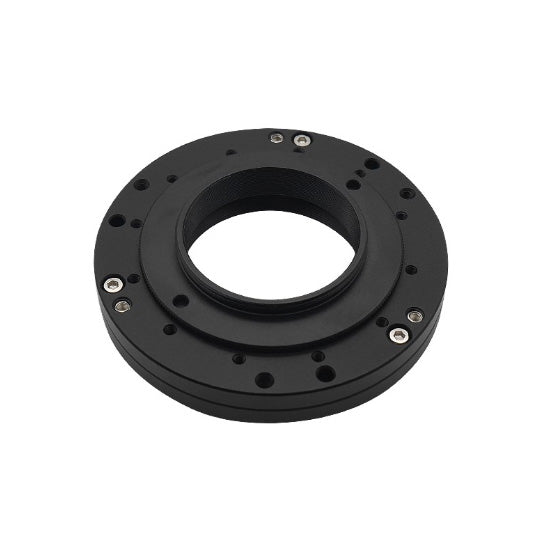

ZWO T2 Tilter II for ASI Cameras

The ZWO T2 Tilter II is a precision tilt adjustment accessory designed to help astrophotographers eliminate Newton’s rings and correct sensor tilt in their imaging setups. Built from high-quality anodized aluminum, this compact accessory features M42 (T2) threads on both sides, allowing seamless integration with compatible ASI cameras and filter wheels.

This second-generation version improves compatibility with ZWO's 2" EFW filter wheels and offers precise imaging plane adjustments using six adjustable screws. Whether you're using the ASI294, ASI1600, ASI183, or compact uncooled cameras like the ASI178 or ASI120, the Tilter II helps you fine-tune your sensor alignment to achieve sharp, uniform stars across the field. With a sleek design and enhanced versatility, the T2 Tilter II is an indispensable tool for solar imaging and demanding deep-sky astrophotography rigs.

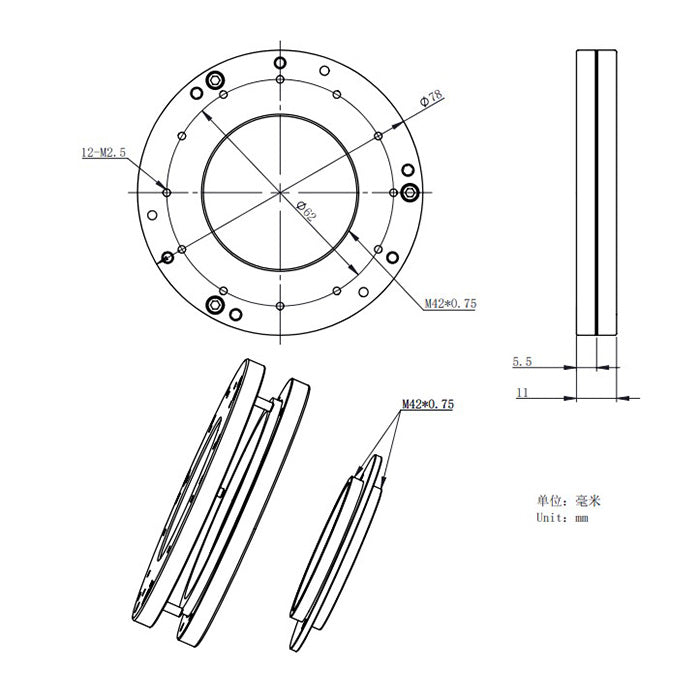

• Thread Size: M42 x 0.75 (T2) – both sides
• Adapter Included: T2-T2 adapter ring
• Outer Diameter: 78 mm
• Body Thickness: 11 mm (without adapter)
• Construction: CNC-machined anodized aluminum
• Adjustment Mechanism: Six-point screw-based tilt tuning
• Compatibility:
  • ASI294, ASI1600, ASI183, ASI533, ASI174 – direct mount
  • ASI178, ASI290, ASI224, ASI120 – use T2-T2 adapter
• Use Case: Corrects sensor tilt, minimizes Newton’s rings in solar imaging
• Warranty: ZWO – 2 Years
• SKU Number: ZWO-T2-TILTER-II
• Model Number: T2-TILTER-II

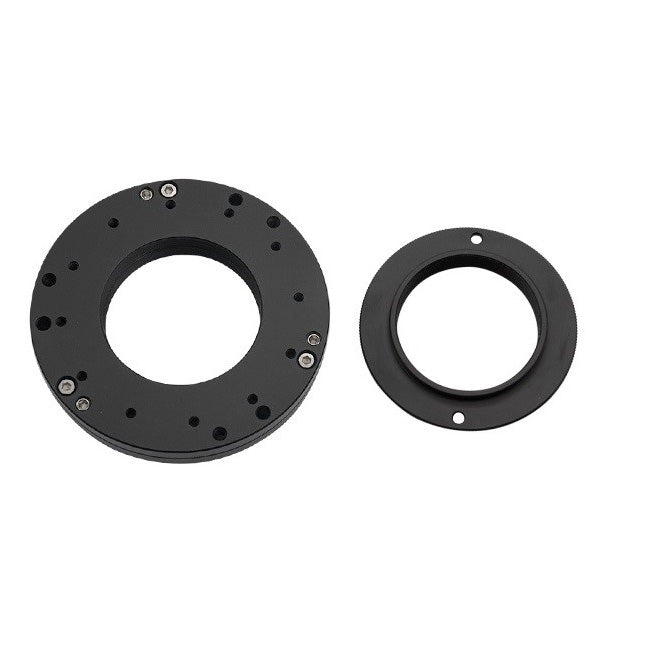

• ZWO T2 Tilter II Adapter Body
• T2-T2 Adapter
• Hex Wrench
