ZWO Gen 2 M42 x 0.75 Filter Drawer for 2" Filters

Product Description

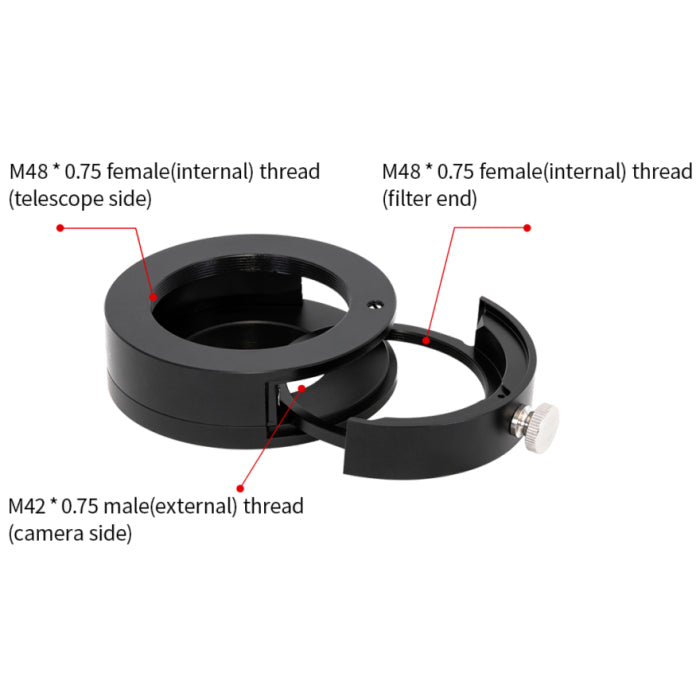

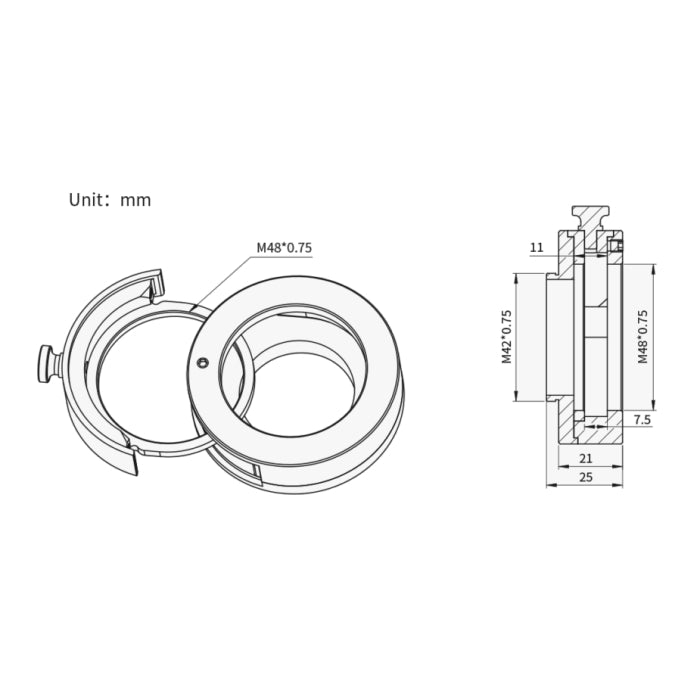

The ZWO Gen 2 M42 x 0.75 Filter Drawer for 2" Filters is a practical solution for astrophotographers who need quick access to 2-inch filters without repeatedly dismantling their imaging setup. Designed with a 21 mm optical thickness, the drawer integrates neatly into an imaging train while maintaining a predictable optical path. It uses an M42 × 0.75 male thread on the camera side and an M48 × 0.75 female thread for the filter and telescope side.

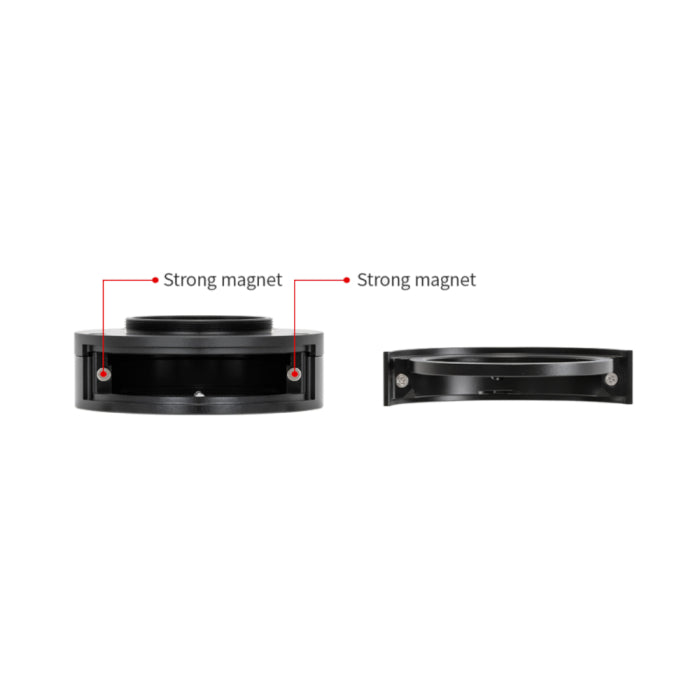

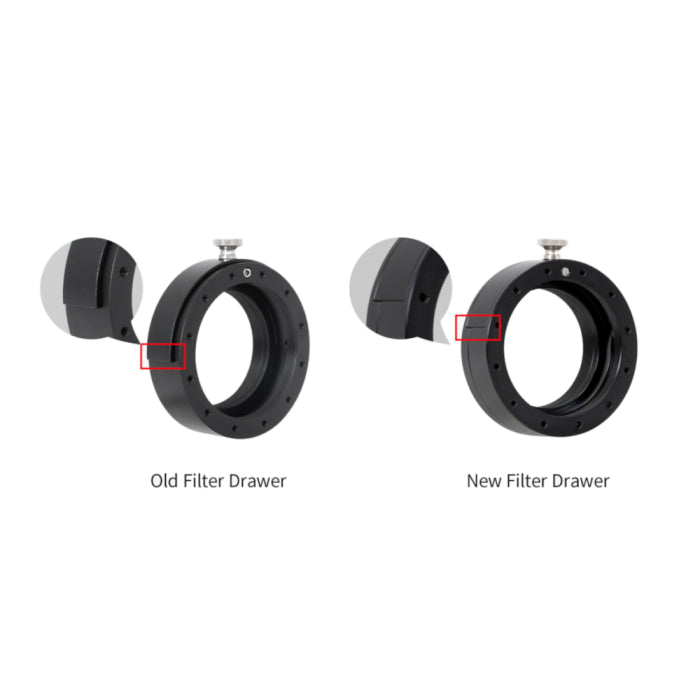

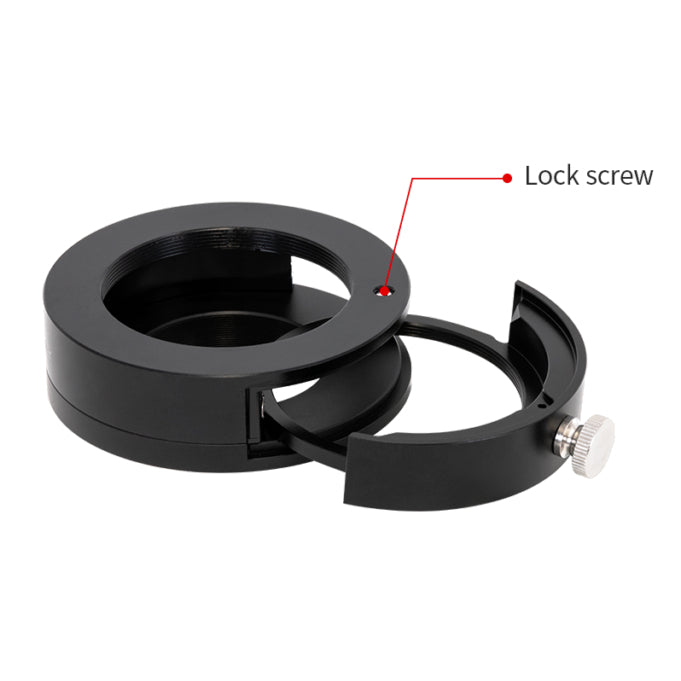

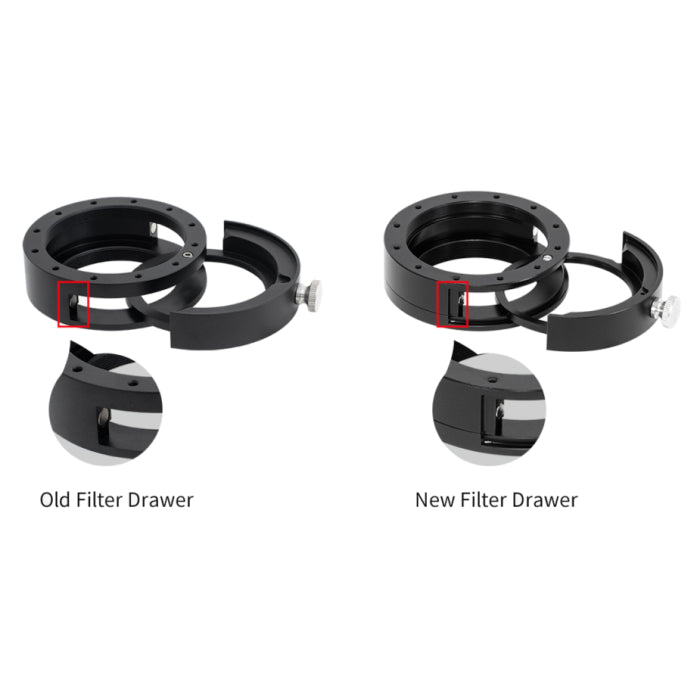

The Gen 2 design uses strong magnetic adsorption to make filter installation and removal quick and convenient. In addition, a side locking screw helps secure the drawer and reduce unwanted movement or gaps during imaging. The improved anti-light-leak design is particularly useful for long-exposure astrophotography, where unwanted light entering the optical train can affect image quality.

Key Features

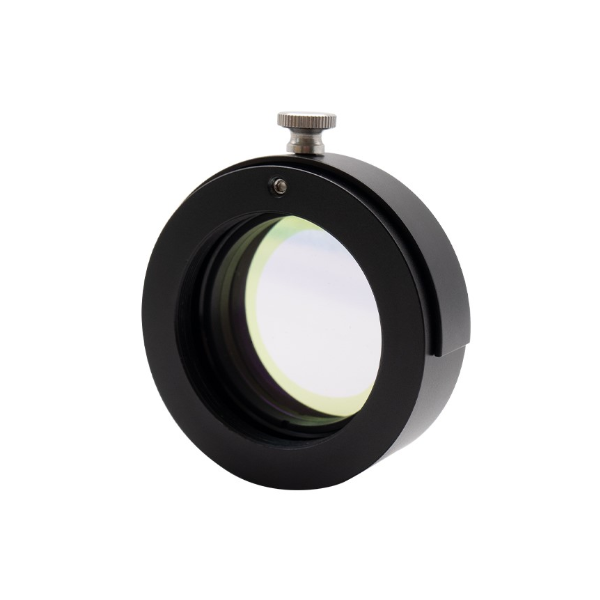

1. Supports standard 2-inch astronomical filters
2. M42 × 0.75 male camera-side thread
3. M48 × 0.75 female filter/telescope-side thread
4. Approximately 21 mm optical thickness
5. Strong magnetic filter-holder system
6. Side locking screw for additional security
7. Improved protection against light leakage
8. Compact aluminium construction
9. Suitable for deep-sky astrophotography and other filtered imaging setups

Technical Specifications

What Comes in the Box?

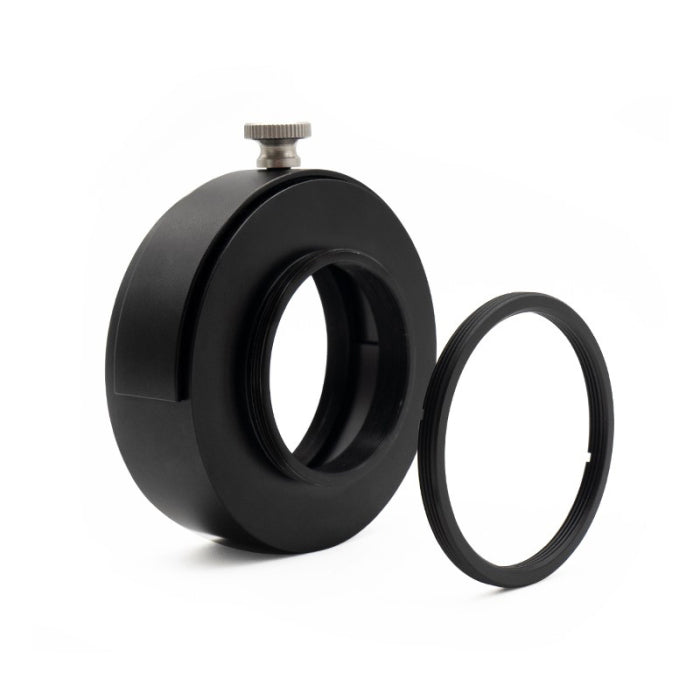

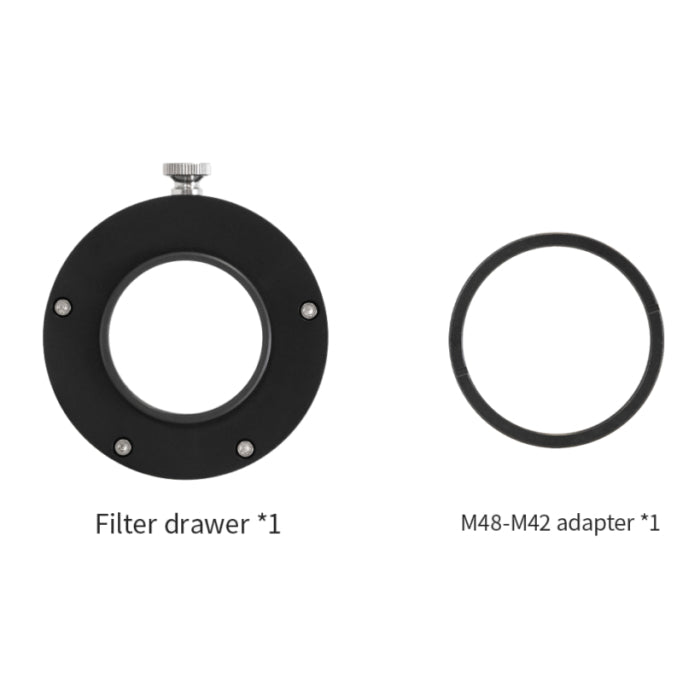

The package includes the ZWO Gen 2 M42 Filter Drawer and an M48-M42 adapter ring for connecting compatible cameras, telescopes, or other imaging accessories. The filter itself is not included, so you can install the compatible 2-inch filter of your choice.

Ideal for Astrophotography

For astrophotographers who regularly switch between UV/IR-cut, broadband, narrowband, or other 2-inch filters, a filter drawer can make an imaging session considerably more convenient. Instead of disassembling the optical train each time, you can slide the filter drawer out, replace the filter, and return it to position.

Furthermore, the 21 mm optical thickness can be useful when planning your imaging train and back-focus requirements. Therefore, always calculate the complete optical path of your camera, adapters, corrector, and filter drawer before installation.

Why Buy from Sky Deep Co.?

Sky Deep Co. is the only authorised dealer of ZWO and Celestron in Pakistan, supplying genuine astronomy equipment rather than counterfeit or unauthorised products.

When you purchase the ZWO Gen 2 M42 Filter Drawer from Sky Deep, you also get the advantage of local support, expert gear consultation, nationwide delivery, and warranty-backed purchasing. Most importantly, you can buy genuine ZWO equipment with confidence instead of risking a China-made copy or unreliable grey-market product.

FAQs

1. What size filters does this ZWO drawer support?

It is designed for standard 2-inch astronomical filters.

2. What thread does the camera side use?

The camera side uses an M42 × 0.75 male thread.

3. What is the optical thickness of the drawer?

The Gen 2 M42 filter drawer has an optical thickness of approximately 21 mm.

4. Does the filter drawer include a filter?

No. The drawer is supplied with the required adapter, while the 2-inch astronomical filter is purchased separately.

5. Is this a genuine ZWO product in Pakistan?

Yes. Sky Deep Co. identifies itself as Pakistan's only authorised ZWO dealer, providing genuine ZWO astronomy equipment with local support.
