ZWO FD-M54-II 2 Filter Drawer
ZWO FD-M54-II 2 Filter Drawer
SKU:ZWO-FD-M54-II
Available Soon
Couldn't load pickup availability
Short Description

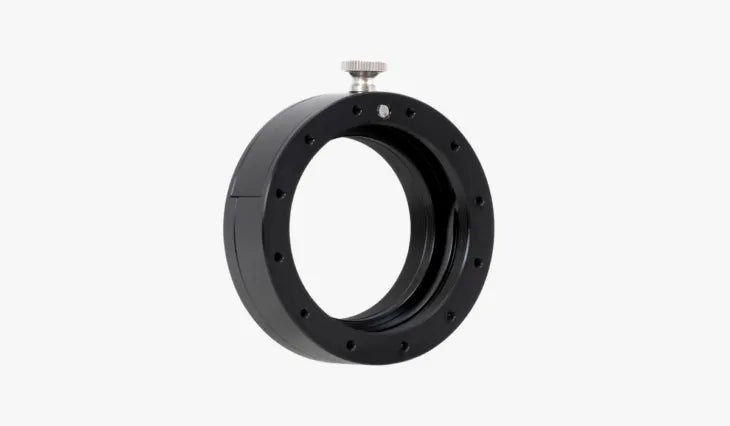

The ZWO FD-M54-II 2" Filter Drawer is a convenient magnetic filter system designed for quickly changing 2-inch mounted astronomical filters. Built for M54-threaded imaging systems, it features strong double magnets and an adjustable locking screw for secure positioning. Its anti-light-leak design makes it especially useful for long-exposure astrophotography and full-frame cooled cameras such as the ZWO ASI2600MC Duo, ASI6200, and ASI2400 series.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | ZWO |
| Model | FD-M54-II |
| Product Type | 2" Magnetic Filter Drawer |
| Material | CNC-Machined Aluminum |
| Diameter | 70 mm |
| Thickness | 20 mm |
| Camera-Side Thread | M54 × 0.75 Male |
| Filter-End Thread | M48 × 0.75 Female |
| Telescope-Side Thread | M54 × 0.75 Female |
| Filter Compatibility | 2" Mounted Astronomical Filters |
| Holding Mechanism | Double Strong Magnets + Adjustable Locking Screw |
| Light Protection | Anti-Light-Leak Design |
| Compatible Cameras | ASI2600MC Duo, ASI6200, ASI2400 Series and compatible full-frame setups |
| Warranty | 2-Year Manufacturer Warranty |
What Comes in the Box?
- 1 × ZWO FD-M54-II Filter Drawer Body
- 1 × Filter Holder
- 1 × M54–M48F-2mm Adapter
- 1 × Locking Screw
Why Buy from Sky Deep Co?
Buy the ZWO FD-M54-II 2" Filter Drawer from Sky Deep Co. for genuine ZWO astrophotography equipment and dependable local support in Pakistan. Sky Deep Co. provides ZWO products for astronomy and astrophotography enthusiasts, helping customers choose compatible equipment and accessories for their imaging setups.
FAQs
1. What is the ZWO FD-M54-II Filter Drawer used for?
It allows astrophotographers to quickly install and change 2-inch mounted filters in compatible M54-threaded imaging systems.
2. What filter size does the FD-M54-II support?
It is designed for 2-inch mounted astronomical filters.
3. How does the magnetic filter drawer work?
It uses two strong magnets for secure attachment, while the side locking screw helps adjust tension and eliminate gaps.
4. Is the FD-M54-II suitable for full-frame cameras?
Yes. ZWO specifically lists it as suitable for full-frame cameras including the ASI2600MC Duo, ASI6200, and ASI2400 series.
5. Does the FD-M54-II help prevent light leaks?
Yes. Its improved anti-light-leak design is intended to reduce unwanted light leakage and artifacts during long exposures.
