ZWO D60-2 IR-Cut Protective Window – 60mm UV/IR-Cut Filter for ASI Cameras
ZWO D60-2 IR-Cut Protective Window – 60mm UV/IR-Cut Filter for ASI Cameras
SKU:ZWO-D60-2-IR-CUT
Available Soon
Couldn't load pickup availability
Product Description

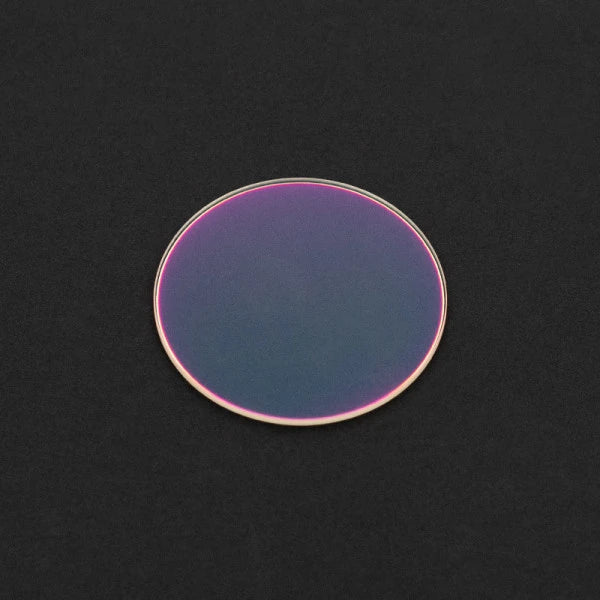

The ZWO D60-2 IR-Cut Protective Window is a 60mm UV/IR-cut protective filter designed for compatible ZWO ASI cameras. It helps protect the camera sensor from dust and humidity while blocking unwanted ultraviolet and infrared wavelengths for cleaner, sharper astrophotography results. With 1.1mm thickness, 1/4 wavelength flatness, and over 90% transmission from 400–675nm, it provides reliable optical protection while maintaining excellent visible-light transmission.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | ZWO |
| Product Type | UV/IR-Cut Protective Window |
| Diameter | 60mm |
| Thickness | 1.1mm |
| Optical Flatness | 1/4 wavelength |
| Transmission | >90% at 400–675nm |
| Filter Type | UV/IR-Cut |
| Main Function | Sensor protection and UV/IR light blocking |
| Protection | Helps protect against dust and humidity |
| Compatible Models | ASI6200MC Pro, ASI2400MM Pro, ASI2600 Series |
| Application | Astrophotography and astronomical imaging |
What's in the Box?
The ZWO D60-2 IR-Cut Protective Window package includes 1 × D60-2 IR-Cut Protective Window, a protective storage case, and an instruction manual. The included case helps keep the optical window protected when it is not installed, while the manual provides useful handling and product information.
Why Buy from Sky Deep Co.?
Sky Deep Co. is the authorized ZWO dealer in Pakistan, making it a reliable source for genuine ZWO astronomy equipment and accessories. Customers can benefit from authentic products, expert astronomy guidance, free gear consultation, competitive pricing, nationwide delivery, and dedicated support when selecting compatible astrophotography equipment. Sky Deep also identifies itself as the Official Learning Partner of Lahore Astronomical Society and Pakistan's first astro imaging and learning hub.
FAQs
1. What does the ZWO D60-2 IR-Cut Protective Window do?
It protects compatible ASI camera sensors from dust and humidity while filtering unwanted UV and IR wavelengths during imaging.
2. What is the diameter of the D60-2 IR-Cut window?
The protective window has a 60mm diameter, making it suitable for compatible ZWO camera assemblies designed for the D60 window.
3. How much visible light does the filter transmit?
The D60-2 provides more than 90% transmission across the 400–675nm range, supporting strong visible-light transmission for astrophotography.
4. Which ZWO cameras are compatible with this protective window?
Sky Deep lists compatibility with the ASI6200MC Pro, ASI2400MM Pro, and ASI2600 series. Always verify the exact camera model before installation.
5. Why use an IR-cut protective window for astrophotography?
An IR-cut window helps prevent unwanted infrared wavelengths from reaching the sensor, which can improve colour and image accuracy when using compatible astronomical cameras.
