ZWO CAA (Camera Angle Adjuster) Electronic Rotator
ZWO CAA (Camera Angle Adjuster) Electronic Rotator
SKU:ZWO-CAA-ROTATOR
Available Soon
Couldn't load pickup availability
Product Description
The ZWO CAA (Camera Angle Adjuster) Electronic Rotator is a compact, motorized camera rotator designed for precise framing and composition in astrophotography. It allows you to electronically adjust your camera angle without manually rotating the entire imaging setup.
With a resolution of 0.02° per step and positioning accuracy of less than 0.1°, the CAA provides fine control when composing targets, adjusting framing, or capturing mosaics. Its high-efficiency stepper motor supports smooth rotation at speeds of up to 7.5°/s.
The CAA has a low-profile design with only 16.5mm of back-focus usage, making it suitable for compact astrophotography setups. It supports ASIAIR, ASIStudio, ASCOM, SDK, and EAF Controller control, giving astrophotographers multiple options for automated or manual operation.
A single USB Type-C connection provides power and data communication, helping simplify cable management. The CAA also features a 48mm clear aperture and can handle loads up to 5kg under the specified torque rating.
Whether you are refining composition, aligning a target, or working on a multi-panel mosaic, the ZWO CAA provides accurate electronic camera rotation while maintaining a rigid optical train.

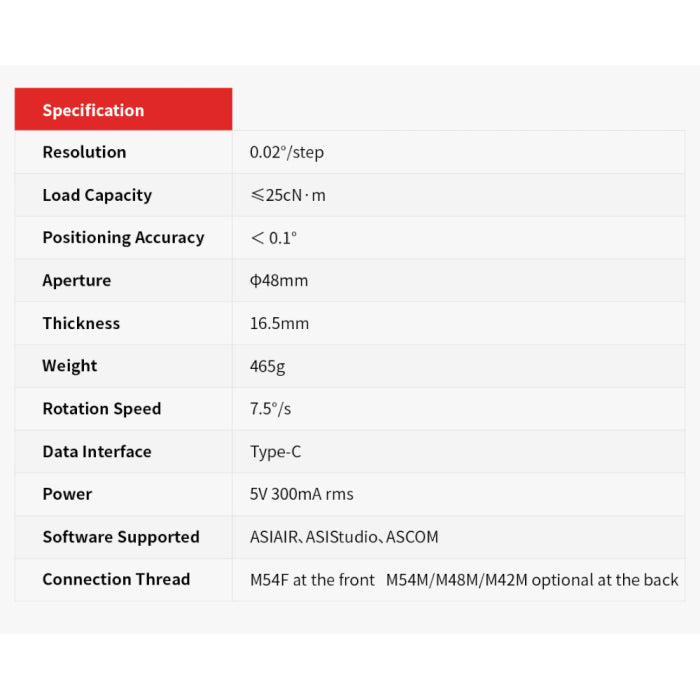

Technical Specifications
| Specification | Details |
|---|---|
| Product Name | ZWO CAA M54 Camera Angle Adjuster |
| Type | Motorized Camera Rotator |
| Resolution | 0.02°/step |
| Positioning Accuracy | <0.1° |
| Rotation Speed | 7.5°/s |
| Load Capacity | ≤2.5 N·m / 5kg |
| Clear Aperture | Φ48mm |
| Back Focus Usage | 16.5mm |
| Dimensions | 136 × 102 × 35mm |
| Weight | 465g |
| Data Interface | USB Type-C |
| Power | 5V, 300mA RMS |
| Protection Level | IP42 |
| Axial Runout | <0.5mm |
| Radial Runout | <0.5mm |
| Concentricity | <0.5mm |
| Parallelism | <0.5mm |
| Software Compatibility | ASIAIR, ASIStudio, ASCOM, SDK |
| Controller Compatibility | ZWO EAF Hand Controller |
| Front Connection Thread | M54F |
| Rear Connection Thread | M54M / M48M optional |

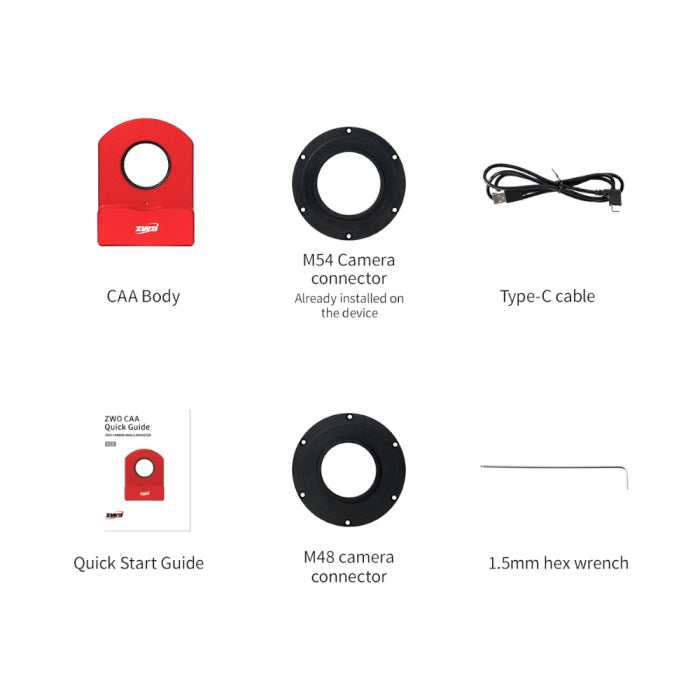

What’s in the Box?
- ZWO CAA Camera Angle Adjuster
- M54 Adapter
- M48 Adapter
- USB Type-C Cable
- 1.5mm Hex Wrench
- Quick Guide
The standard package contents are listed in ZWO's CAA manual.
Why Buy ZWO CAA from Sky Deep Co.?
Sky Deep Co. makes it easier for astrophotographers in Pakistan to access genuine ZWO equipment with local support and guidance. As an authorized ZWO dealer in Pakistan, Sky Deep Co. provides genuine products with warranty support, secure packaging, and nationwide delivery.
You can also get guidance on compatibility, camera rotation setups, adapters, and other astrophotography accessories before placing your order. Sky Deep Co. offers free gear consultation, helping you choose equipment that fits your existing imaging setup.
FAQs
What is the ZWO CAA Electronic Rotator used for?
The ZWO CAA is used to electronically rotate an astrophotography camera for accurate image framing, target composition, alignment, and mosaic imaging.
How accurately can the ZWO CAA rotate a camera?
The CAA provides 0.02° per step resolution, with positioning accuracy of less than 0.1° according to ZWO's specifications.
Is the ZWO CAA compatible with ASIAIR?
Yes. The ZWO CAA supports ZWO ASIAIR and ASIStudio, as well as ASCOM-compatible software.
What is the back-focus requirement of the ZWO CAA?
The CAA uses 16.5mm of back focus. Proper spacing should be considered when integrating it with your telescope, camera, field flattener, or reducer.
How much weight can the ZWO CAA handle?
The CAA is specified for a load capacity of up to 5kg, with a maximum torque rating of 2.5 N·m.
