ZWO

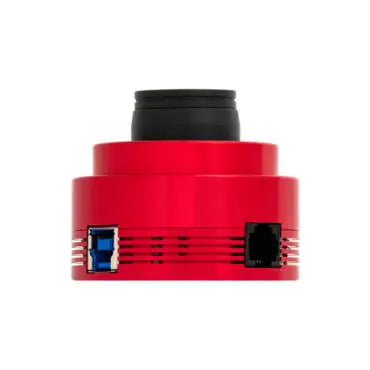

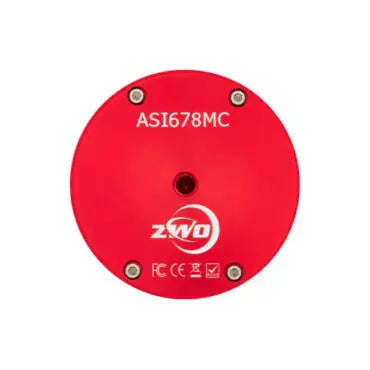

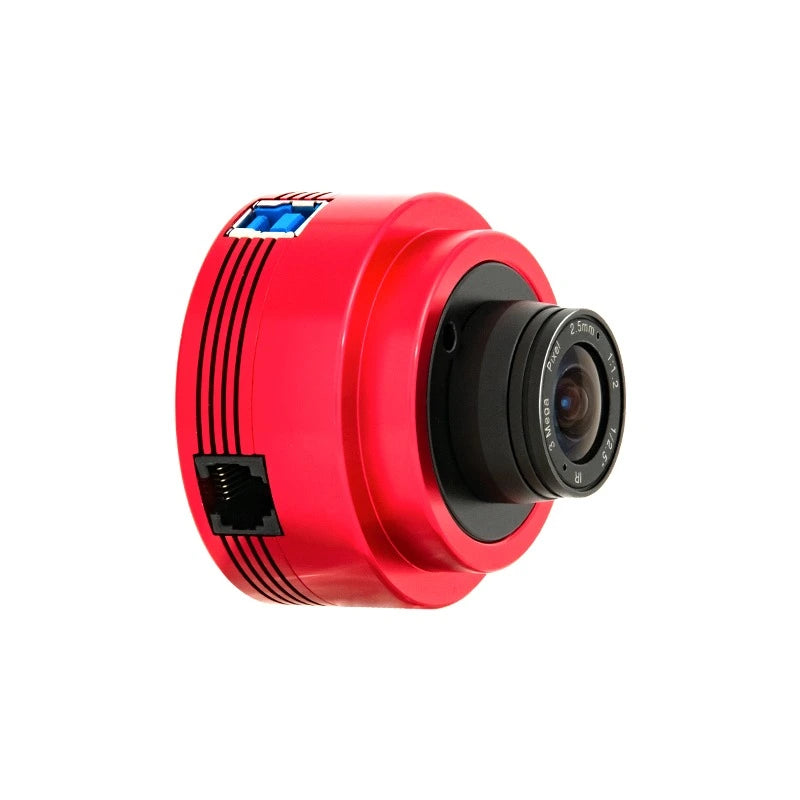

ZWO ASI678MC Color CMOS Astronomy Camera
ZWO ASI678MC Color CMOS Astronomy Camera
SKU:ZWO-ASI678MC
Available Soon
Couldn't load pickup availability
Product Description
The ZWO ASI678MC Color CMOS Astronomy Camera is a high-resolution planetary and solar-system camera built around Sony’s IMX678 back-illuminated color CMOS sensor. With a 3840 × 2160 resolution, 2.0 μm pixels, and 8.29-megapixel output, it captures fine details across the Moon, planets, and other bright solar-system targets.
The ASI678MC combines high sensitivity with low read noise and an approximately 83% peak quantum efficiency. Its 47.5 FPS full-resolution performance allows astrophotographers to capture fast sequences for stacking, helping preserve sharp details during moments of good atmospheric seeing.
The camera also features a rolling shutter, 12-bit ADC, USB 3.0 connectivity, and a compact 126 g body. Its small 2.0 μm pixels make it particularly useful for high-resolution planetary imaging when paired with a suitable telescope and optical setup.
Technical Specifications
| Specification | Details |
|---|---|
| Model | ZWO ASI678MC |
| Sensor | Sony IMX678AAQR1-C |
| Sensor Type | Color CMOS |
| Sensor Format | 1/1.8" |
| Sensor Size | 7.68 × 4.32 mm |
| Resolution | 3840 × 2160 |
| Megapixels | 8.29 MP |
| Pixel Size | 2.0 μm |
| Diagonal | 8.86 mm |
| Peak QE | 83% |
| Read Noise | 0.6–2.7e |
| Full Well Capacity | 11.27Ke |
| ADC | 12-bit |
| Maximum Frame Rate | 47.5 FPS |
| Shutter | Rolling Shutter |
| Exposure Range | 32 μs–2000 s |
| Interface | USB 3.0 / USB 2.0 Type-B |
| Back Focus | 12.5 mm |
| Protect Window | AR D21 × 1 mm |
| Weight | 126 g |
| Supported Systems | Windows, Linux & Mac OS X |
| Best For | Lunar, planetary and solar imaging |
What Comes in the Box?
- ZWO ASI678MC Color Camera
- USB 3.0 Cable
- ST4 Guide Cable
- 1.25" Nosepiece
- Dust Cover
- Quick Start Guide
Sky Deep's current product listing also identifies the ASI678MC as a color CMOS astronomy camera and lists the camera, USB 3.0 cable, ST-4 cable, 1.25" nosepiece, dust cover, and quick-start documentation.
Why Buy from Sky Deep Co.?
Choose the ZWO ASI678MC from Sky Deep Co. for genuine ZWO astronomy equipment backed by local product guidance and support in Pakistan. Sky Deep identifies itself as Pakistan's Official Authorized Partner for ZWO, providing genuine astronomy products and assistance with choosing suitable cameras, telescopes, filters, and accessories.
Sky Deep also provides astronomy-focused gear consultation, helping customers select equipment based on their telescope, imaging target, and astrophotography setup. This makes the ASI678MC easier to integrate into a suitable planetary or solar imaging workflow.
FAQs
Is the ZWO ASI678MC a color camera?
Yes. The ASI678MC uses Sony's IMX678 color CMOS sensor.
What is the resolution of the ASI678MC?
It provides 3840 × 2160 resolution, equivalent to approximately 8.29 megapixels.
What is the maximum frame rate?
The ASI678MC can reach 47.5 FPS at full resolution.
Is the ASI678MC good for planetary imaging?
Yes. Its high resolution, small 2.0 μm pixels, high QE, and fast frame rate make it well suited to lunar and planetary imaging.
Does the ASI678MC have cooling?
No. The ASI678MC is an uncooled camera designed primarily for high-speed solar-system imaging.
