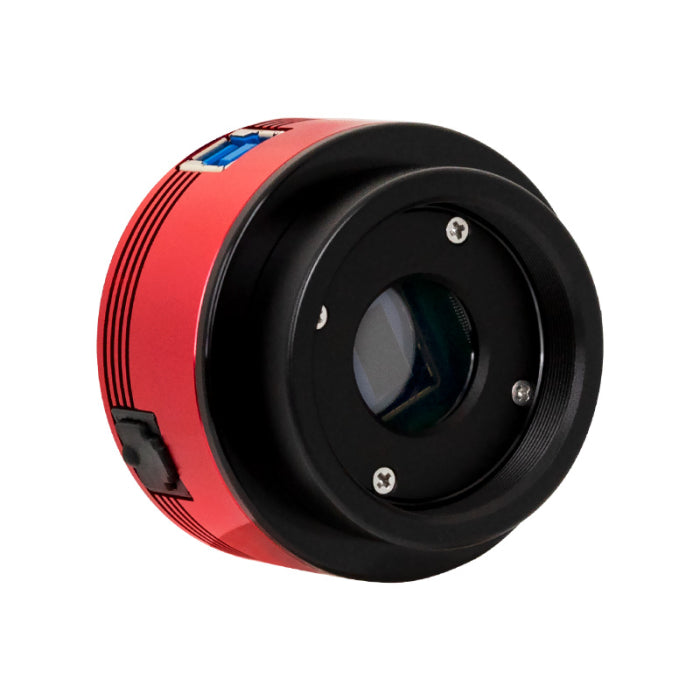

ZWO ASI482MC USB 3.0 Color CMOS Astronomy Camera
ZWO ASI482MC USB 3.0 Color CMOS Astronomy Camera
SKU:SD-ZWO-ASI482MC-CM779C3
Available Soon
Couldn't load pickup availability
Product Description
The ZWO ASI482MC USB 3.0 Color CMOS Astronomy Camera is a high-sensitivity, uncooled color astronomy camera designed for high-speed planetary, lunar, and solar imaging. It features the Sony IMX482 back-illuminated CMOS sensor with a 1/1.2-inch format, 2.07 MP resolution, and large 5.8 μm pixels for strong light collection.
With a peak quantum efficiency of 85% and a full-well capacity of 51.5 ke⁻, the ASI482MC is designed to capture detailed images in low-light conditions while maintaining a useful dynamic range. Its 12-bit ADC and high-speed USB 3.0 connection allow efficient image acquisition for fast-moving planetary targets.
The camera can achieve up to 82.5 FPS at full resolution, making it particularly useful for planetary and lunar imaging where high frame rates help capture brief moments of good atmospheric seeing. Its HCG mode can reduce read noise to around 1.5 e⁻ while maintaining a wide dynamic range.
The ASI482MC also includes an ST-4 guide port, allowing it to be used for autoguiding applications in compatible setups. With support for Windows, Linux, and macOS, it can be integrated into a range of astronomy imaging workflows.
Technical Specifications
| Specification | Details |
|---|---|
| Camera Model | ZWO ASI482MC |
| Camera Type | Uncooled Color CMOS Astronomy Camera |

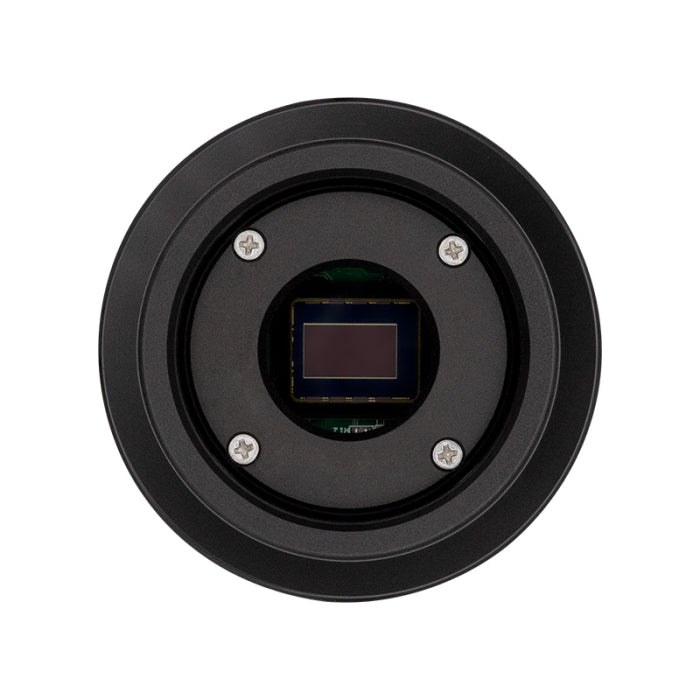

| Sensor | Sony IMX482 CMOS |
| Sensor Format | 1/1.2" |
| Sensor Size | 11.13 × 6.26 mm |
| Sensor Diagonal | 12.86 mm |
| Resolution | 1920 × 1080 |
| Total Pixels | 2.07 MP |
| Pixel Size | 5.8 μm |
| Peak Quantum Efficiency | 85% |
| Full-Well Capacity | 51.5 ke⁻ |
| Read Noise | 1.5–12.9 e⁻ |
| ADC | 12-bit |
| Maximum Frame Rate | 82.5 FPS |
| Shutter | Rolling Shutter |
| Exposure Range | 32 μs–2000 s |
| Interface | USB 3.0 |
| Guide Port | ST-4 |
| Connection Adapters | 2", 1.25", M42 × 0.75 |
| Protective Window | AR-coated |
| Back Focus | 6.5 mm / 17.5 mm |
| Camera Weight | Approx. 133 g |
| Working Temperature | -5°C to 50°C |
| Supported Operating Systems | Windows, Linux, Mac OS X |
What Comes in the Box?
- ZWO ASI482MC Camera
- 1.25" Nosepiece
- Dust Cap
- USB 3.0 Cable
- ST-4 Guide Cable
- Quick Start Guide
Why Buy from Sky Deep Co.?
Sky Deep Co. provides genuine astronomy equipment for astrophotographers, astronomy enthusiasts, and planetary imaging users in Pakistan. The ZWO ASI482MC is a practical choice for users looking for a high-frame-rate color camera for planetary, lunar, and solar imaging.
Sky Deep Co. is an authorized ZWO and Celestron partner in Pakistan, providing genuine astronomy products along with local product guidance, warranty support, and after-sales assistance. Customers can also get guidance on camera compatibility, telescope selection, filters, mounts, and other astrophotography accessories.
FAQs
Is the ZWO ASI482MC good for planetary imaging?
Yes. Its 82.5 FPS full-resolution capture rate and 5.8 μm pixels make it well suited to high-speed planetary and lunar imaging.
Is the ASI482MC a cooled camera?
No. The ASI482MC is an uncooled color CMOS camera.
What sensor does the ASI482MC use?
It uses the Sony IMX482 CMOS sensor with a 1/1.2-inch format, 1920 × 1080 resolution, and 5.8 μm pixels.
Can the ASI482MC be used for solar imaging?
Yes, it can be used for solar imaging with a properly rated solar filter and suitable solar-imaging setup.
Does the ASI482MC support autoguiding?
Yes. The camera includes an ST-4 guide port for compatible autoguiding setups.
