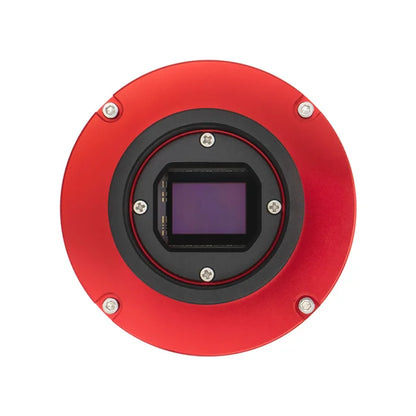

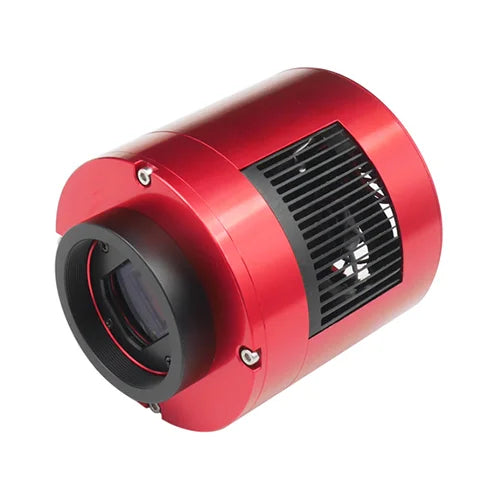

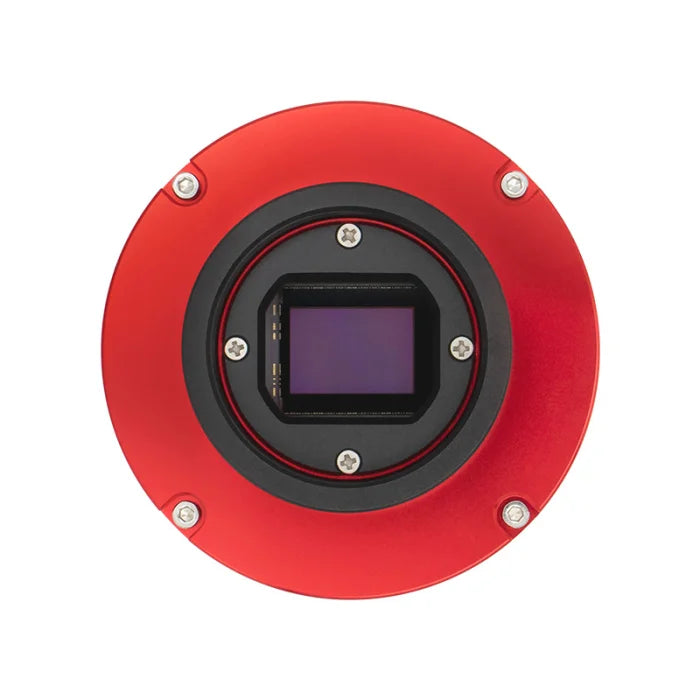

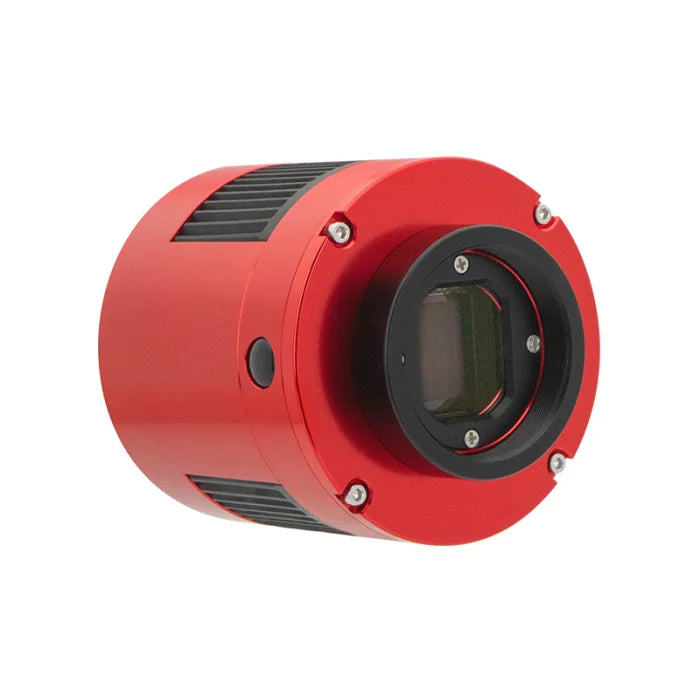

ZWO ASI294MM-Pro Cooled Monochrome Astronomy Camera
ZWO ASI294MM-Pro Cooled Monochrome Astronomy Camera
Regular price
$1,480.00 USD
Regular price
Sale price
$1,480.00 USD
SKU:ZWO-ASI294MM-P
Low stock: 1 left
Quantity
Couldn't load pickup availability
PRODUCT DESCRIPTION
The ZWO ASI294MM-Pro cooled monochrome camera is built for serious Astro photographers seeking maximum sensitivity, dynamic range, and clean imaging. Leveraging the Sony IMX492 back-illuminated 4/3″ CMOS sensor, its large full well capacity and low read noise allow for exceptional deep-sky performance. With dual-stage TEC cooling down to about 35-40 °C below ambient, this camera excels at long exposures under dark skies.
- 11.7 megapixels (4144×2822) in Bin2 mode with 4.63 µm pixels; supports "Unlocked Bin1" for 47 MP effective resolution.
- Full well capacity ~66 ke⁻, ideal for capturing bright stars and faint nebulosity without clipping.
- Peak quantum efficiency ≈ 90 % due to back-illuminated sensor architecture.
- Highly efficient dual-stage TEC cooler bringing temperature down to ~35-40 °C below ambient for low dark current.
- 256 MB DDR3 buffer ensures stable high-speed data transfer (especially helpful over USB2 without amp-glow issues).
- Robust build with AR protective window, multiple adapters/extenders included. Compact and field-ready.
TECHNICAL SPECIFICATIONS
| Sensor | Sony IMX492, 4/3″ CMOS, back-illuminated |
| Resolution | 4144 × 2822 (11.7 MP) in Bin2; supports Unlocked Bin1 (~8288×5644) |
| Pixel Size | 4.63 µm (Bin2) / 2.3 µm (Bin1) |
| Full Well Capacity | ≈ 66,000 e- (Bin2) |
| Read Noise | ~1.2-7.3 e- depending on gain settings |
| Quantum Efficiency (Peak) | ≈ 90 % |
| Cooling | Dual-Stage TEC, ~35-40 °C below ambient |
| Exposure Range | 32 µs – 2000 s |
| Interfaces | USB 3.0 & USB 2.0 hub, AR protective window |
| Back Focus Distance | 6.5 mm (native) |
| Diameter × Length | ≈ 78 mm ⌀ × ~73.5 mm length (without certain adapters) |
| Weight | ≈ 410 g (cooled body) |
| Power Requirements | 12 V @ ~3 A for cooling, typical USB power for electronics |
| Operating Temperature | −5 °C to ~45 °C typical, storage −10-60 °C |
WHAT’S IN THE BOX
- ASI294MM-Pro Camera Body
- AR Protective Window / Lens Cover
- M42-M48 Adapter Ring & Extenders (16.5 mm & 21 mm)
- T-Ring / Nosepiece (1.25")
- USB 3.0 Cable (~2m) & USB 2.0 Cable(s)
- Spacer Rings / Extenders
- Soft Padded Camera Bag or Protective Pouch
- Quick-Start Guide / Documentation
