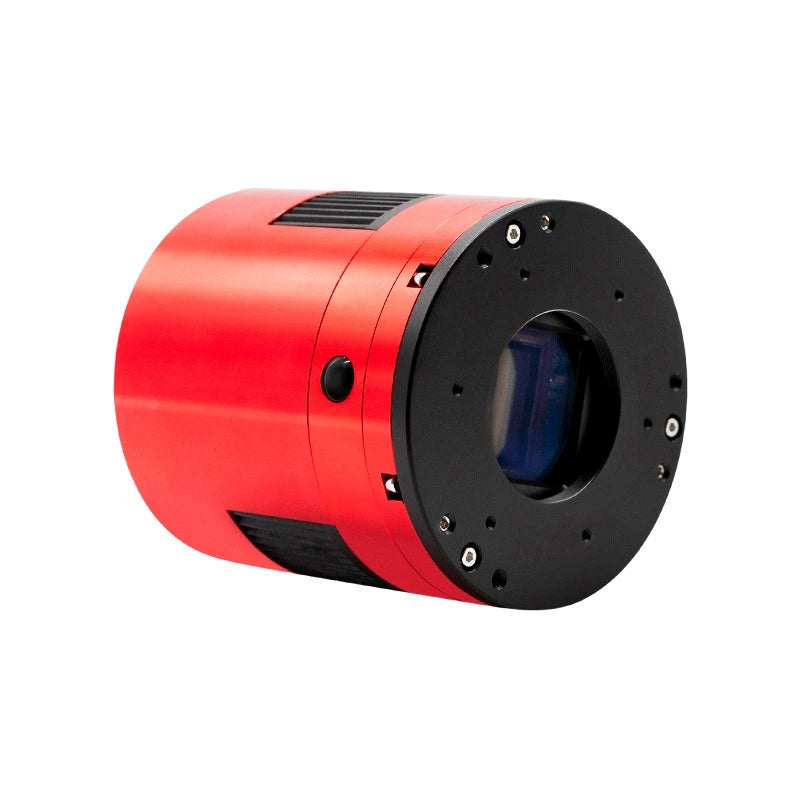

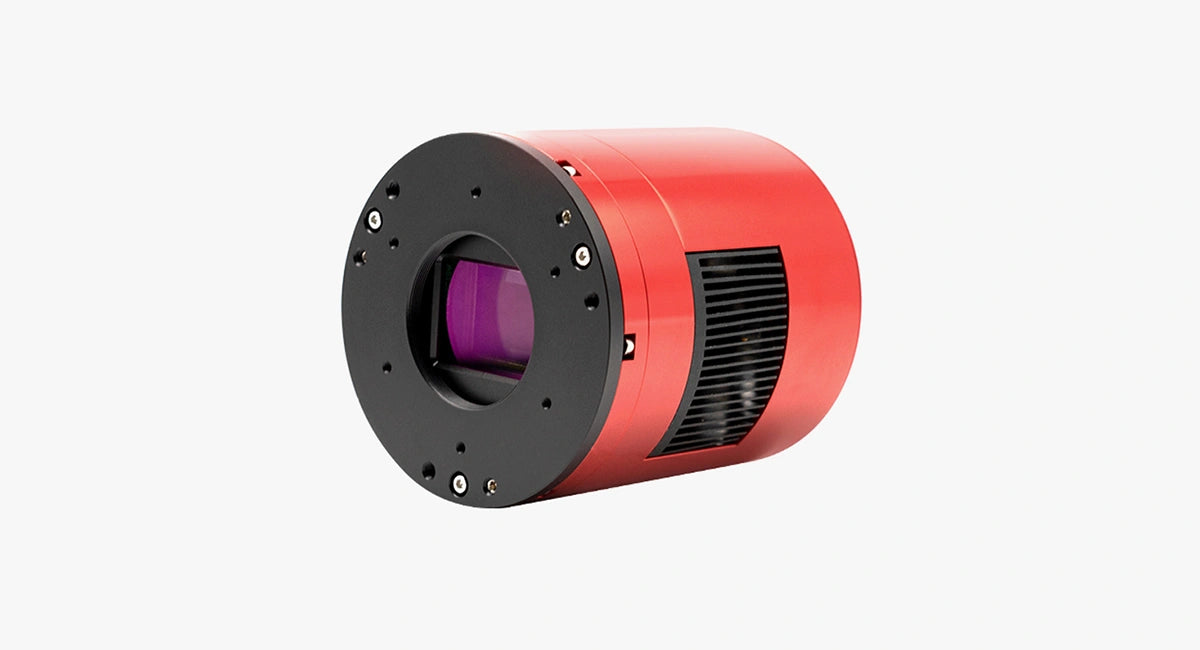

ZWO ASI2600MM P 25 Cooled Monochrome Astronomy Camera
ZWO ASI2600MM P 25 Cooled Monochrome Astronomy Camera
Regular price
$1,999.00 USD
Regular price
Sale price
$1,999.00 USD
SKU:ZWO-ASI-2600-MM-Pro
Low stock: 1 left
Quantity
Couldn't load pickup availability
PRODUCT DESCRIPTION
The ZWO ASI2600MM Pro is a cooled monochrome astronomy camera built around Sony’s high-performance IMX571 (APS-C) sensor. With 6248×4176 (~26 MP) resolution and 3.76 µm pixels, the ASI2600MM Pro offers an excellent balance between resolution and pixel size for a wide range of telescopes — from short focal length refractors to medium/long focal length reflectors. The camera features a native 16-bit ADC, very low read noise, a large full well capacity and reliable two-stage TEC cooling (down to ~-35°C deltaT), making it ideal for deep-sky imaging and precision photometry.
TECHNICAL SPECIFICATIONS
| Sensor | Sony IMX571, back-illuminated, monochrome (APS-C) |
|---|---|
| Resolution | 6248 × 4176 (~26.1 MP) |
| Pixel Size | 3.76 µm |
| Sensor Size | 23.5 mm × 15.7 mm (diagonal 28.3 mm) |
| ADC / Dynamic Range | 16-bit ADC, ~14 stops dynamic range (typical) |
| Full Well | ~50,000 e- (extended mode up to ~73,000 e- on some models/settings) |
| Read Noise | Ultra-low; typical ~1 e- (varies with gain/settings) |
| Cooling | Two-stage TEC; ~35°C (~95°F) below ambient (typical) |
| Backfocus / Mounting | M54 × 0.75 connection; standard backfocus ~17.5 mm |
| Connectivity | USB 3.0 (USB-B), additional USB2.0 ports for accessories |
| Buffer | 512 MB DDR3 buffer |
| Dimensions | Compact camera body — see vendor for exact body dimensions |
| Weight | ~700 g (0.7 kg / 24.7 oz) — camera body only |
WHAT'S IN THE BOX
- ZWO ASI2600MM Pro camera body
- Protective cover
- M54-M54 (16.5 mm) extender, M54-M48 (21 mm) extender, M54-M48 adapter
- USB 3.0 cable (2.0 m) and USB 2.0 cable(s)
- Quick start guide, hex wrench (for tilt adjustments)
- Soft camera bag (varies by retailer / bundle)
