ZWO
ZWO ASI2600MM Air Cooled Monochrome Astronomy Camera
ZWO ASI2600MM Air Cooled Monochrome Astronomy Camera
SKU:ZWO-ASI2600MM-AIR
In stock
Couldn't load pickup availability
PRODUCT DESCRIPTION

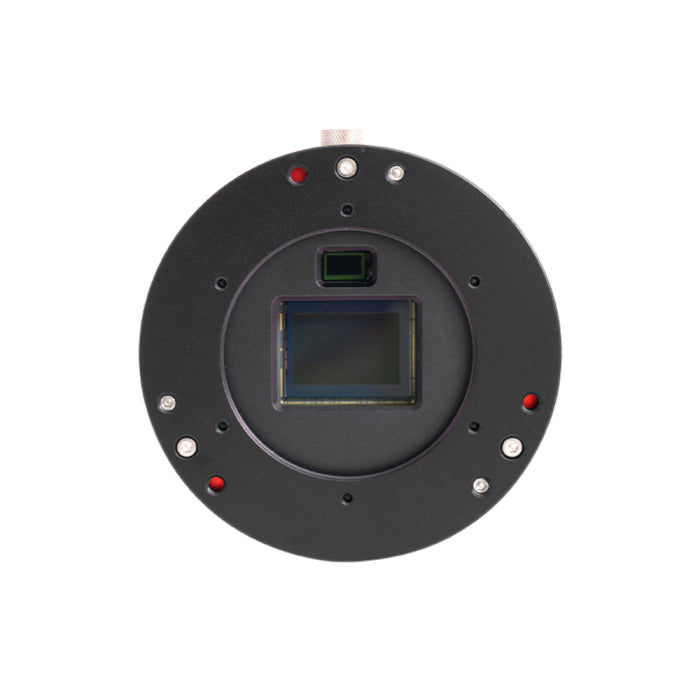

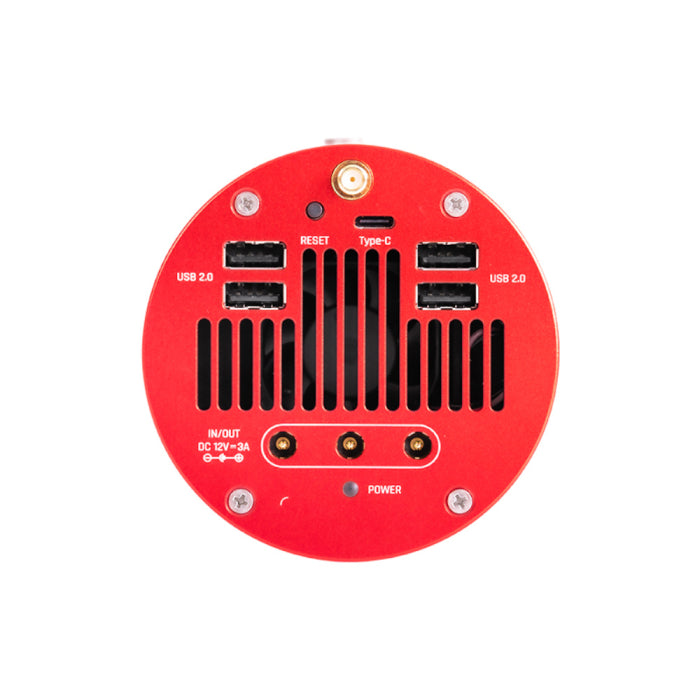

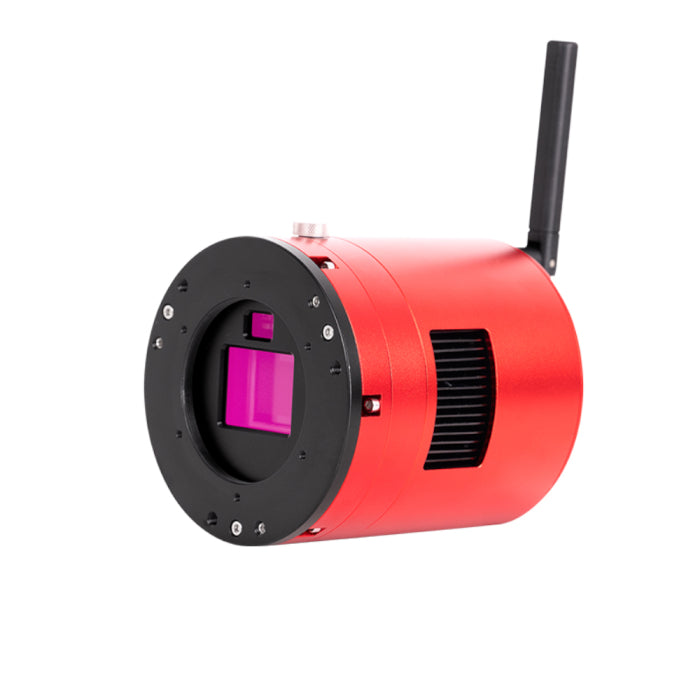

The ZWO ASI2600MM Air is an APS-C, cooled monochrome astronomy camera built around Sony’s IMX571 sensor. It pairs high resolution (26MP) and small pixels (3.76 µm) with a 16-bit ADC and two-stage TEC cooling for low-noise, high dynamic range imaging — and it includes ZWO’s “Air” platform (built-in ASIAIR functions) for wireless control and on-camera automation, making it an excellent choice for deep-sky astrophotography and narrowband imaging.
Compact and well-equipped for modern imaging trains, the ASI2600MM Air supports USB3.0 data transfer, M54 optical connection, and a short back-focus design. It also includes an integrated guide sensor (for the Duo/Air-style variants) so you can guide without a separate guide scope / OAG in many setups.
TECHNICAL SPECIFICATIONS
| Image Sensor | Sony IMX571 (APS-C) |
| Resolution | 6248 × 4176 (~26 MP) |
| Pixel Size | 3.76 µm |
| ADC | 16-bit |
| Full Well | ~50ke- (extended mode up to ~73ke-) |
| Read Noise | ~0.9 e- (low gain) — up to ~4.2 e- (high gain), depending on settings |
| Max Frame Rate | ~15 FPS (RAW8 at full resolution) |
| Cooling | Two-stage TEC; up to ~30–35°C below ambient |
| Back Focus | 17.5 mm (standard) |
| Connection | USB 3.0 (data), M54 thread optical interface |
| Dimensions | ~ Ø90 mm × 97 mm (varies slightly by build) |
| Weight (body) | ~ 760 g |
WHAT'S IN THE BOX?
- ZWO ASI2600MM Air camera body
- M54-M54 extenders / adapters (typical: 16.5 mm & 21 mm extenders)
- M54-to-M48 adapter
- USB 3.0 cable (2 m) and USB 2.0 cable(s)
- Quick start guide and hexagon wrench
- Protective cover / camera bag (varies by pack)
- Note: 12 VDC power supply is required for TEC cooler (not always included)
