ZWO ASI2400MC-P Cooled Color Camera
ZWO ASI2400MC-P Cooled Color Camera
SKU:SD-ZWO-ASI2400MC-P-CM780D4
Available Soon
Couldn't load pickup availability
Product Description

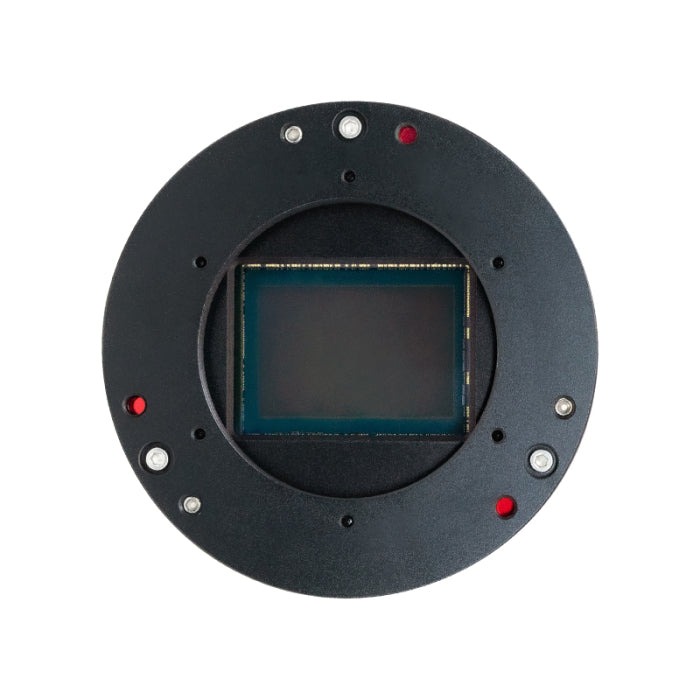

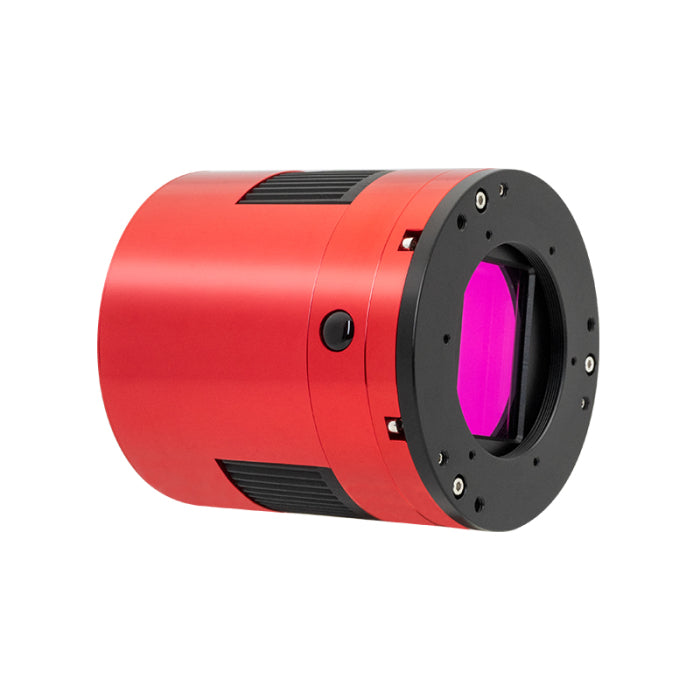

The ZWO ASI2400MC-P Cooled Color Camera is a full-frame one-shot color astronomy camera designed for detailed deep-sky astrophotography. It uses the Sony IMX410 back-illuminated CMOS sensor with a 36 × 24 mm full-frame format and 24 megapixel resolution, making it well suited for capturing wide fields of nebulae, galaxies, star clusters, and other deep-sky targets.
The large 4.63 μm pixels provide strong light-gathering capability, while the camera's high full-well capacity supports a broad dynamic range for astrophotography. Its color sensor allows users to capture RGB images without requiring separate LRGB filters.

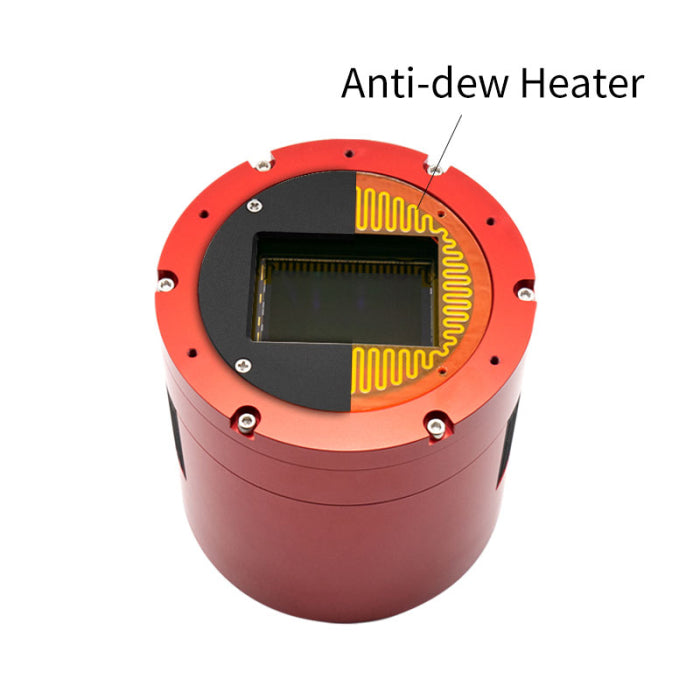

For long-exposure imaging, the ASI2400MC-P features two-stage TEC cooling, which helps reduce thermal noise and maintain cleaner images. The camera also includes an integrated dew heater to help reduce condensation around the optical window during imaging sessions.

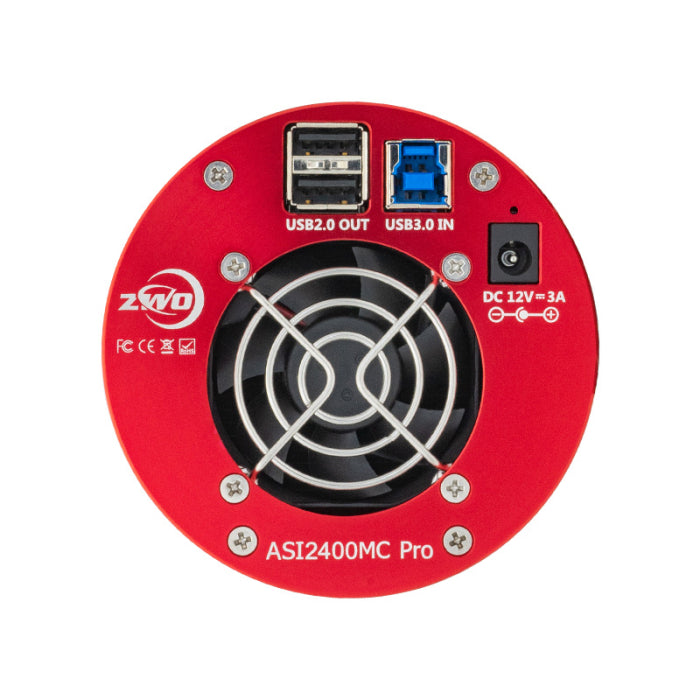

A USB 3.0 interface provides high-speed data transfer, while the camera's DDR3 memory buffer helps maintain stable image transmission. The camera is designed around a 55 mm back-focus configuration, making it easier to integrate into a suitable astrophotography imaging train.
Technical Specifications
| Specification | Details |
|---|---|
| Camera Type | Full-Frame Cooled Color Astronomy Camera |
| Sensor | Sony IMX410 BSI CMOS |
| Sensor Format | Full Frame |
| Sensor Size | 36 × 24 mm |
| Resolution | 6072 × 4042 |
| Total Resolution | 24 MP |
| Pixel Size | 5.94 μm |
| ADC | 14-bit |
| Peak Quantum Efficiency | ≥80% |
| Full-Well Capacity | 100 ke⁻ |
| Cooling | Two-stage TEC |
| Dew Heater | Integrated |
| Buffer Memory | DDR3 |
| Interface | USB 3.0 |
| Shutter | Rolling Shutter |
| Back Focus | 55 mm |
| Camera Type | One-Shot Color (OSC) |
What Comes in the Box?
- ZWO ASI2400MC-P Camera Body
- USB 3.0 Cable
- Spacers and adapters for 55 mm back focus
- Camera accessories
- Protective accessories
- Quick Start Guide
Why Buy from Sky Deep Co.?
Sky Deep Co. provides genuine astronomy equipment for astrophotographers and astronomy enthusiasts in Pakistan. The ZWO ASI2400MC-P is suitable for users looking for a large-format cooled color camera for detailed deep-sky imaging.
Sky Deep Co. is an authorized ZWO and Celestron partner in Pakistan, providing genuine astronomy products along with local product guidance, applicable warranty support, and after-sales assistance. Customers can also get guidance on selecting compatible telescopes, filters, mounts, adapters, and other astrophotography accessories.
FAQs
Is the ASI2400MC-P a full-frame camera?
Yes. It uses a 36 × 24 mm full-frame Sony IMX410 sensor.
Is the ZWO ASI2400MC-P suitable for deep-sky imaging?
Yes. Its full-frame sensor, large pixels, high full-well capacity, and two-stage TEC cooling make it suitable for deep-sky astrophotography.
Does the ASI2400MC-P need RGB filters?
No. It is a one-shot color camera, so it can capture color images without separate RGB or LRGB filters.
Does the ASI2400MC-P have active cooling?
Yes. It uses a two-stage TEC cooling system to reduce thermal noise during longer exposures.
What sensor is used in the ASI2400MC-P?
The camera uses the Sony IMX410 back-illuminated full-frame CMOS sensor with 24 MP resolution.
