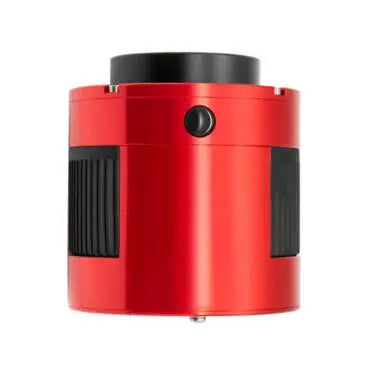

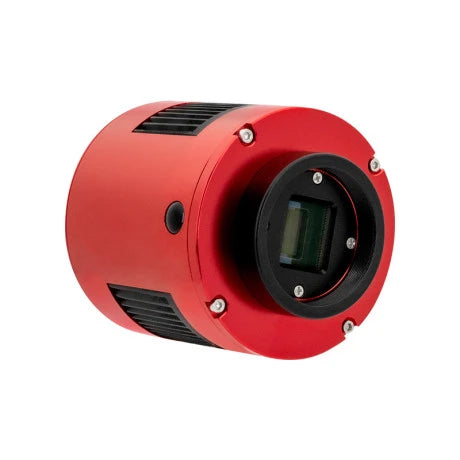

ZWO ASI183MM-P Cooled Monochrome CMOS Astronomy Camera
ZWO ASI183MM-P Cooled Monochrome CMOS Astronomy Camera
Regular price
Rs.284,715 PKR
Regular price
Sale price
Rs.284,715 PKR
SKU:ZWO-ASI183MM-P
In stock
Quantity
Couldn't load pickup availability
PRODUCT DESCRIPTION
The ZWO ASI183MM-P is a cooled monochrome astronomical camera featuring the exceptional **Sony IMX183CLK-J** sensor. With a two-stage TEC cooling system and an integrated DDR3 buffer, it delivers ultra-low noise and superior sensitivity—perfect for demanding deep-sky and high-resolution imaging.
The Pro-grade cooling design reduces dark current significantly, ensuring clean exposures even during prolonged sessions under varying temperatures.
TECHNICAL SPECIFICATIONS
| Specification | Value |
|---|---|

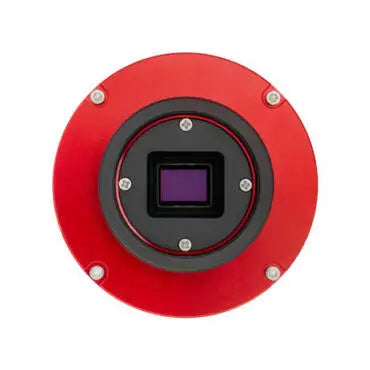

| Sensor | Sony IMX183CLK-J, 1? mono CMOS |
| Resolution | 5496 × 3672 (~20.18 MP) |
| Pixel Size | 2.4 µm |
| Peak QE | ~84 % |
| Read Noise | 1.6 e? |
| Full Well Capacity | ~15 ke? |
| Dynamic Range | ~12 stops |
| Shutter | Rolling |
| Exposure Range | 32 µs – 2000 s |

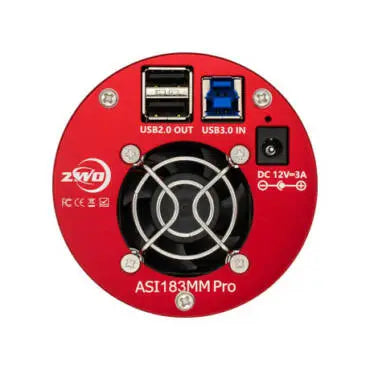

| Interface | USB 3.0 + USB 2.0 HUB + ST4 |
| DDR3 Buffer | 256 MB |
| Cooling | Two-stage TEC (?T up to –45 °C) |
| Back Focus | 6.5 mm |
| Dimensions / Weight | Ø78 mm; ~410 g |
WHAT’S IN THE BOX?
- ZWO ASI183MM-P Camera Body
- USB 3.0 Cable & 2 × USB 2.0 Cables
- 1.25? Nosepiece & M42/M48 Adapters
- Dust Caps
- Quick Start Guide
