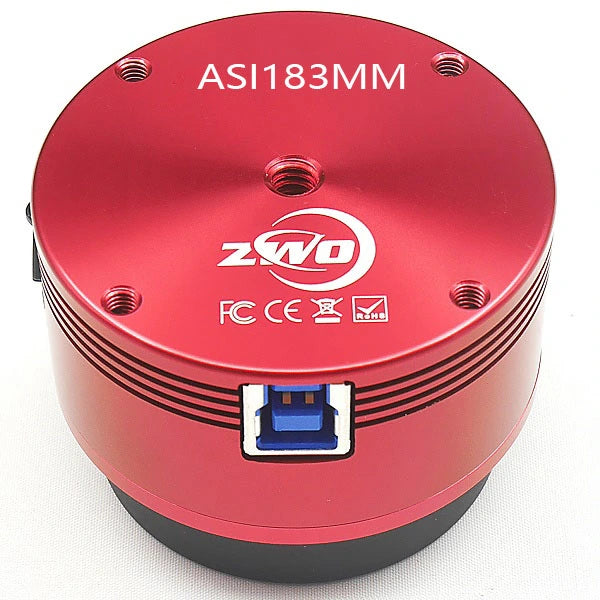

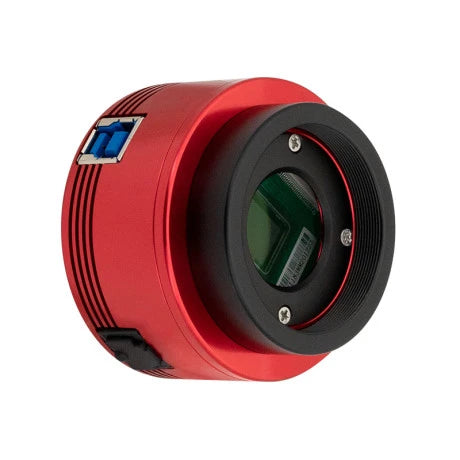

ZWO ASI183MM Monochrome CMOS Astronomy Camera (Uncooled)
ZWO ASI183MM Monochrome CMOS Astronomy Camera (Uncooled)
SKU:ZWO-ASI183MM
Available Soon
Couldn't load pickup availability
Product Description
The ZWO ASI183MM Monochrome CMOS Astronomy Camera is a high-resolution uncooled astronomy camera designed for detailed planetary, lunar, solar, and deep-sky imaging. It features Sony's IMX183CLK-J back-illuminated monochrome CMOS sensor with 5496 × 3672 resolution, approximately 20.18 megapixels, and 2.4 μm pixels.
With a peak quantum efficiency of approximately 84%, low read noise, and a 15Ke full-well capacity, the ASI183MM provides strong sensitivity and detailed image capture. Its monochrome sensor is particularly useful for astrophotographers working with LRGB and narrowband filters.
The camera supports up to 19 FPS at full resolution and uses USB 3.0 for high-speed image transfer. As an uncooled model, it offers a simpler and more portable setup without requiring a separate cooling power supply.
Technical Specifications
| Specification | Details |
|---|---|
| Model | ZWO ASI183MM |
| Sensor | Sony IMX183CLK-J |
| Sensor Type | Monochrome CMOS |
| Sensor Format | 1-inch |
| Resolution | 5496 × 3672 |
| Megapixels | Approx. 20.18 MP |
| Pixel Size | 2.4 μm |
| Sensor Size | 13.2 × 8.8 mm |
| Diagonal | 15.9 mm |
| Peak QE | Approx. 84% |
| Read Noise | 1.6e⁻ @ 30 dB Gain |
| Full Well Capacity | 15Ke⁻ |
| Dynamic Range | Approx. 12 stops |
| ADC | 12-bit / 10-bit |
| Maximum Frame Rate | 19 FPS |
| Shutter | Rolling Shutter |
| Exposure Range | 32 μs – 2000 s |
| Cooling | Uncooled |
| Interface | USB 3.0 / USB 2.0 |
| Guide Port | ST4 |
| Back Focus | 6.5 mm |
| Weight | Approx. 140 g |
| Best For | Planetary, Lunar, Solar & Deep-Sky Imaging |
What Comes in the Box?
- ZWO ASI183MM Monochrome Camera
- USB 3.0 Cable
- USB 2.0 Cable
- ST4 Guide Cable
- 1.25" Nosepiece
- 2" Adapter
- M42 × 0.75 Adapter
- Dust Cap
- Quick Start Guide
Why Buy the ZWO ASI183MM from Sky Deep Co.?
Choose the ZWO ASI183MM from Sky Deep Co. for genuine ZWO astronomy equipment backed by local product guidance and support in Pakistan. Sky Deep is an authorized ZWO dealer in Pakistan, offering genuine astronomy products, applicable warranty support, and after-sales assistance.
Sky Deep specializes in astronomy and astrophotography equipment, helping customers choose cameras, filters, telescopes, and accessories according to their imaging goals and existing setup. The ASI183MM is a practical choice for astrophotographers who want the sensitivity and flexibility of a monochrome sensor without the added complexity of a cooled camera.
FAQs
Is the ZWO ASI183MM a monochrome camera?
Yes. It uses Sony's IMX183CLK-J monochrome CMOS sensor.
Is the ASI183MM cooled?
No. The ASI183MM is the uncooled version of the ASI183 monochrome camera series.
What is the resolution of the ASI183MM?
It provides 5496 × 3672 resolution, delivering approximately 20.18 megapixels.
Can the ASI183MM be used for narrowband imaging?
Yes. Its monochrome sensor is well suited to LRGB and narrowband imaging with compatible filters.
What is the maximum frame rate of the ASI183MM?
The ASI183MM can reach up to 19 FPS at full resolution.
