ZWO ASI174MM USB 3.0 Monochrome CMOS Astronomy Camera
ZWO ASI174MM USB 3.0 Monochrome CMOS Astronomy Camera
SKU:SD-ZWO-ASI174MM-CM790N4
Available Soon
Couldn't load pickup availability
Product Description

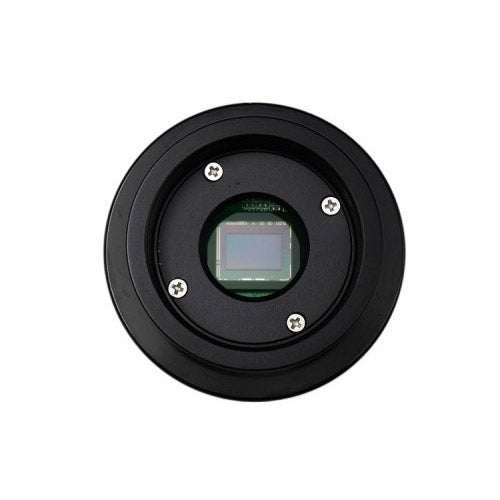

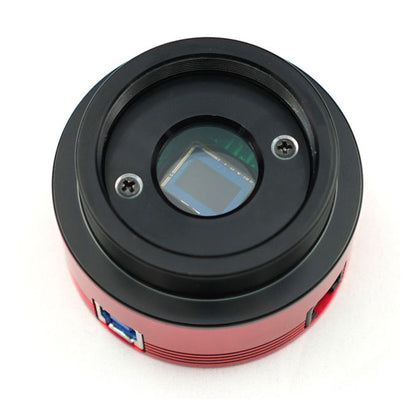

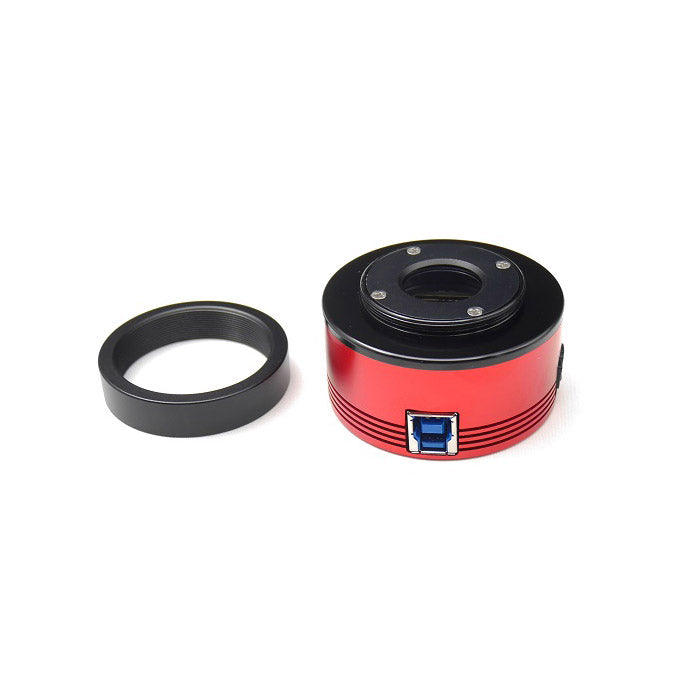

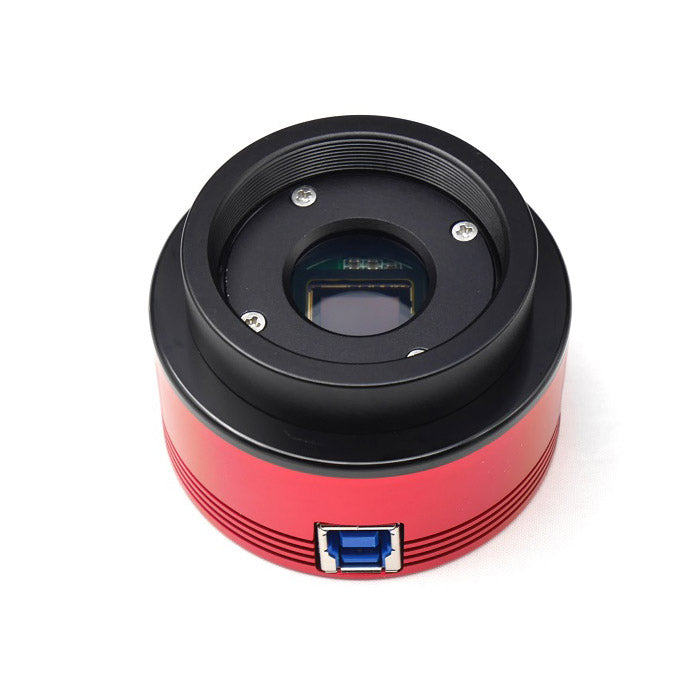

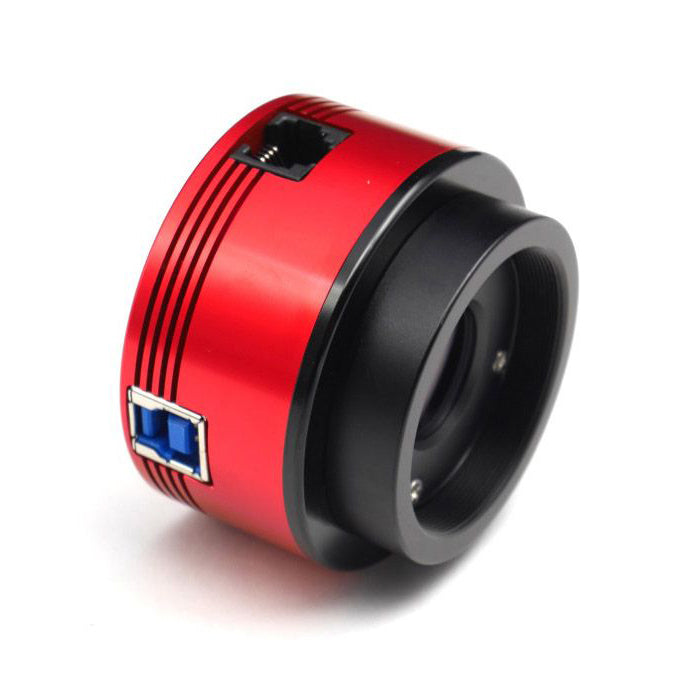

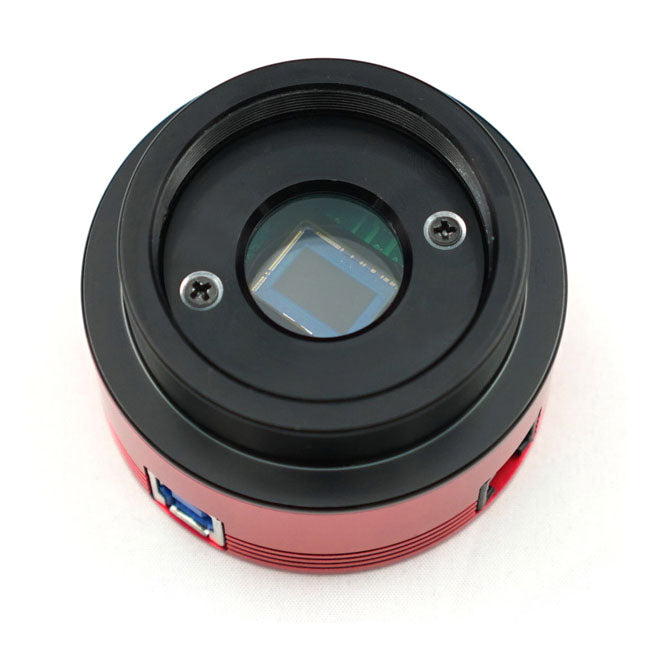

The ZWO ASI174MM is a high-speed monochrome astronomy camera designed for solar, lunar, and planetary imaging. It features a Sony IMX174 monochrome CMOS sensor with 1936 × 1216 resolution and large 5.86 μm pixels.
Its Pregius global shutter captures all pixels simultaneously, helping reduce distortion when imaging fast-moving solar or lunar details. The camera also supports high-speed acquisition through USB 3.0, making it a strong choice for planetary imaging, solar work, and bright deep-sky EAA.

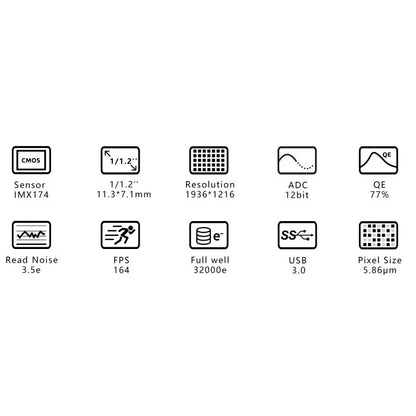

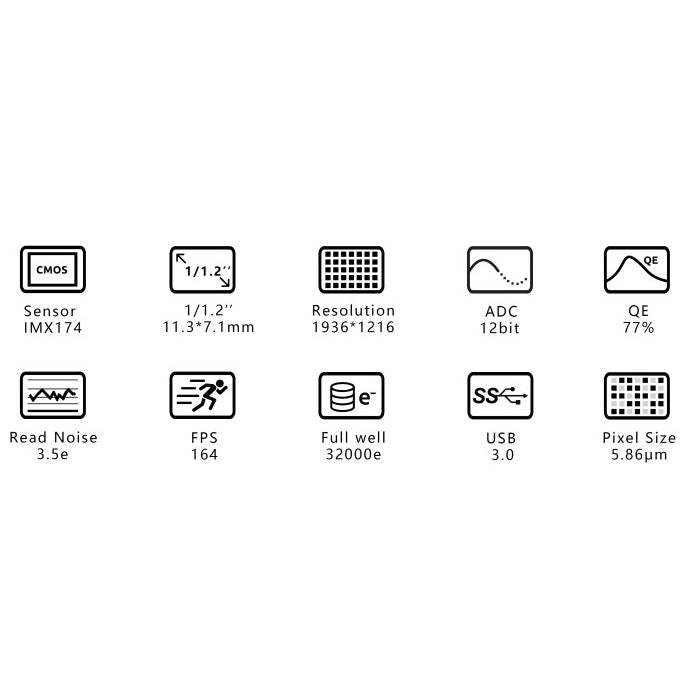

Technical Specifications
| Specification | Details |
|---|---|
| Sensor | Sony IMX174 Monochrome CMOS |
| Sensor Size | 1/1.2" |
| Sensor Dimensions | 11.3 × 7.1 mm |
| Resolution | 1936 × 1216 |
| Megapixels | 2.35 MP |
| Pixel Size | 5.86 μm |
| Shutter | Global Shutter |
| ADC | 12-bit / 10-bit |
| Read Noise | 3.5 e⁻ |
| Full Well Capacity | 32 Ke⁻ |
| Peak QE | Approx. 77% |
| Interface | USB 3.0 |
| Maximum FPS | Up to 164.5 fps at 10-bit |
| Main Uses | Solar, Lunar, Planetary & EAA |
What Comes in the Box?

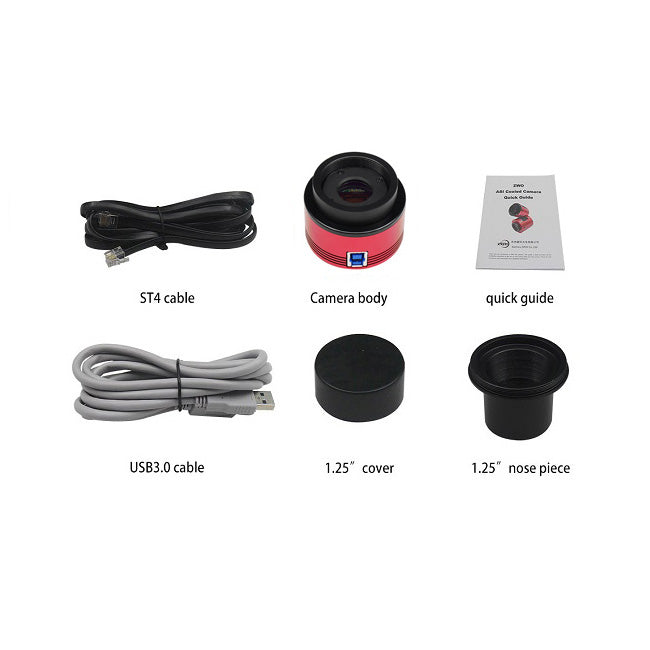

The ZWO ASI174MM package includes the ASI174MM camera body, USB 3.0 cable, 1.25" nosepiece, dust caps, and quick-start guide.
Why Buy from Sky Deep?
Sky Deep Co is the authorized ZWO and Celestron vendor in Pakistan, offering genuine astronomy equipment with local product guidance and warranty support. Customers can get help choosing suitable cameras, telescopes, filters, mounts, and accessories according to their imaging requirements. Sky Deep also provides nationwide delivery and after-sales technical assistance for compatible equipment.
Sky Deep Co is based in Lahore and supplies astronomy equipment through authorized international dealerships. The company is the sole authorized vendor of ZWO and Celestron in Pakistan and is operated by members of the local astronomy community. Customers receive genuine products, official warranty facilitation, local technical support, and guidance with camera setup, mount configuration, software, and compatibility. Sky Deep also has more than 25 years of combined astronomy experience across its team.
FAQs
What is the ZWO ASI174MM used for?
The ASI174MM is designed for high-speed solar, lunar, and planetary imaging, as well as bright deep-sky EAA.
Does the ASI174MM have a global shutter?
Yes. Its Sony IMX174 sensor uses Pregius global shutter technology, which helps reduce distortion when capturing moving objects.
What is the resolution of the ASI174MM?
The camera provides 1936 × 1216 resolution, equivalent to approximately 2.35 megapixels.
What is the pixel size of the ASI174MM?
The ASI174MM has large 5.86 μm pixels, which provide good sensitivity for solar, lunar, planetary, and deep-sky imaging.
What is the maximum frame rate?
The ASI174MM can reach up to 164.5 fps at 10-bit ADC in high-speed mode at full resolution.
