ZWO ASI174MM Mini Monochrome Astronomy Camera
ZWO ASI174MM Mini Monochrome Astronomy Camera
SKU:ZWO-ASI174MINI
Available Soon
Couldn't load pickup availability
Product Description

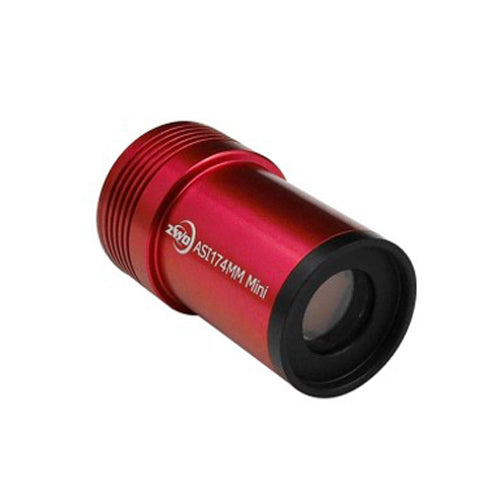

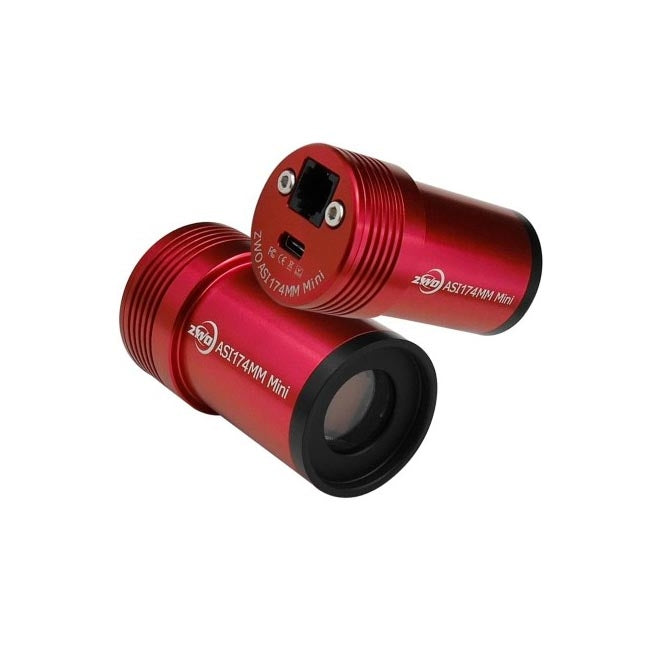

The ZWO ASI174MM Mini Monochrome Astronomy Camera is a compact monochrome camera designed for planetary imaging and precise autoguiding. It features a 1/1.2-inch Sony IMX249 CMOS sensor with a resolution of 1936 × 1216 pixels and 5.86 μm pixel size, providing a useful combination of sensitivity, dynamic range, and image detail.
With 12-bit ADC and a peak quantum efficiency of approximately 77%, the ASI174MM Mini can capture fine details while maintaining strong sensitivity. Its larger sensor area also makes it suitable for guiding applications where a wider field of view can be beneficial.

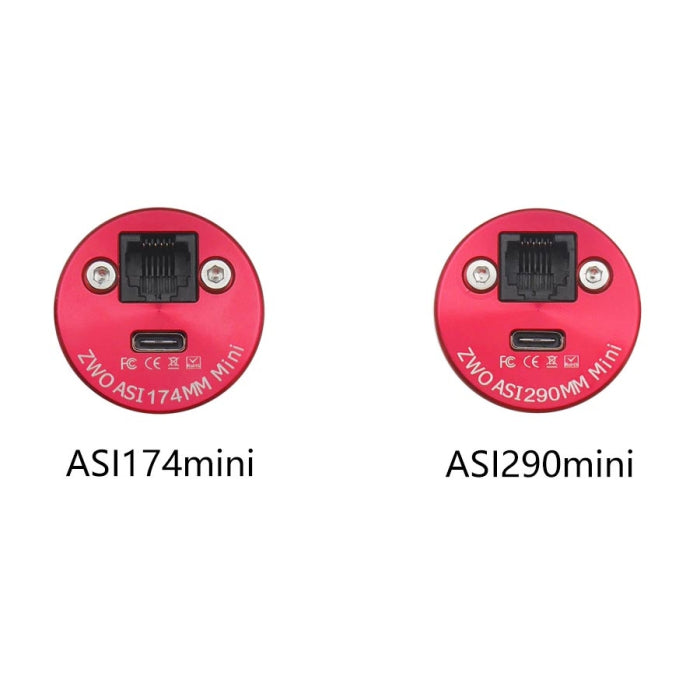

The camera uses a USB 2.0 Type-C port for data connection and includes an ST4 guiding port, allowing it to connect directly to a compatible mount for autoguiding. Its compact Mini design also allows it to reach focus in a position similar to an eyepiece, making it convenient for telescope guiding setups.
For astrophotographers looking for a dedicated monochrome camera for planetary imaging, lunar imaging, and telescope guiding, the ASI174MM Mini offers a lightweight and practical solution.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | ZWO ASI174MM Mini |
| Camera Type | Monochrome Astronomy Camera |
| Sensor | Sony IMX249 |
| Sensor Size | 1/1.2" |
| Sensor Dimensions | 11.3 × 7.1 mm |
| Resolution | 1936 × 1216 |
| Pixel Size | 5.86 μm × 5.86 μm |
| ADC | 12-bit |
| Peak QE | 77% |
| Shutter | Global Shutter |
| Maximum FPS | 18.4 FPS at full resolution |
| Exposure Range | 32 μs – 2000 s |
| Read Noise | 3.5–6.0 e |
| Interface | USB 2.0 Type-C |
| Guiding Port | ST4 |
| Best For | Planetary Imaging & Guiding |
What Comes in the Box?
- ZWO ASI174MM Mini Monochrome Camera
- USB Type-C Cable
- ST4 Guiding Cable

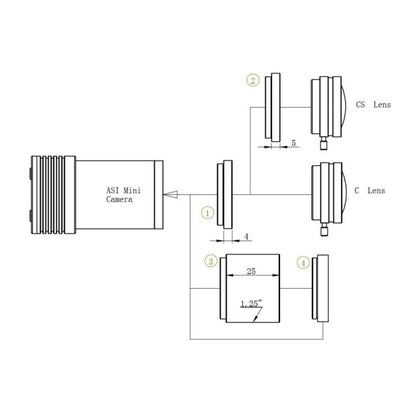

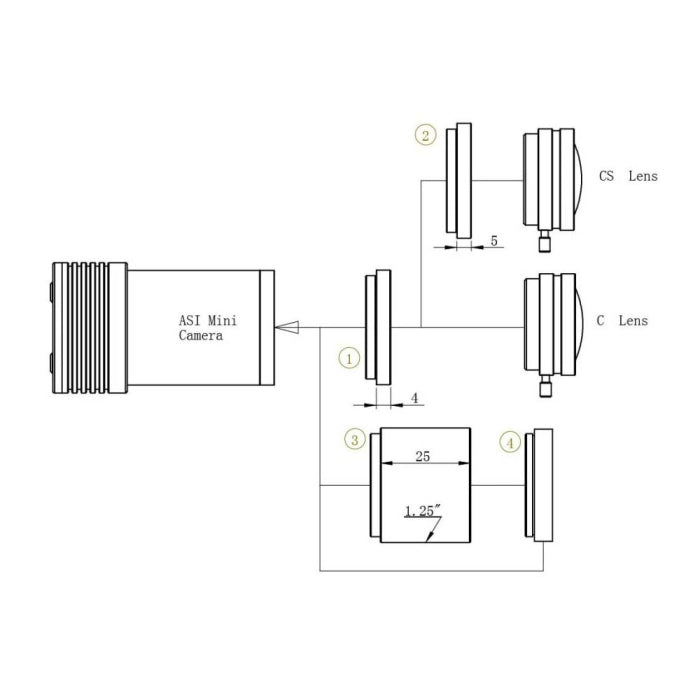

- 1.25" Nosepiece
- M42 Adapter
- Protective Cap
- Required adapters/accessories as supplied by ZWO
Why Buy from Sky Deep Co.?
Sky Deep Co. is an authorized ZWO dealer in Pakistan, providing genuine ZWO astronomy equipment with local support and guidance. The ASI174MM Mini is available through Sky Deep for astrophotographers looking for a dedicated monochrome guiding or planetary imaging camera.
With free gear consultation, nationwide delivery, and local customer support, Sky Deep can also help you check camera compatibility with your telescope, guide scope, mount, and existing astrophotography setup.
FAQs
What is the ZWO ASI174MM Mini used for?
The ASI174MM Mini is designed primarily for planetary imaging and telescope autoguiding. Its monochrome sensor and relatively large sensor area make it suitable for both applications.
What sensor does the ASI174MM Mini use?

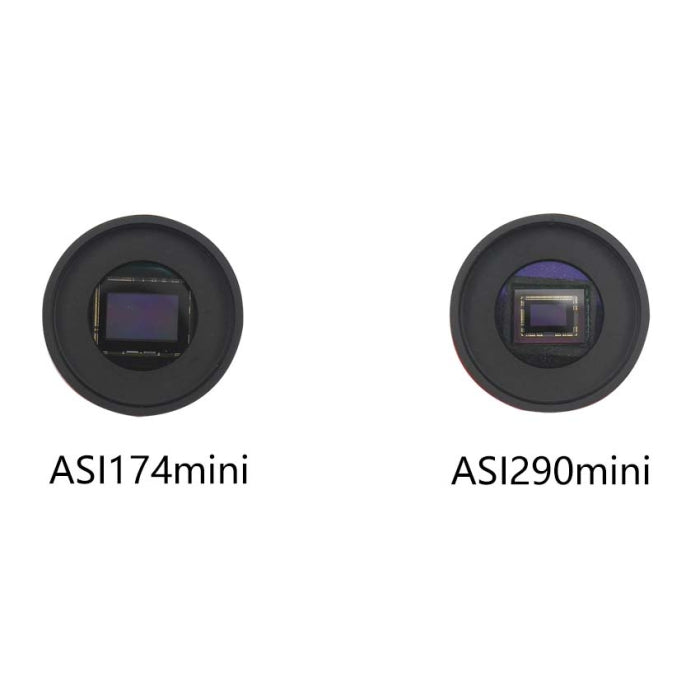

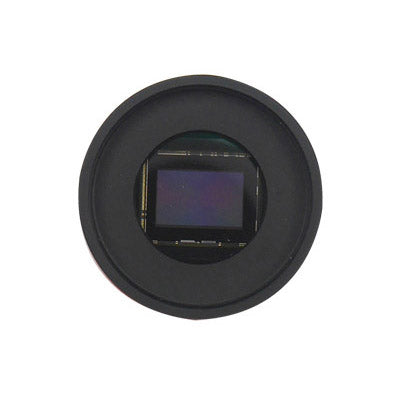

The ASI174MM Mini uses a Sony IMX249 1/1.2-inch monochrome CMOS sensor with 1936 × 1216 resolution and 5.86 μm pixels.
Does the ASI174MM Mini support autoguiding?
Yes. It includes an ST4 port, allowing it to connect directly to a compatible telescope mount for guiding.
Is the ASI174MM Mini suitable for planetary imaging?
Yes. ZWO specifically positions the ASI174MM Mini for planetary imaging, in addition to guiding. Its monochrome sensor can also be used with suitable filters for detailed lunar and planetary imaging.

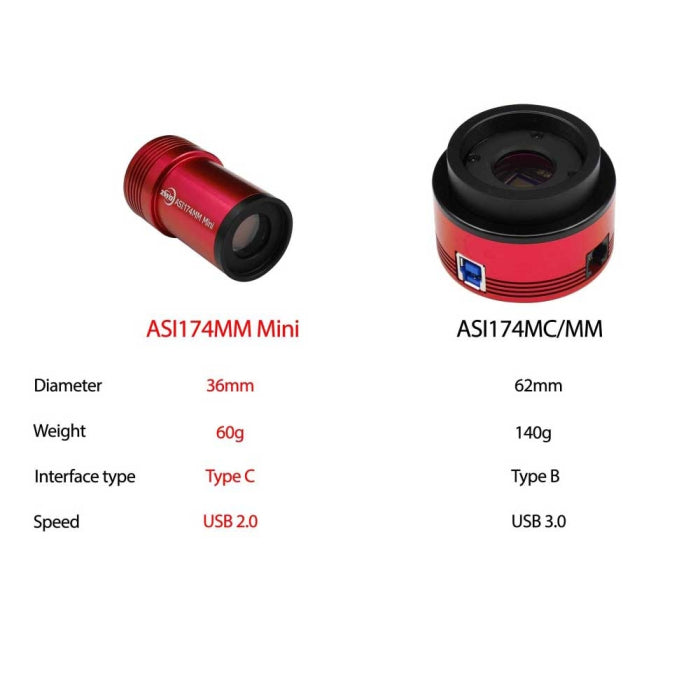

What is the difference between ASI174MM and ASI174MM Mini?
The ASI174MM Mini is a more compact and lightweight design intended particularly for guiding and planetary imaging. ZWO notes that the Mini can reach focus at approximately the same position as an eyepiece, making it convenient for guide-scope setups.
