ZWO

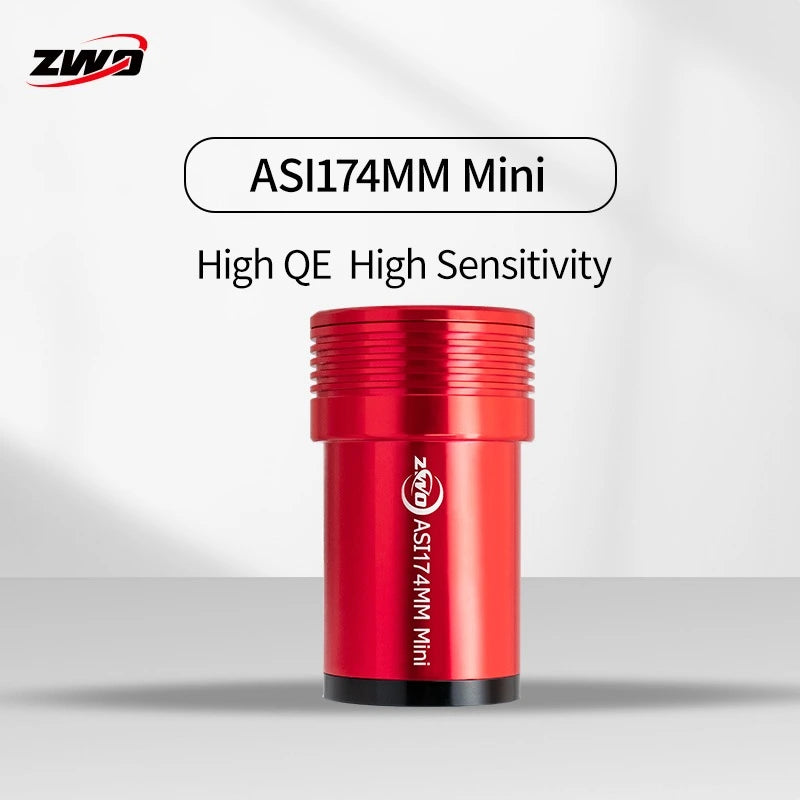

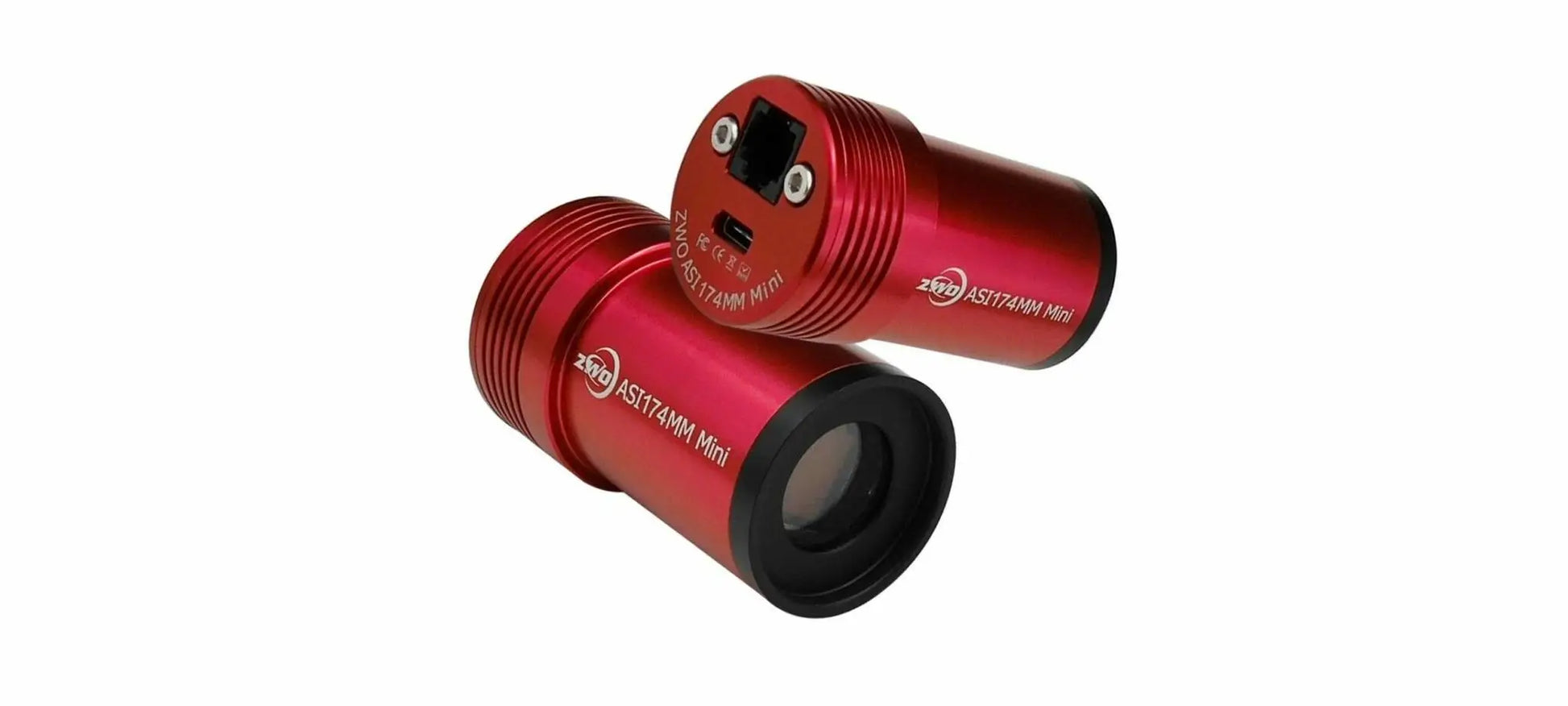

ZWO ASI174 Mini Monochrome Camera
ZWO ASI174 Mini Monochrome Camera
SKU:ZWO-ASI174Mini
Available Soon
Couldn't load pickup availability
Product Description
The ZWO ASI174MM Mini Monochrome Camera is a compact and lightweight astronomy camera designed for accurate guiding and high-performance planetary imaging. It features a Sony IMX249 1/1.2-inch monochrome sensor with a 1936 × 1216 resolution and 5.86 μm pixels, delivering a wide field of view that makes finding guide stars easier, especially with off-axis guiders. Its 12-bit ADC, low read noise, and approximately 77% peak QE provide strong sensitivity and detailed imaging performance.
The ASI174MM Mini is particularly useful for OAG setups because its larger sensor provides a wider field of view than smaller ZWO Mini guide cameras. Its compact design can also reach focus at approximately the same position as an eyepiece, making setup easier. The camera includes an ST4 guide port for direct connection to a compatible mount and a USB Type-C interface.
Technical Specifications
| Specification | Details |
|---|---|
| Camera Model | ZWO ASI174MM Mini |
| Sensor | Sony IMX249 Monochrome CMOS |
| Sensor Size | 1/1.2" |
| Sensor Dimensions | 11.3 × 7.1 mm |
| Resolution | 1936 × 1216 |
| Pixel Size | 5.86 μm |
| ADC | 12-bit |
| Read Noise | 3.5e |
| Full Well | 32Ke |
| Peak QE | Approx. 77% |
| Interface | USB 2.0 Type-C |
| Guide Port | ST4 |
| Camera Type | Monochrome |
| Best Uses | Guiding, planetary imaging, OAG |
What's in the Box?
- ZWO ASI174MM Mini Monochrome Camera
- USB Type-C cable
- ST4 guide cable
- M28.5-CS adapter
- 1.25" extender
- Protective accessories
Why Buy the ZWO ASI174MM Mini from Sky Deep Co.?
Choose the ZWO ASI174MM Mini from Sky Deep Co. for genuine ZWO equipment, local support, and astronomy-focused guidance in Pakistan. Sky Deep Co. is an authorized ZWO dealer/partner in Pakistan, helping customers access genuine ZWO products with reliable local assistance. Our team can also help you understand camera compatibility, guiding setups, OAG configurations, and the accessories required for your telescope system.
As an astronomy-focused retailer, Sky Deep Co. provides product guidance before purchase and support after purchase, helping both beginners and experienced astrophotographers select equipment that fits their setup.
FAQs
1. Is the ZWO ASI174MM Mini a monochrome camera?
Yes. It uses a monochrome Sony IMX249 CMOS sensor.
2. Is the ASI174MM Mini good for guiding?
Yes. Its large 1/1.2" sensor provides a wider field of view, making guide-star acquisition easier, especially with OAG setups.
3. Can I use the ASI174MM Mini for planetary imaging?
Yes. ZWO specifically lists planetary imaging among its intended applications.
4. Does the ASI174MM Mini have an ST4 port?
Yes. The ST4 port allows direct connection to a compatible mount's auto-guiding port.
5. What makes the ASI174MM Mini useful for OAG?
Its larger 1/1.2" sensor provides a wider field of view, which can make finding suitable guide stars easier with an off-axis guider.
