ZWO ASI120MM Mini Monochrome Astronomy Camera
ZWO ASI120MM Mini Monochrome Astronomy Camera
SKU:SD-ZWO-ASI120MM-MINI-CM787K1
Low stock: 3 left
Couldn't load pickup availability
Product Description

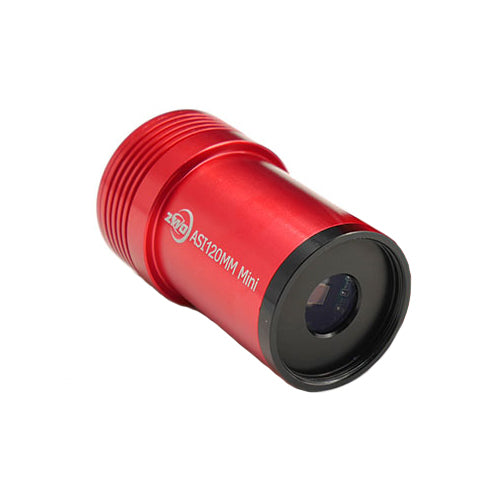

The ZWO ASI120MM Mini Monochrome Astronomy Camera is a compact and affordable camera designed primarily for autoguiding and entry-level planetary imaging. It uses a sensitive AR0130CS monochrome CMOS sensor with a 1.2 MP resolution and 3.75 μm pixels.
Its lightweight Mini design makes it easy to use with guide scopes and off-axis guiders. The camera also offers a wide focusing range, making it practical for setups where precise guide-camera focus is important. With 12-bit ADC, low read noise, and a peak QE of almost 80%, the ASI120MM Mini can capture guide stars effectively while also supporting lunar and planetary imaging.
Technical Specifications
| Specification | Value |
|---|---|
| Sensor | AR0130CS Monochrome CMOS |
| Sensor Size | 1/3" |
| Resolution | 1280 × 960 |
| Total Pixels | 1.2 MP |
| Pixel Size | 3.75 μm |
| Image Area | 4.8 × 3.6 mm |
| ADC | 12-bit |
| Peak QE | Almost 80% |
| Read Noise | 4.0 e- |
| Maximum FPS | 35 FPS |
| Shutter | Rolling Shutter |
| Exposure Range | 64 μs–2000 s |
| Interface | USB 2.0 Type-C |
| Weight | Approx. 60 g |
| Main Applications | Autoguiding, Lunar and Planetary Imaging |
What Comes in the Box?
- ZWO ASI120MM Mini Camera
- USB Cable
- 1.25" Nosepiece
- Dust Caps
- Quick Start Guide
Why Buy from Sky Deep?
Sky Deep offers the ZWO ASI120MM Mini Monochrome Astronomy Camera for astronomers in Pakistan looking for a compact and reliable guiding solution. The camera is suitable for guide scopes, off-axis guiding, and entry-level planetary imaging. Sky Deep provides product guidance and local support to help you choose and set up the right astronomy equipment for your imaging system.
Sky Deep is an authorized ZWO and Celestron dealer in Pakistan, offering genuine astronomy equipment with local product guidance, applicable warranty support, and after-sales assistance. Customers can also get free gear consultation to select compatible cameras, telescopes, mounts, and accessories for their astrophotography setup.
FAQs
Is the ZWO ASI120MM Mini suitable for autoguiding?
Yes. The ASI120MM Mini is specifically designed for guiding and works well with guide scopes and off-axis guiders.
Can the ASI120MM Mini be used for planetary imaging?
Yes. Its monochrome sensor, 3.75 μm pixels, and up to 35 FPS at full resolution make it suitable for entry-level lunar and planetary imaging.
What sensor does the ASI120MM Mini use?
It uses the AR0130CS 1/3" monochrome CMOS sensor with a 1280 × 960 resolution.
Does the ASI120MM Mini use USB 3.0?
No. The ASI120MM Mini uses a USB 2.0 Type-C interface. The compact design helps keep the camera lightweight at approximately 60 g.
Is the ASI120MM Mini compatible with an off-axis guider?
Yes. Its compact Mini body and extended focusing range make it well suited for off-axis guiding setups.
