ZWO AM3N Harmonic Equatorial Mount
ZWO AM3N Harmonic Equatorial Mount
SKU:ZWO-AM3N
Low stock: 1 left
Couldn't load pickup availability
Product Description

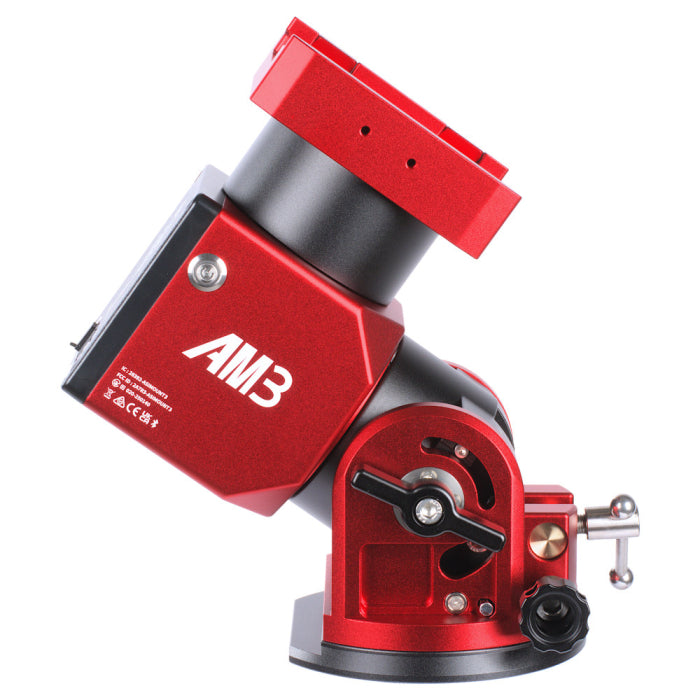

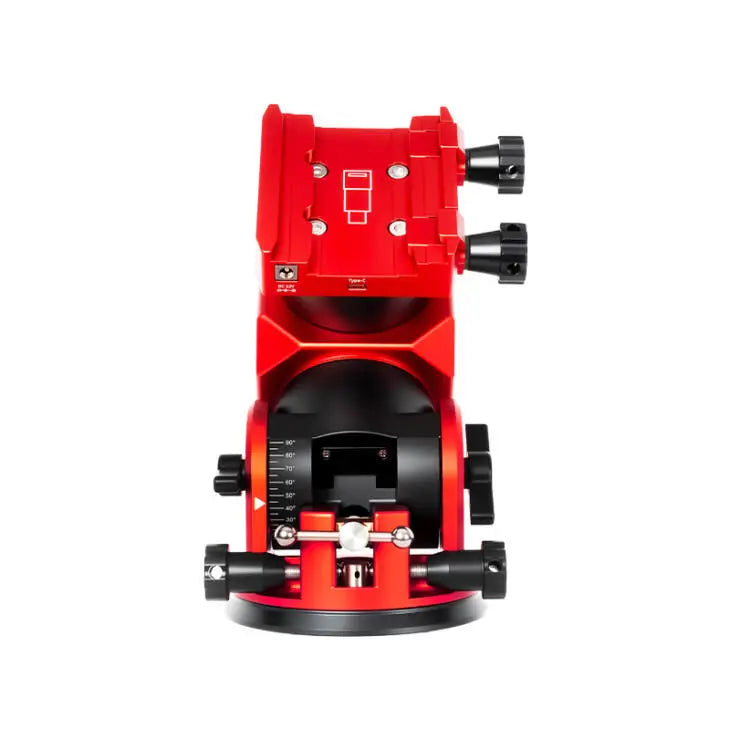

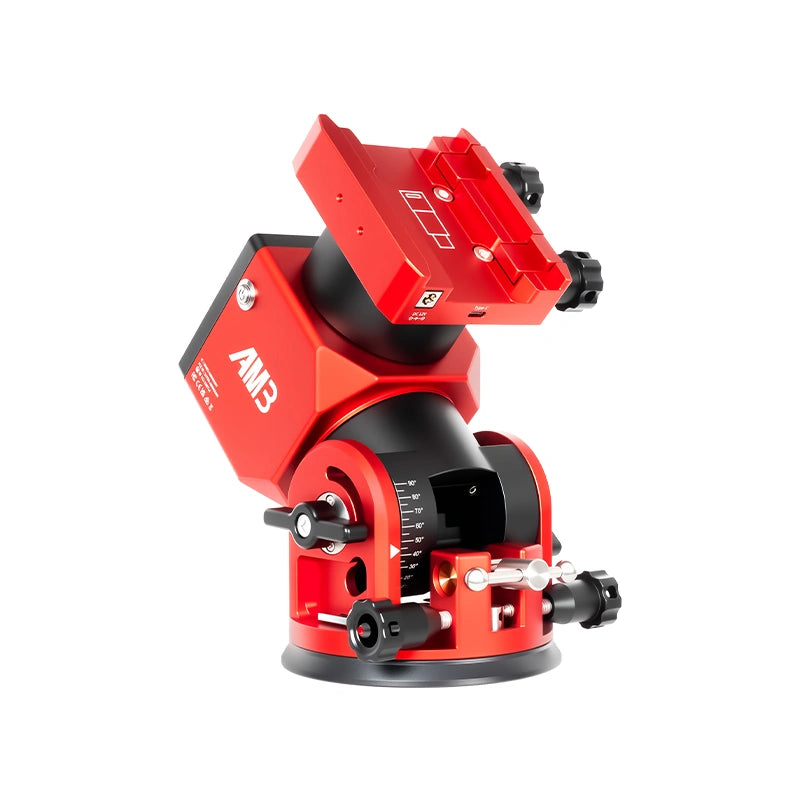

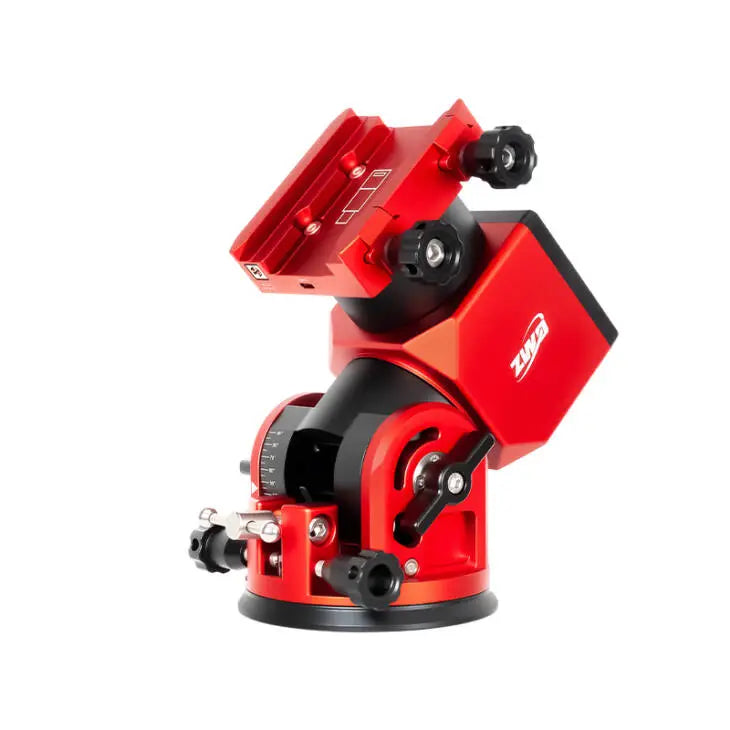

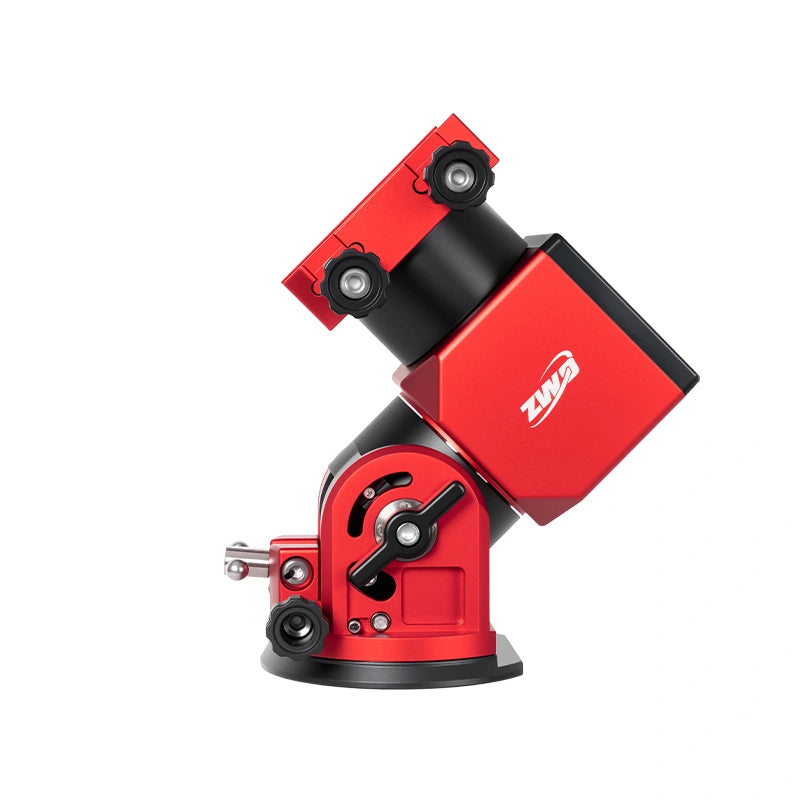

The ZWO AM3N Harmonic Equatorial Mount is a compact and portable strain wave mount designed for astrophotography and astronomical observation. Its harmonic drive system provides precise motion and tracking while keeping the mount lightweight and easy to transport.
With a payload capacity of up to 8 kg without a counterweight and 13 kg with a counterweight, the AM3N can support a wide range of lightweight telescopes and imaging setups. It can operate in both Equatorial and Alt-Azimuth modes, making it versatile for astrophotography as well as visual observation.
The AM3N uses a strain wave gear combined with a synchronous belt drive and a 300:1 reduction ratio. Its built-in Wi-Fi and Bluetooth connectivity allow wireless control from compatible devices, while integration with ZWO ASIAIR, ASCOM, and INDI makes it well suited to modern astrophotography workflows.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | ZWO |
| Model | AM3N |
| Mount Type | Strain Wave Harmonic Drive Mount |
| Mount Mode | Equatorial / Alt-Azimuth |
| Drive System | Strain Wave Gear + Synchronous Belt |
| Reduction Ratio | 300:1 |
| Payload Capacity | 8 kg without counterweight / 13 kg with counterweight |
| Mount Weight | 4.1 kg |
| Periodic Error | < ±15 arcseconds |
| Altitude Adjustment | 0°–90° |
| Azimuth Adjustment | ±6° |
| Dovetail Saddle | Dual Losmandy & Vixen |
| Counterweight Thread | M12 × 1.75 |
| Maximum Slew Speed | 6°/second |
| Resolution | 0.17 arcseconds |
| Power Input | 12V DC, ≥3A |
| Communication | USB, Wi-Fi & Bluetooth |
| Autoguide Port | ST4 |
| Control Compatibility | ASIAIR, ASCOM & INDI |
| Operating Mode | Equatorial / Alt-Azimuth |
| Recommended Counterweight | Up to 5 kg |
What Comes in the Box?
- 1 × ZWO AM3N Harmonic Equatorial Mount
- 1 × AC Power Adapter
- 1 × Tripod Adapter Plate
- Cables and Accessories
- User Manual
The exact package contents may vary by bundle, so customers should check the selected product configuration before ordering.
Why Buy from Sky Deep Co.?
Sky Deep Co. is the authorized ZWO dealer in Pakistan, offering genuine ZWO astronomy equipment with local product guidance, applicable manufacturer warranty support, and after-sales assistance. Buying the ZWO AM3N through an authorized local dealer gives astrophotographers confidence in product authenticity and access to knowledgeable support when selecting compatible tripods, counterweights, cameras, and other ZWO accessories.
FAQs
What is the payload capacity of the ZWO AM3N?
The AM3N supports up to 8 kg without a counterweight and up to 13 kg with a counterweight.
Can the ZWO AM3N be used in Alt-Azimuth mode?
Yes. The AM3N supports both Equatorial and Alt-Azimuth modes, making it suitable for astrophotography and visual observation.
Does the ZWO AM3N support ASIAIR?
Yes. The AM3N is designed to work with ZWO ASIAIR and also supports ASCOM and INDI platforms.
How much does the ZWO AM3N weigh?
The AM3N mount head weighs approximately 4.1 kg (9.04 lbs).
What type of drive does the ZWO AM3N use?
The AM3N uses a strain wave gear system combined with a synchronous belt drive, with a 300:1 reduction ratio for precise motion control.
