William Optics RedCat 51 Gen 3 APO f/4.9 Refracting Telescope with WIFD
William Optics RedCat 51 Gen 3 APO f/4.9 Refracting Telescope with WIFD
SKU:WYO-L-RC51RDIII
Available Soon
Couldn't load pickup availability
Product Description
The William Optics RedCat 51 Gen 3 is a compact apochromatic refractor designed for wide-field astrophotography. Its four-element Petzval optical design, fast f/4.9 focal ratio, and WIFD internal focusing system deliver sharp, flat-field imaging across a wide range of celestial targets. Compatible with full-frame and APS-C cameras, it supports ZWO EAF electronic focusing for a streamlined imaging setup.
Technical Specifications
|
Specification |
Details |
|---|---|
|
Brand |
William Optics |
|
Model |
RedCat 51 Gen 3 WIFD |
|
Optical Design |
4-element Petzval APO refractor |
|
Aperture |
51 mm |
|
Focal Length |
250 mm |
|
Focal Ratio |
f/4.9 |
|
Image Circle |
48 mm |
|
Focuser |
WIFD internal rack-and-pinion |
|
Electronic Focuser Compatibility |
ZWO EAF |
|
Camera Formats |
Full Frame, APS-C, Micro Four Thirds |
|
Field Flattener |
Not required |
|

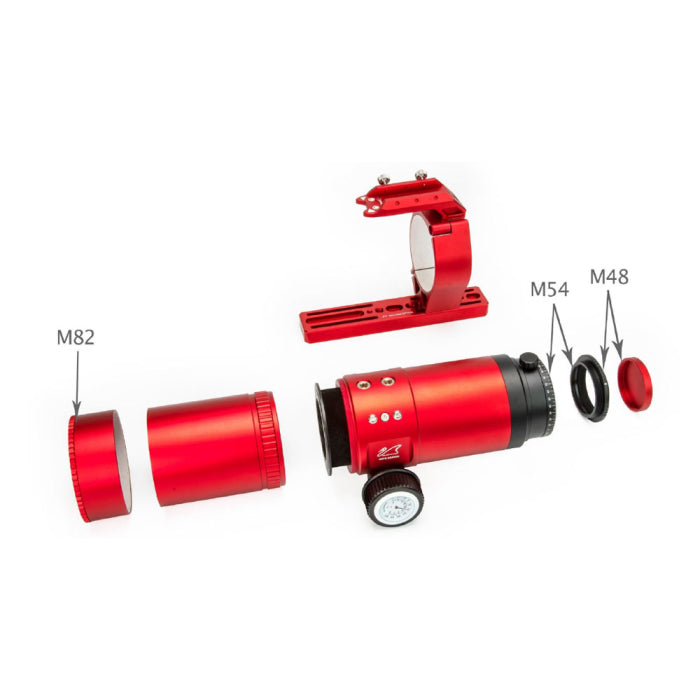

Included Adapter |
M54 to M48 with tilt adjustment and camera angle rotation |
|
Optical Tube Length |
Approximately 298 mm |
|
Optical Tube Weight |
1.77 kg |
|
Total Weight |
Approximately 2.38 kg |
What Comes in the Box?
|
Item |
Description |
|---|---|
|
RedCat 51 Gen 3 Telescope |
Main optical tube assembly |
|
Bahtinov Mask Dust Cap |
Helps achieve precise manual focus |
|
M48 Camera Adapter and Cap |
Camera connection and dust protection |
|
Dual Mounting Plate |
Vixen and Arca-Swiss compatible |
|
Mounting Ring |
Secures the telescope tube |
|
Saddle Handle Bar |
Provides additional mounting support |
|
Camera Angle Rotator |
Allows camera framing adjustments |
|
Tilt Adjuster |
Supports sensor tilt correction |
|
Soft Carrying Case |
For storage and transportation |
|
Allen Key Set |
For mounting and adjustments |
Why Buy from Sky Deep Co ?
Sky Deep Co is a Pakistan-based astronomy equipment retailer helping astronomy enthusiasts and astrophotographers find suitable optical equipment and accessories. When purchasing the William Optics RedCat 51 Gen 3, you can contact the SkyDeep team to confirm availability, included accessories, warranty coverage, and compatibility with your imaging setup before ordering.
SkyDeep is also an official partner in Pakistan for Celestron and ZWO, giving customers access to support for these brands. For William Optics products, confirm the applicable warranty and product support arrangements directly with SkyDeep before purchase.
FAQs
1. What is the William Optics RedCat 51 Gen 3 used for?
The RedCat 51 Gen 3 is primarily designed for wide-field astrophotography. It is suitable for imaging nebulae, star fields, galaxies with suitable framing, and other deep-sky objects.
2. Does the RedCat 51 Gen 3 require a field flattener?
No. Its four-element Petzval optical design provides a flat imaging field without requiring a separate field flattener.
3. Is the RedCat 51 Gen 3 compatible with full-frame cameras?
Yes. It supports full-frame, APS-C, and Micro Four Thirds camera formats, with an image circle specified at 48 mm by the manufacturer.
4. Can I use an electronic focuser with the RedCat 51 Gen 3?
Yes. Its WIFD focusing system is compatible with the ZWO EAF electronic autofocus system, making it suitable for automated astrophotography setups.
5. Is the William Optics RedCat 51 Gen 3 suitable for beginners?
Yes. Its compact design, wide field of view, and integrated focusing features make it a practical option for beginners learning astrophotography as well as experienced imagers. A compatible camera, mount, and other necessary imaging accessories may need to be purchased separately.
