Takahashi Mewlon-210 f/11.5 Dall Kirkham Reflecting OTA Telescope

Takahashi Mewlon-210 f/11.5 Dall Kirkham Reflecting OTA Telescope

Regular price $3,550.00 USD
Regular price Sale price $3,550.00 USD
Sale Sold out

SKU:TAK-M210-DK

In stock

Quantity
PRODUCT DESCRIPTION

The Takahashi Mewlon-210 is a precision-engineered 8.3" (210 mm) Dall-Kirkham reflecting optical tube assembly (OTA) designed to deliver refractor-like sharpness and contrast in a compact, lightweight form. This high-resolution OTA delivers exceptional performance for planetary and deep-sky visual observations thanks to its ellipsoidal primary and spherical secondary optics, optimized for superior contrast with minimal secondary obstruction.

  • Designed for high-contrast planetary and lunar observation with refractor-like visual clarity

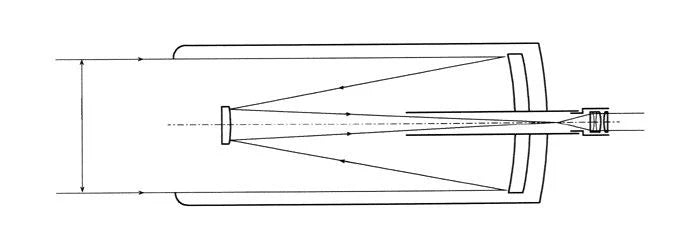

  • Dall-Kirkham optical design uses an ellipsoidal primary and spherical secondary to minimize aberration
  • Extensive internal knife-edge baffling and light-reducing construction for enhanced contrast
  • Optimized 29–31% secondary obstruction delivers superior brightness over SCT and RC alternatives
  • Coma is negligible and lies well outside the field of view with premium eyepieces
  • Precision optical surfaces deliver airy discs as small as 20?, outperforming many SCT systems
  • Optional field flattener/reducer enables F/9 flat field imaging with minimized coma
  • Mirror cell construction eliminates stress and improves thermal response time
  • Lightweight at just 18 lbs (with finder), ideal for portability and quick deployment

Whether you're exploring the surface of Jupiter, observing Saturn's ring system, or capturing high-resolution images of deep-sky objects with the help of a reducer, the Takahashi Mewlon-210 delivers performance typically reserved for large refractors in a much more portable and cost-efficient package.

TECHNICAL SPECIFICATIONS
Feature Specification
Aperture 210 mm (8.25")
Focal Length 2415 mm
Focal Ratio f/11.5
Optical Design Dall-Kirkham Cassegrain
Back Focus 162 mm
Camera Connection 2" Nosepiece
Light Gathering Power 900x
Limiting Magnitude 15.4
Highest Magnification 420x
Dawes Limit 0.55 arcseconds
OTA Diameter 244 mm
OTA Length 700 mm
OTA Weight 17.9 lbs
Warranty 5-Year Warranty
WHAT’S IN THE BOX?
  • Takahashi Mewlon-210 Optical Tube Assembly (OTA)
  • 2" Nosepiece Camera Adapter
  • Precision Knife-Edge Baffled Tube
  • Internal Light Control Baffling
  • Fitted Rear Mirror Support
  • Finder Bracket Mount (Finder Optional)
  • Shipping Documentation & Setup Guide
  • 5-Year Manufacturer Warranty
