Smart Deep Sky Imaging Bundle

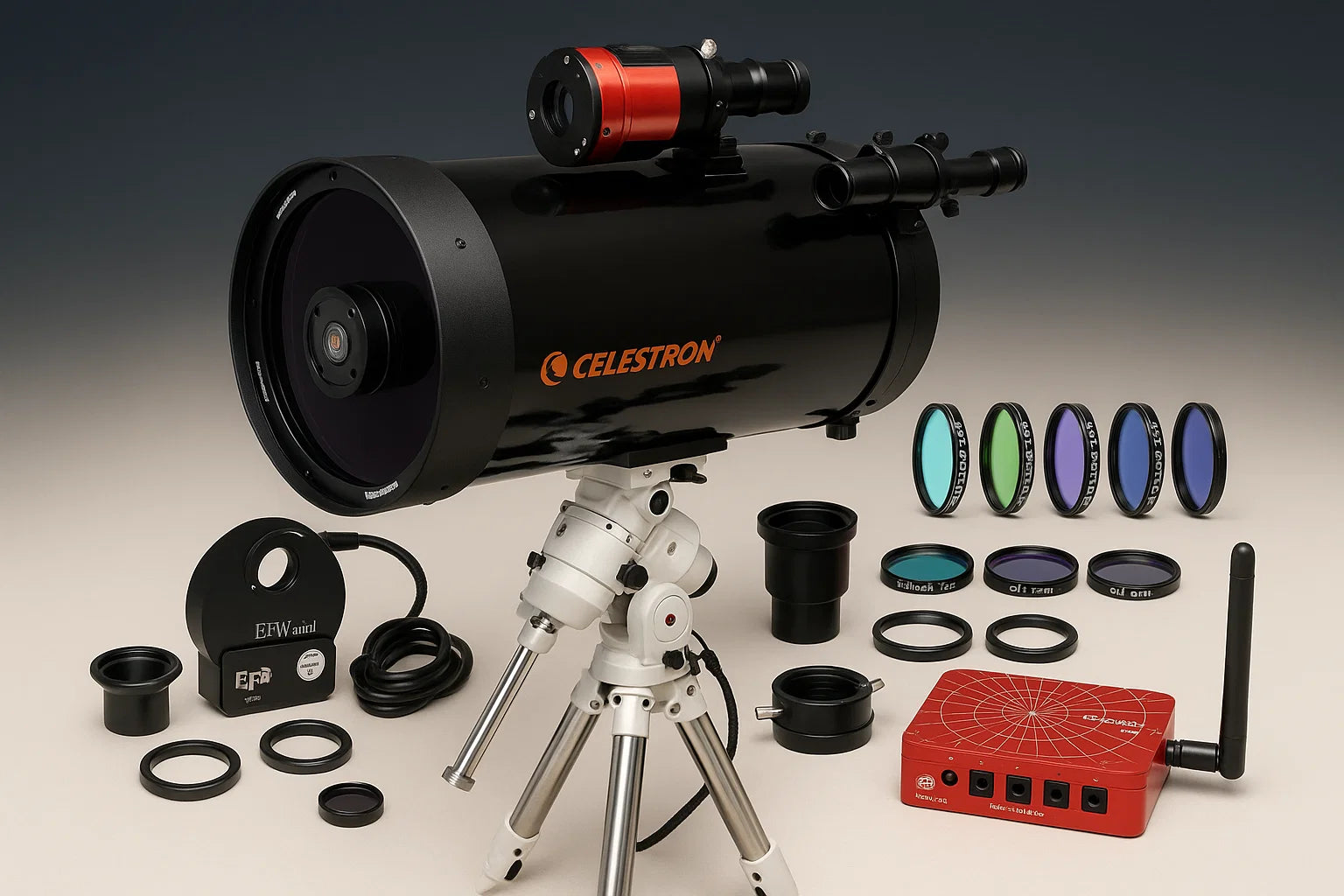

Buying individual astrophotography gear piece by piece often leads to compatibility headaches. Wrong dovetail sizes, mismatched filter threads, and guide cameras that don't talk to your mount can waste months of setup time. The Smart Deep Sky Imaging Bundle solves that problem by pairing every component so it works together right out of the box, letting you focus on imaging instead of troubleshooting.

This bundle targets imagers who've outgrown entry-level gear and want a scientific-grade setup for galaxies, planetary nebulae, and globular clusters. Every part in this system is chosen for one goal: capturing faint, distant light with minimal noise and maximum detail.

What Makes This Deep Sky Imaging Bundle Different

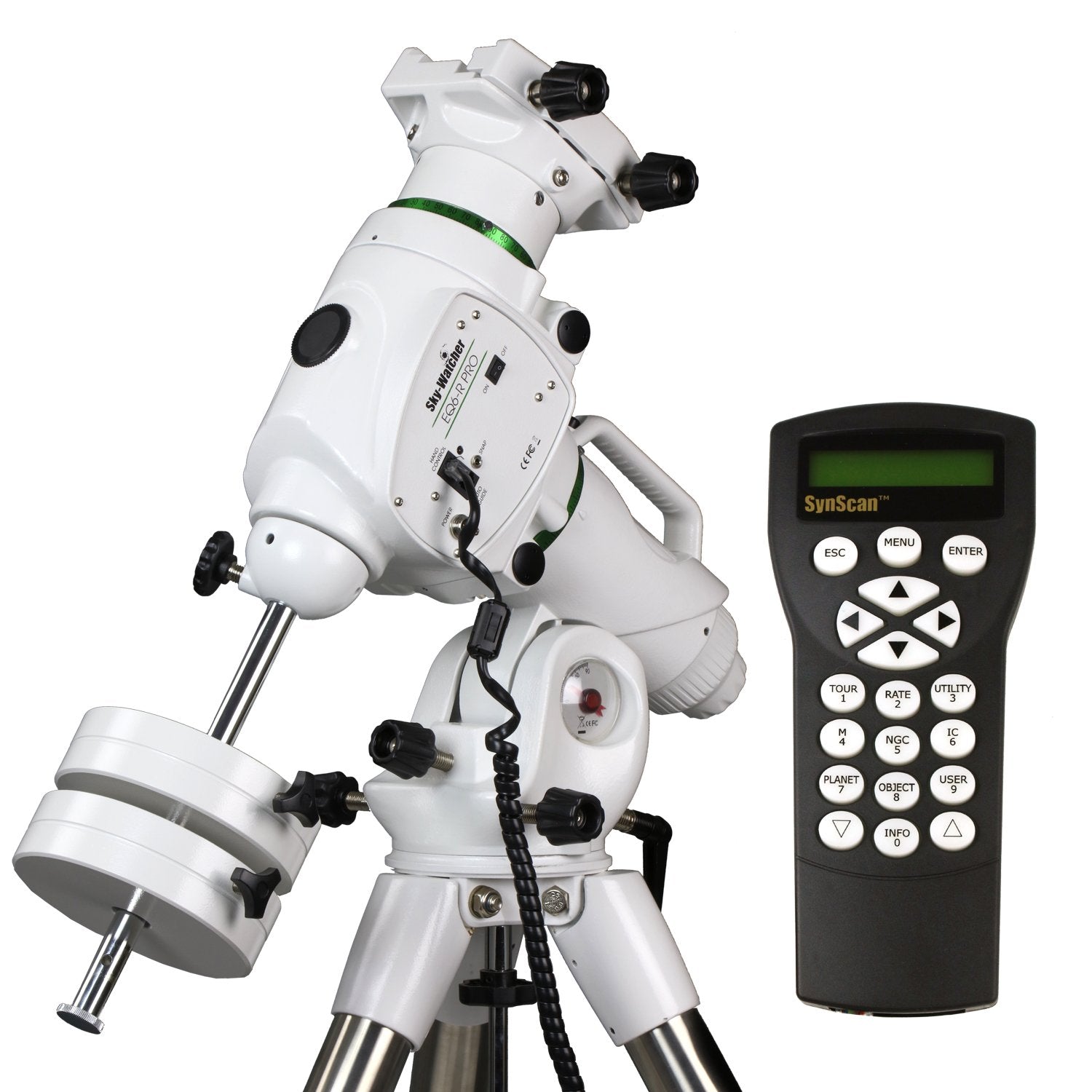

At the foundation sits the Sky-Watcher EQ6-R Pro equatorial mount, a belt-driven GoTo mount rated for 44 lb payload. This mount handles vibration and tracking accuracy far better than lighter alt-az mounts, which matters when you're taking multi-minute exposures. If your current mount struggles with heavier optical tubes, our equatorial mounts collection shows other GEM options at different price points.

The optical tube is a Celestron EdgeHD 800, an 8-inch Schmidt-Cassegrain design with a 203mm aperture and f/10 focal ratio. EdgeHD optics correct for coma and field curvature across the entire sensor, so stars stay sharp even at the edges of your frame. That flat-field performance is exactly why EdgeHD tubes are popular for imaging small galaxies and planetary nebulae rather than wide starfields. You can compare this tube against other options in our Schmidt-Cassegrain telescopes collection if you're deciding between apertures.

The Camera and Filter System

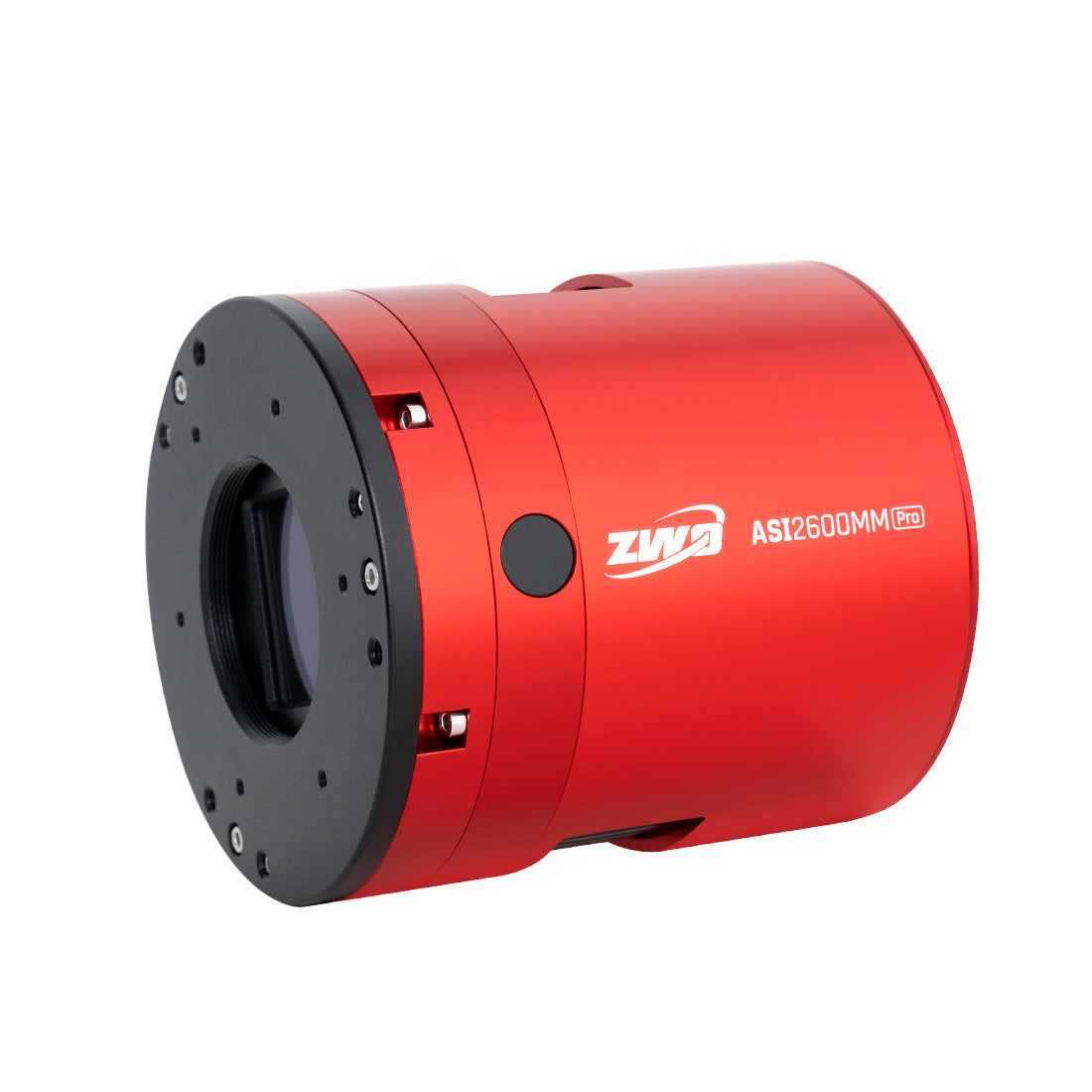

Image capture runs through the ZWO ASI2600MM Pro, a cooled monochrome CMOS camera with an APS-C sensor and strong dynamic range. Monochrome sensors outperform color cameras for deep-sky work because they capture full resolution per channel instead of splitting pixels across a Bayer filter. Cooling keeps thermal noise low during long exposure sequences, which directly improves your final image quality on faint targets. Browse our full cooled monochrome cameras collection if you want to see how this model compares to smaller sensor options.

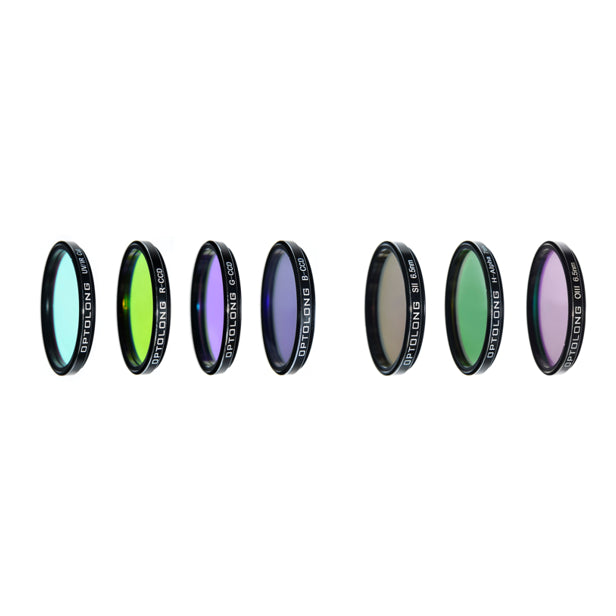

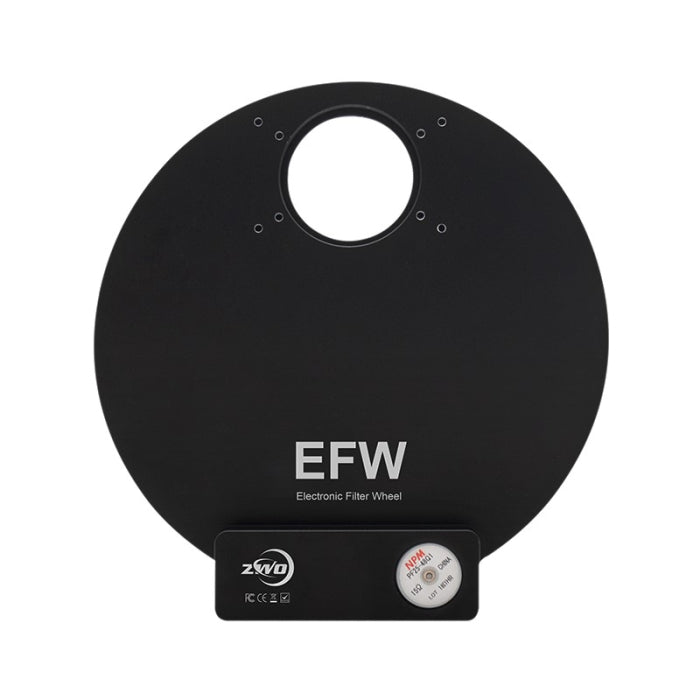

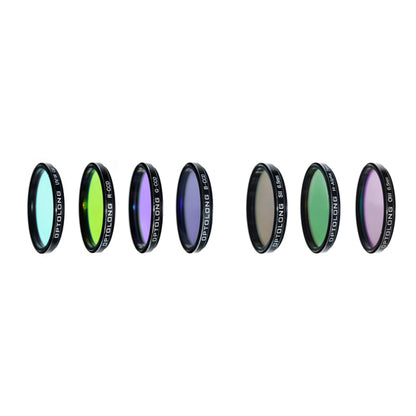

A ZWO 7-position electronic filter wheel automates filter changes between exposures, so you don't touch the imaging train mid-session. The bundle includes a full 2" Optolong LRGB filter set for natural color data, plus 7nm Ha, 6.5nm OIII, and 6.5nm SII narrowband filters for isolating emission nebulae against light-polluted skies. This LRGBSHO combination lets you shoot both broadband galaxy targets and narrowband nebula targets with the same setup. If you want to understand filter selection in more depth, our narrowband filters collection and LRGB filter sets collection break down each type separately.

Guiding and Automation

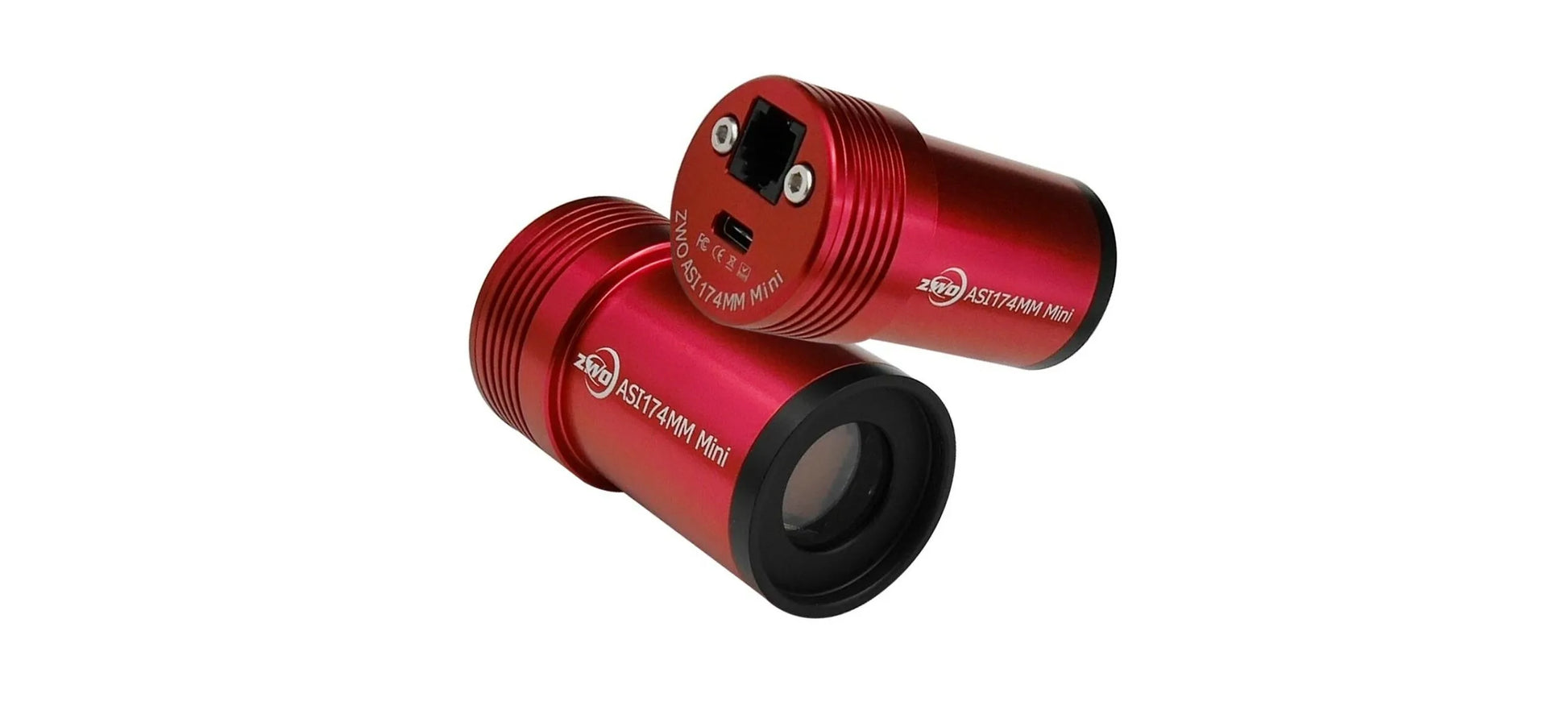

Star trailing ruins otherwise good exposures, and this bundle addresses that with a ZWO OAG-L off-axis guider paired with the ZWO ASI174MM Mini guide camera. Off-axis guiding pulls correction data from the same light path as your main camera, which avoids differential flexure issues that plague separate guide scopes. For imagers currently fighting guiding problems, our guiding cameras collection lists other autoguider options worth comparing.

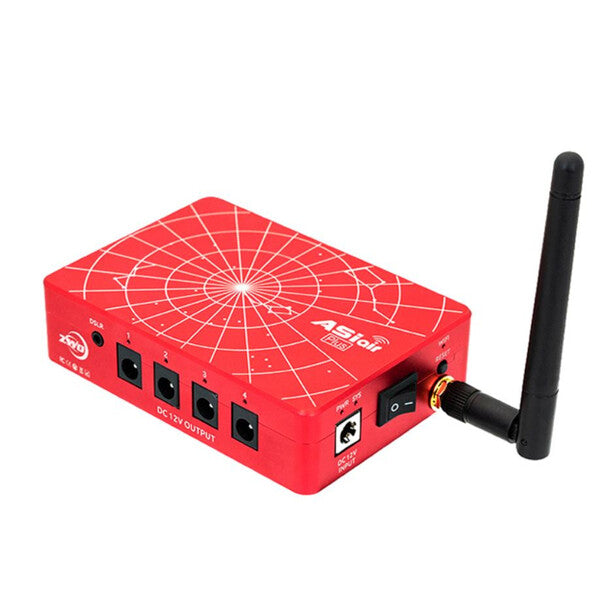

The ZWO Camera Angle Adjuster rotates your imaging train precisely, so framing a target doesn't mean loosening clamps and guessing. Everything ties together through the ZWO ASIAIR Pro, a WiFi controller that runs your mount, camera, filter wheel, and guiding from a phone or tablet. This removes the laptop-and-cables complexity that turns many beginners away from serious imaging setups.

Technical Specifications

1. Mount: Sky-Watcher EQ6-R Pro, 44 lb payload, belt-driven GoTo
2. Telescope: Celestron EdgeHD 800 SCT, 203mm aperture, f/10
3. Camera: ZWO ASI2600MM Pro, cooled monochrome CMOS, APS-C sensor
4. Filter wheel: ZWO 7-position EFW, 2"/50.4mm filters
5. Filters: Optolong LRGB set plus Ha, OIII, SII narrowband
6. Guiding: ZWO OAG-L with ASI174MM Mini
7. Controller: ZWO ASIAIR Pro WiFi automation

Who Should Buy Smart Deep Sky Imaging Bundle

This setup suits intermediate to advanced astrophotographers ready to commit to a dedicated imaging rig rather than a dual-purpose visual scope. If you're newer to the hobby, jumping straight into a system this advanced can feel overwhelming without guidance. Our team frequently helps buyers figure out whether a full bundle or a step-by-step gear build fits their budget and experience level better.

Every component here comes from brands Sky Deep stocks directly, including full ranges from ZWO, Celestron, and Optolong, so replacement parts and future upgrades stay easy to source locally. As Pakistan's authorized ZWO and Celestron dealer, Sky Deep also handles warranty support directly instead of routing you through international sellers.

Pricing already includes duties, taxes, and freight, so the amount at checkout is the final cost with no surprises at delivery. Given the investment involved, we strongly recommend a free consultation before ordering, so our team can confirm this bundle matches your imaging goals and local sky conditions. You can also explore the complete deep space imaging collection for individual components, or reach our team with specific questions. For a broader look at everything Sky Deep carries, visit the Sky Deep Co anytime.

FAQs

Q1: Does this bundle work for a beginner?

It's built for intermediate to advanced users. Beginners often find the full automation workflow easier after some hands-on telescope experience first.

Q2: Can I image both galaxies and nebulae with this setup?

Yes, the LRGB and narrowband filter combination covers both broadband galaxy targets and narrowband emission nebulae.

Q3: Does the price include customs and delivery?

Yes, duties, taxes, and freight are already included in the listed price at checkout.

Q4: What controls the whole imaging system?

The ZWO ASIAIR Pro manages the mount, camera, filter wheel, and guiding wirelessly from a phone or tablet.

Q5: Is local warranty support available for this bundle?

Yes, Sky Deep is Pakistan's authorized ZWO and Celestron dealer and handles warranty claims directly.
