Product Description

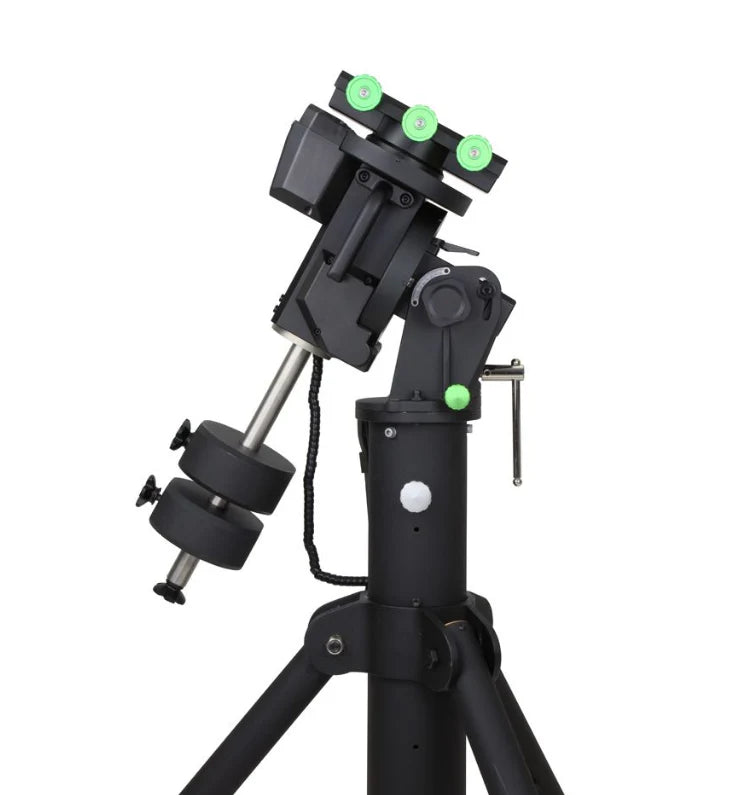

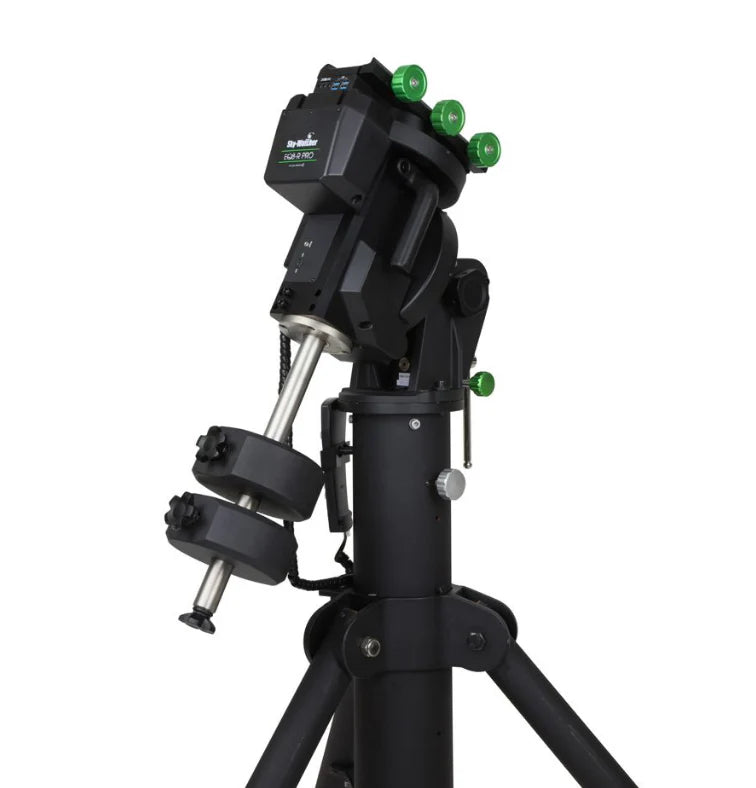

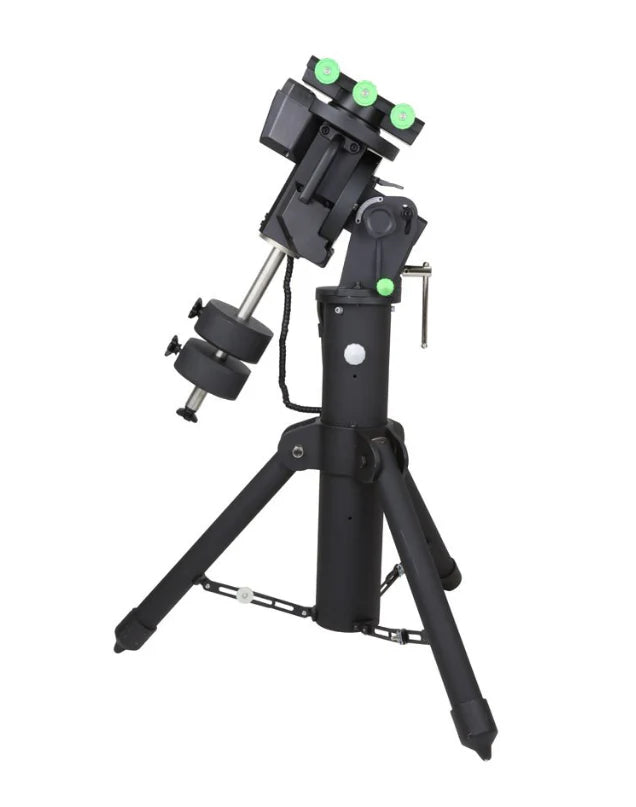

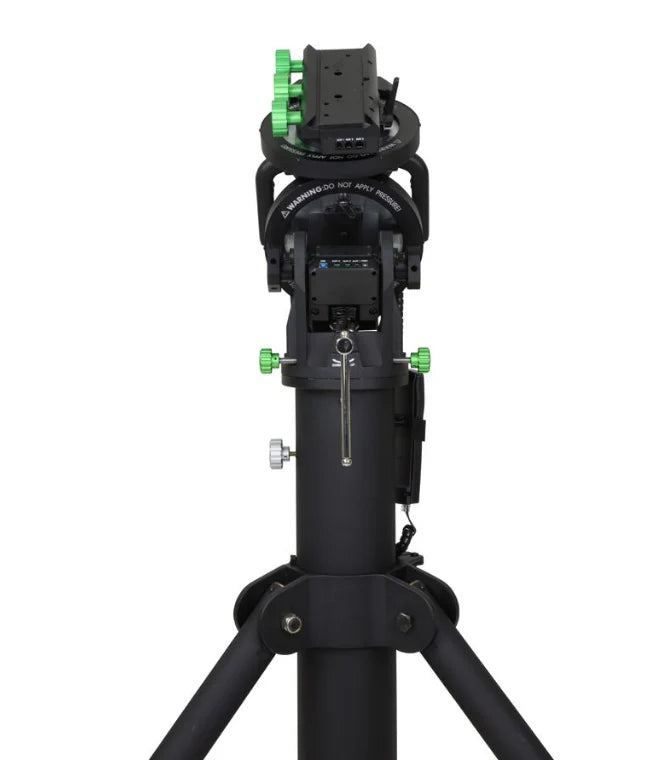

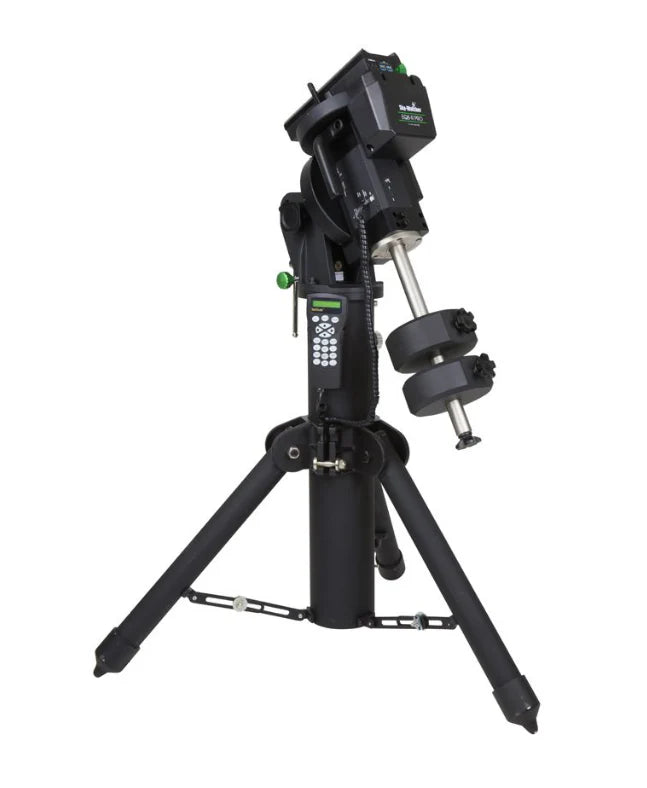

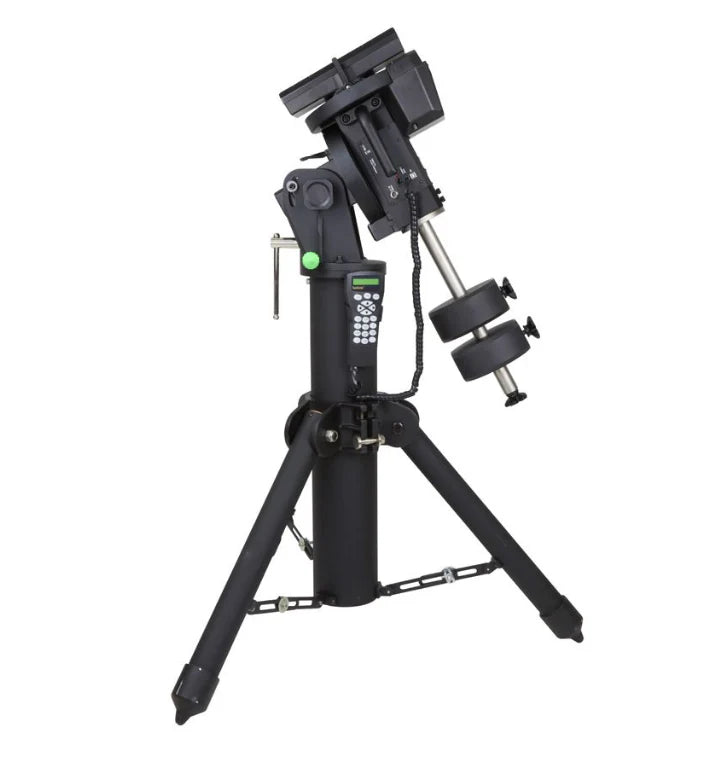

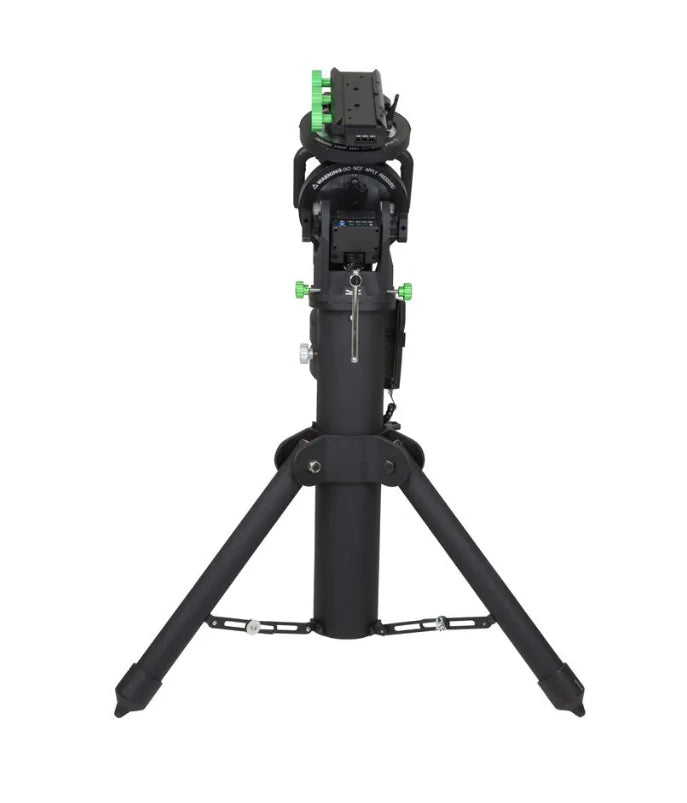

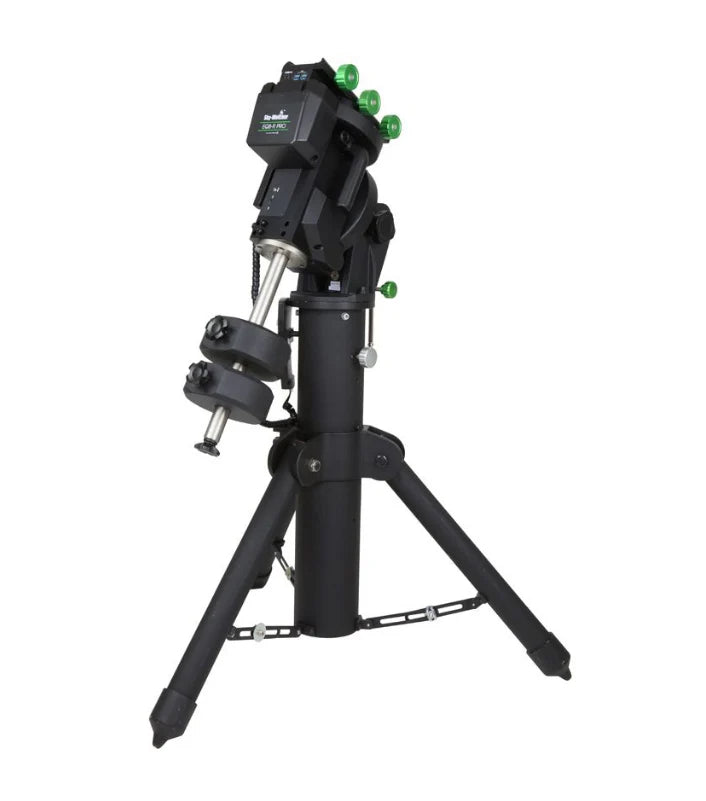

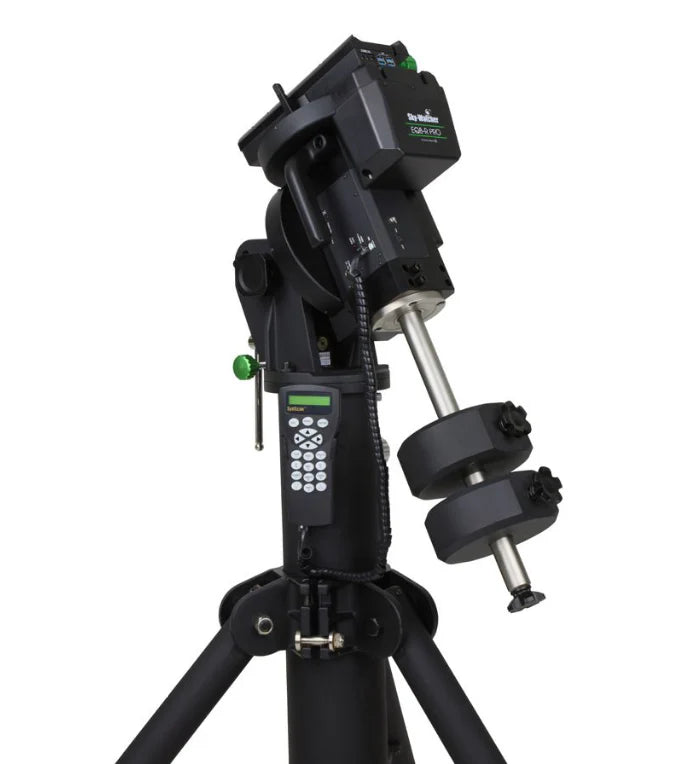

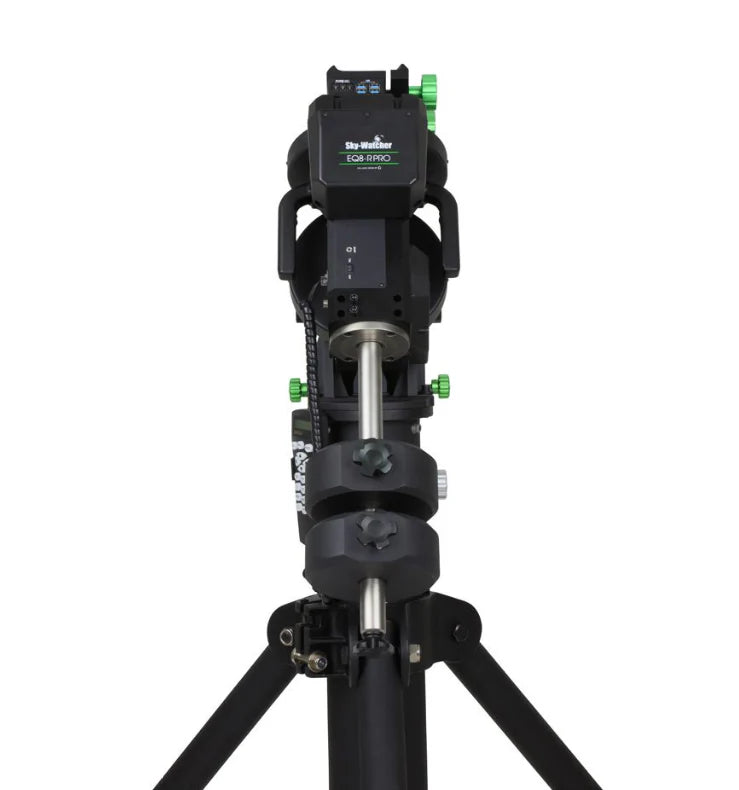

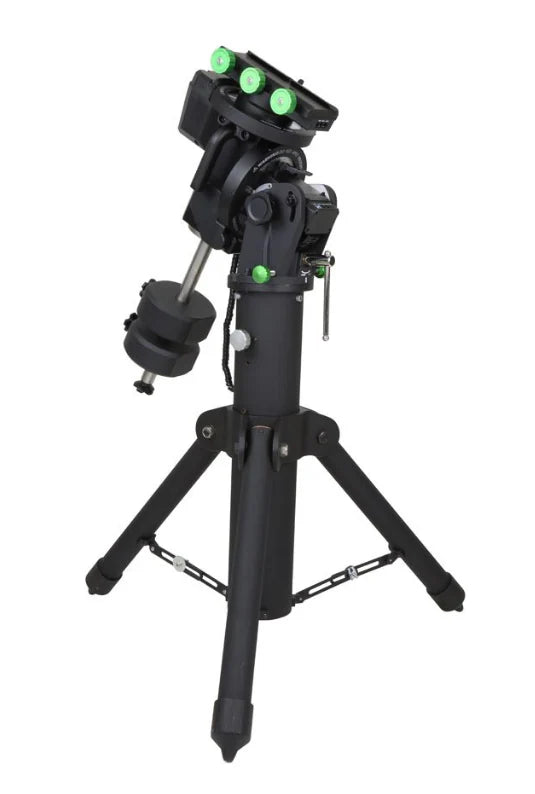

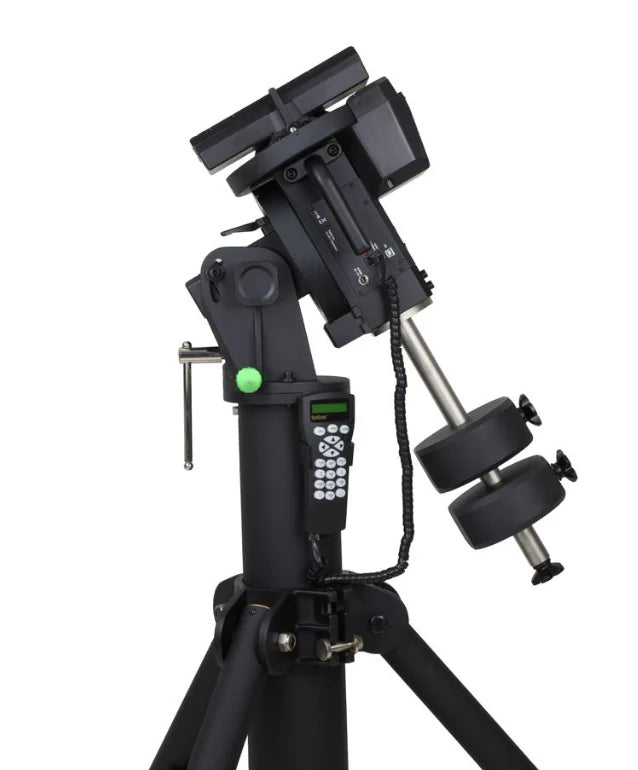

The Sky-Watcher EQ8-R Pro is a heavy-duty German Equatorial GoTo mount designed for advanced astrophotography and observatory applications. With a 50 kg payload capacity, belt-driven RA and DEC axes, dual encoders, and precise SynScan control, it provides stable and accurate tracking for large optical tube assemblies and imaging equipment. Its internal cable management and permanent periodic error correction make it well suited for demanding long-exposure deep-sky imaging.
Technical Specifications
| Specification |
Details |
| Mount Type |
German Equatorial Mount |
| Payload Capacity |
50 kg (110 lb) |
| Mount Head Weight |
25.8 kg (56.8 lb) |
| Latitude Adjustment |
10°–65° |
| Azimuth Adjustment |
±10° |
| Drive System |
Belt-driven RA and DEC |
| Motor |
0.9° Hybrid Stepper Motor |
| Transmission |
435:1 Worm Drive |
| Gear Ratio |
435:1 |
| Tracking Rates |
Sidereal, Solar, Lunar |
| Maximum Slewing Speed |
3.7°/second |
| Auto-Guiding Speeds |
0.125×, 0.25×, 0.5×, 0.75×, 1× |
| PEC |
200-segment Permanent PEC |
| GoTo System |
SynScan Hand Controller / SynScan Pro App |
| Object Database |
42,000+ objects |
| Dovetail |
Losmandy-style |
| Counterweights |
2 × 10 kg |
| Counterweight Shaft |
2.6 kg retractable shaft |
| Power Requirement |
DC 11–16V, 55W |
| Pointing Accuracy |
Up to 5 arc-minutes RMS |
| Tracking Mode |
Equatorial |
| Polar Alignment |
SynScan-assisted |
| Internal Cable Management |
Yes |
| Dual Encoders |
Yes |
What Comes in the Box?
The Sky-Watcher EQ8-R Pro Mount Head package includes the EQ8-R Pro mount head, SynScan hand controller, counterweight shaft, two 10 kg counterweights, Losmandy-style saddle, power cable, RS232-to-USB cable, and instruction manual. The mount head version does not include the pier tripod.
Why Buy from Sky Deep Co.?
Sky Deep Co. offers genuine Sky-Watcher astronomy equipment with local product guidance and support in Pakistan. The EQ8-R Pro is a professional-grade mount for users who need high payload capacity, accurate tracking, and reliable performance for advanced astrophotography or observatory setups. Sky Deep helps customers choose suitable astronomy equipment and provides local assistance for their setup.
FAQs
What is the payload capacity of the EQ8-R Pro?
The EQ8-R Pro supports a payload of up to 50 kg (110 lb), excluding counterweights.
Is the EQ8-R Pro suitable for astrophotography?
Yes. Its belt-driven axes, Permanent PEC, dual encoders, and precise tracking make it suitable for demanding astrophotography.
How much does the EQ8-R Pro mount head weigh?
The mount head weighs approximately 25.8 kg (56.8 lb).
How many counterweights are included?
The package includes two 10 kg counterweights.
Does this version include a tripod?
No. This product is the mount head with counterweights. The pier tripod is sold separately.
