Sky-Watcher

Sky-Watcher AZ-EQ5 Multi-Purpose GoTo Mount

Sky-Watcher AZ-EQ5 Multi-Purpose GoTo Mount

Regular price Rs.512,715
Regular price Sale price Rs.512,715
Sale Sold out

SKU:SKY-S30200

Available Soon

Quantity

Product Description

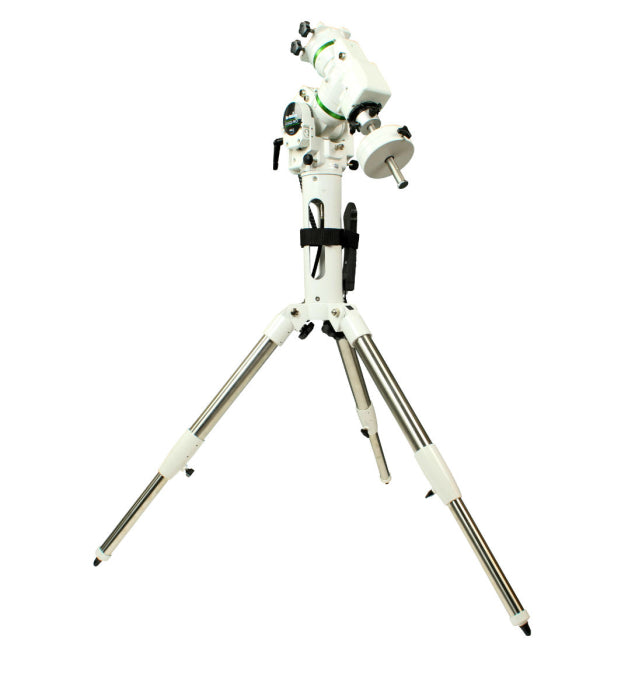

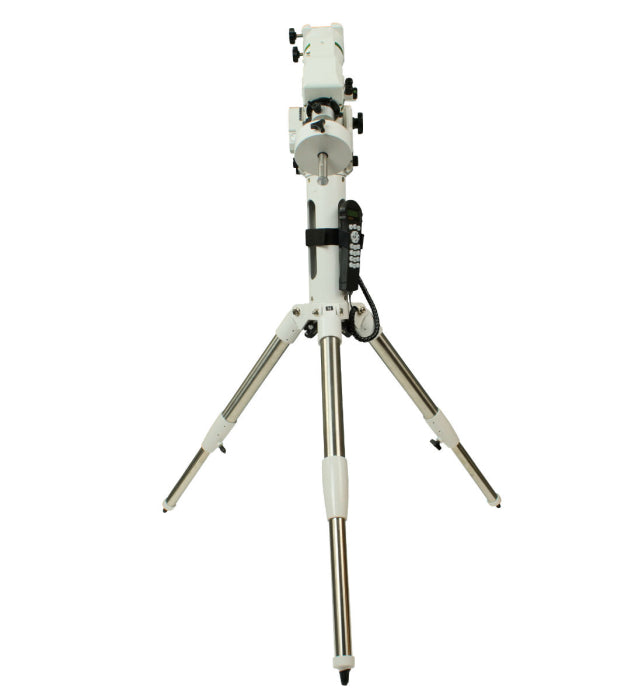

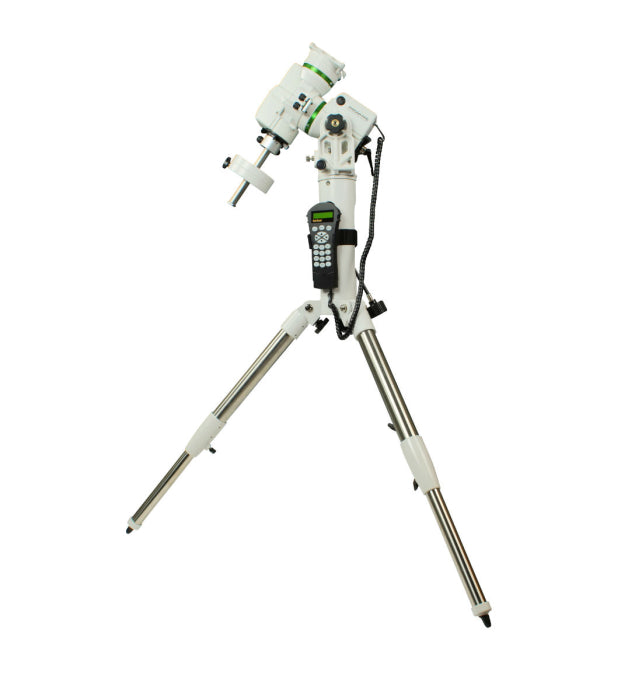

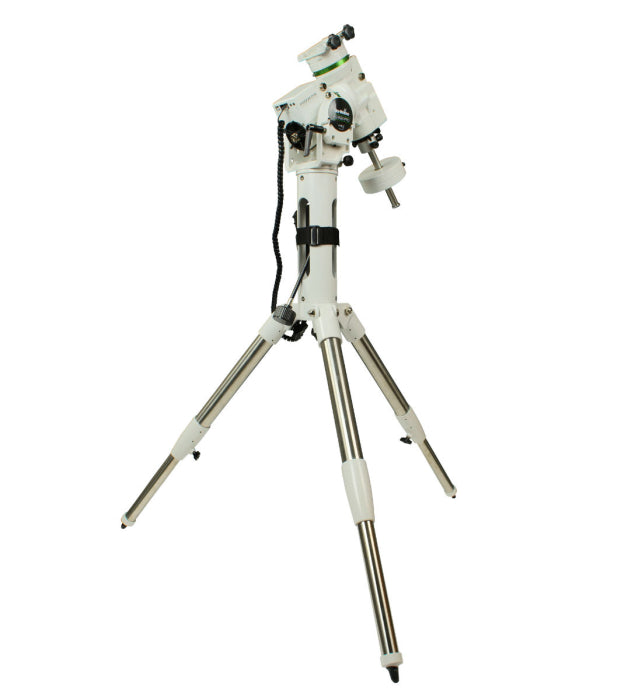

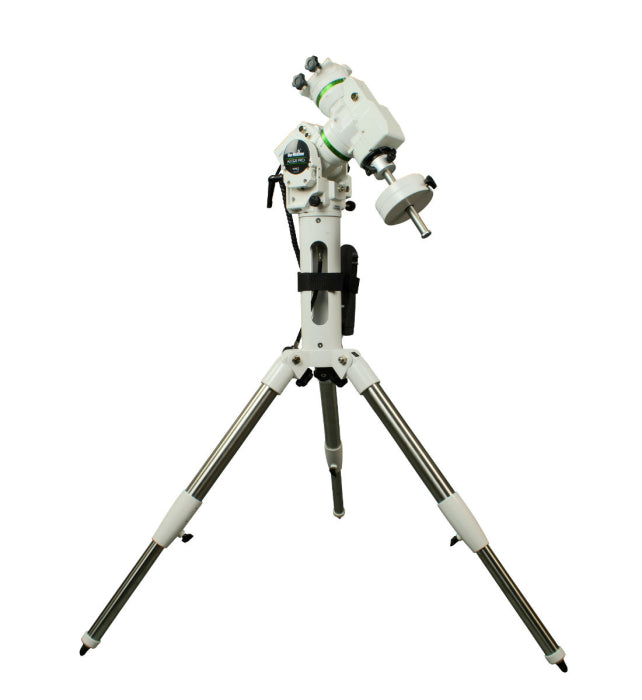

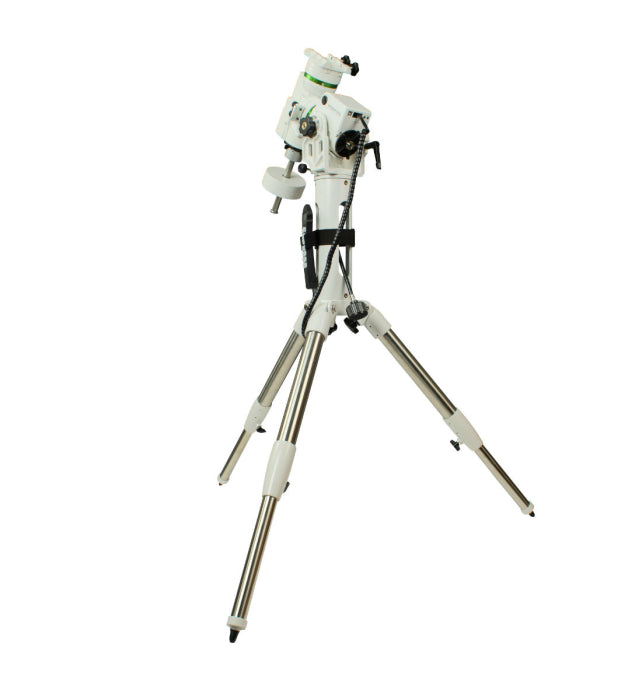

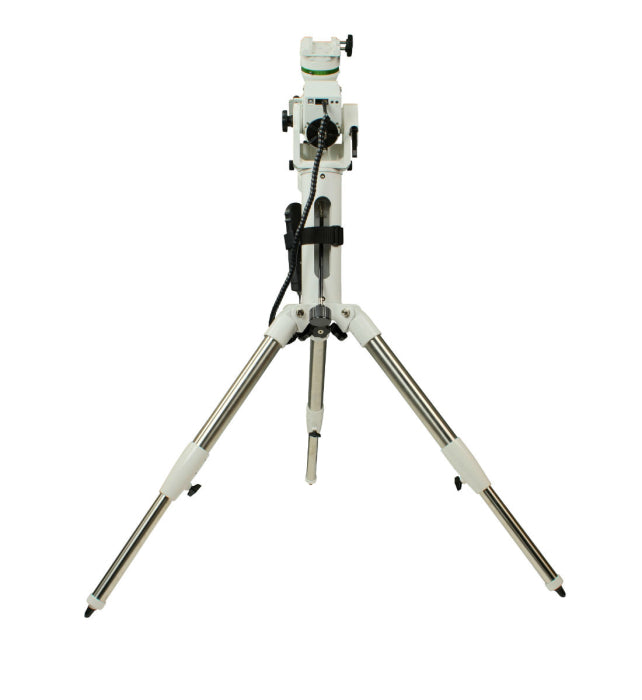

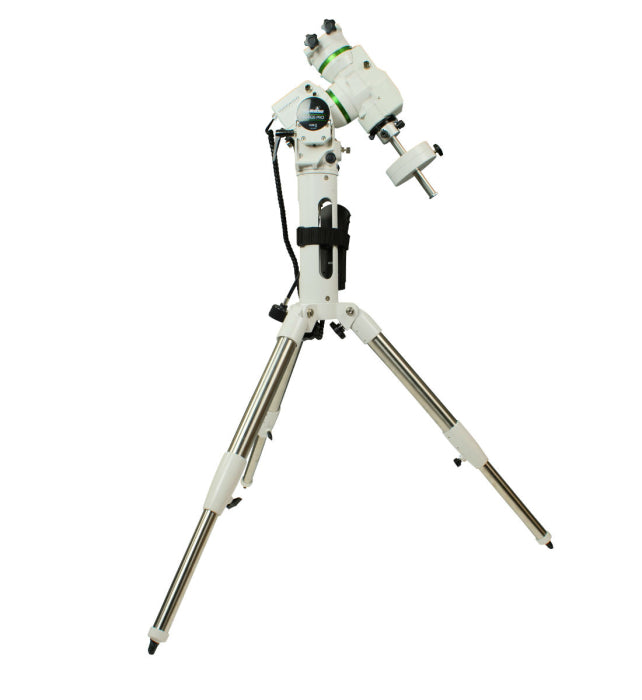

The Sky-Watcher AZ-EQ5 Multi-Purpose GoTo Mount is a versatile computerized mount designed for both astronomy and astrophotography. It can operate in German Equatorial and Alt-Azimuth modes, giving users flexibility for different observing and imaging setups. With a strong payload capacity, belt-driven tracking system, SynScan GoTo control, and dual-axis operation, the AZ-EQ5 provides accurate and convenient telescope positioning.



Key Features



  1. Dual-mode German Equatorial and Alt-Azimuth operation
  2. Up to 33 lbs payload capacity
  3. Belt-driven precision tracking system
  4. SynScan GoTo computerized control
  5. Supports more than 42,000 celestial objects
  6. Sidereal, solar, and lunar tracking
  7. Periodic Error Correction (PEC)
  8. Built-in illuminated polar scope
  9. Dual Vixen/Losmandy-style saddle
  10. Retractable counterweight shaft
  11. Built-in Wi-Fi support
  12. Suitable for visual astronomy and astrophotography



Technical Specifications



Specification Details
Mount Type German Equatorial / Alt-Azimuth
Payload Capacity 33 lbs / 15 kg
Mount Head Weight 16.9 lbs
Tripod Weight 13.4 lbs
Drive System Belt-driven
Motor Type DC Servo Motors
Tracking Rates Sidereal, Solar, Lunar
GoTo System SynScan GoTo
Database 42,900+ Objects
Periodic Error Correction Yes
Alignment Methods 1-Star, 2-Star, Polar Alignment, Solar System
Latitude Range 15°–65°
Saddle Type Dual Vixen / Losmandy
Polar Scope Built-in with Illuminator
Wi-Fi Optional / Wi-Fi compatible
Power Supply 12V DC, 2.5A
Counterweights 2 × Counterweights
Drive Dual-Axis
Best For Visual Astronomy & Astrophotography
SKU S30200

GoTo and Tracking



The AZ-EQ5 uses the SynScan GoTo system to help users locate and track thousands of celestial objects. Its computerized control supports more than 42,000 objects, including stars, planets, galaxies, nebulae, and other deep-sky targets. The mount also supports sidereal, solar, and lunar tracking for different observing and imaging applications.



Dual-Mode Mount Design



One of the main advantages of the AZ-EQ5 is its ability to work in both German Equatorial and Alt-Azimuth modes. The equatorial configuration is useful for astrophotography because it allows accurate celestial tracking, while the Alt-Az mode provides a convenient setup for visual observation.


Belt-Driven Tracking


The belt-driven design helps provide smooth and precise movement during tracking. This makes the AZ-EQ5 suitable for users who want a stable mount for both visual observing and astrophotography.


Portable and Practical Design

The AZ-EQ5 combines a strong payload capacity with a relatively manageable mount and tripod weight. The 16.9 lb mount head and 13.4 lb tripod make it easier to transport and set up compared with larger observatory-class mounts.


What Comes in the Box?


The Sky-Watcher AZ-EQ5 package includes the AZ-EQ5 mount head, adjustable steel tripod, accessory tray, SynScan GoTo controller, counterweight shaft, counterweights, built-in polar scope, power cable, and required setup accessories. Package contents can vary by regional version, so the exact included accessories should be confirmed before purchase.


Why Buy from Sky Deep Co.?


Buy your Sky-Watcher AZ-EQ5 Multi-Purpose GoTo Mount from Sky Deep Co. for genuine astronomy equipment, reliable product guidance, local support, and warranty assistance in Pakistan. Our team can also help you understand the mount's features and choose suitable accessories for your astronomy or astrophotography setup.


Frequently Asked Questions


Is the Sky-Watcher AZ-EQ5 suitable for astrophotography?

Yes. Its German Equatorial mode, belt-driven system, dual-axis tracking, and GoTo control make it suitable for astrophotography setups.


What is the payload capacity of the AZ-EQ5?

The AZ-EQ5 has a payload capacity of up to 33 lbs or 15 kg.


How much does the AZ-EQ5 mount head weigh?

The mount head weighs 16.9 lbs.


How much does the AZ-EQ5 tripod weigh?

The tripod weighs 13.4 lbs.


Does the AZ-EQ5 have GoTo?

Yes. It uses the SynScan GoTo system with access to more than 42,000 celestial objects.
