Pegasus Astro Pocket Powerbox Advance Gen2
Pegasus Astro Pocket Powerbox Advance Gen2
SKU:PGA-PWRBX-G2
In stock
Couldn't load pickup availability
PRODUCT DESCRIPTION

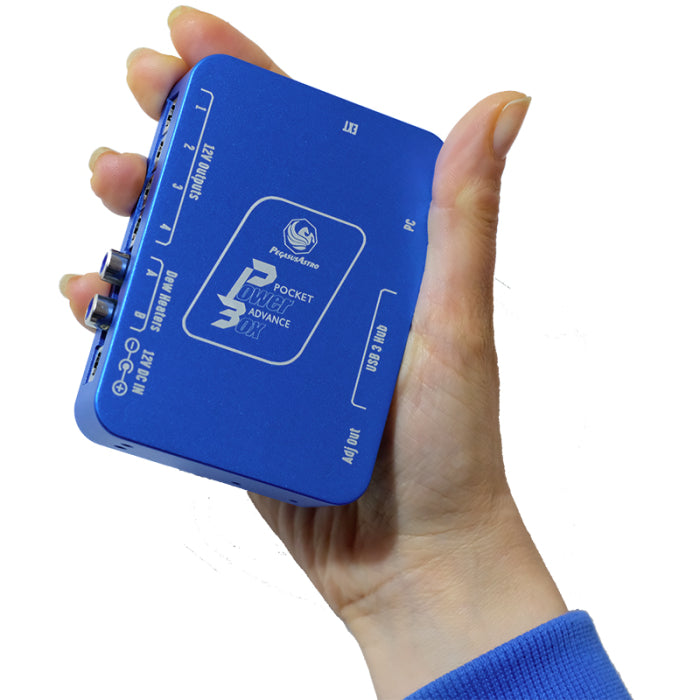

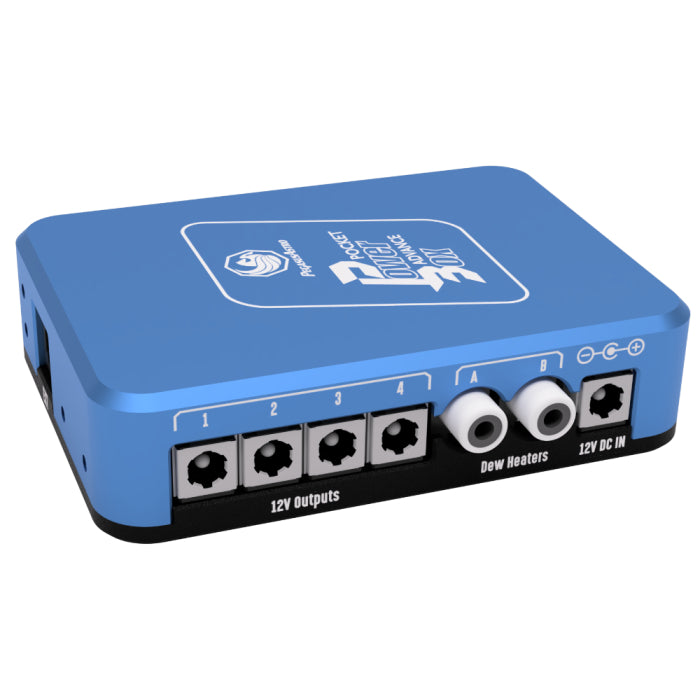

The Pegasus Astro Pocket Powerbox Advance Gen2 is a versatile, portable power distribution hub designed to streamline your astrophotography setup. Delivering up to 12A of total current across four 12V DC outlets, it supports a range of imaging devices and mounts with fine-grained, standalone or PC-integrated control.
Enhanced from its previous generation, this unit features PWM dew heater channels, USB 3.0 and 2.0 ports, an RJ12 port, and built-in voltage and current monitoring via ammeters. A detachable external environmental sensor provides live temperature, humidity, and dew point data for intelligent heater automation. Compatible with Windows, Mac, and Linux through Pegasus Astro’s Unity Platform, it also supports INDI, ASCOM, MaximDL, and SGP software.
Mounting is easy with integrated M3 threads for attaching to astro rigs, and while the device doesn’t include a power supply, it pairs perfectly with a 12V 10A DC adapter. Whether you're imaging from home or under dark skies, the Powerbox Gen2 ensures reliable, smart power distribution for your entire astrophotography system.
TECHNICAL SPECIFICATIONS
- Maximum Output: 12A Total Current

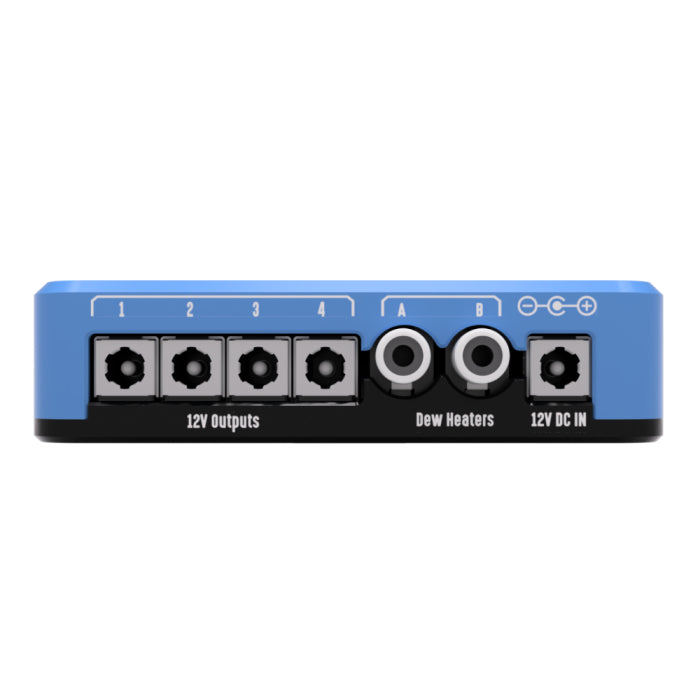

- Power Ports: 4 × 12V DC (5.5x2.1mm, 10A shared)
- Dew Heater Ports: 2 × RCA PWM (independently controlled)

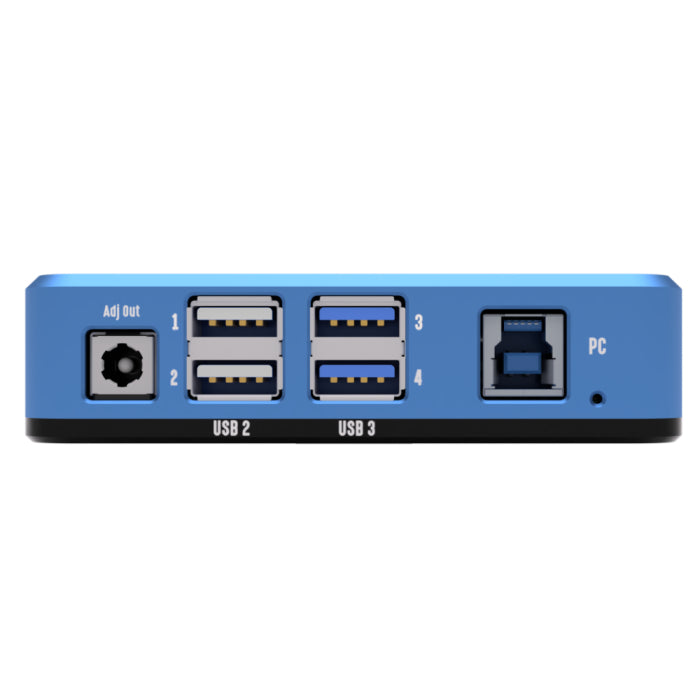

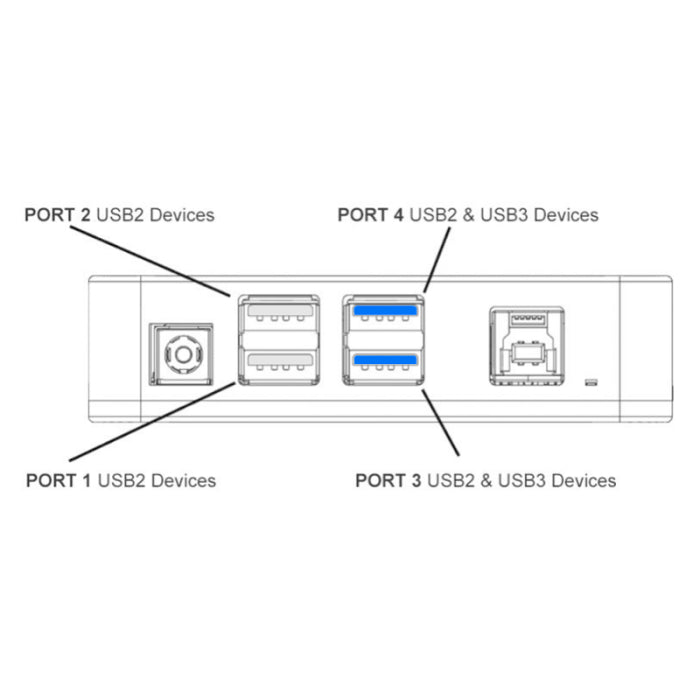

- USB Hub: 2 × USB 3.0, 2 × USB 2.0 (5V 3A each)
- Environmental Sensor: Temperature, Humidity, Dew Point
- Monitoring: 1 × Voltmeter, 4 × Ammeters (real-time)

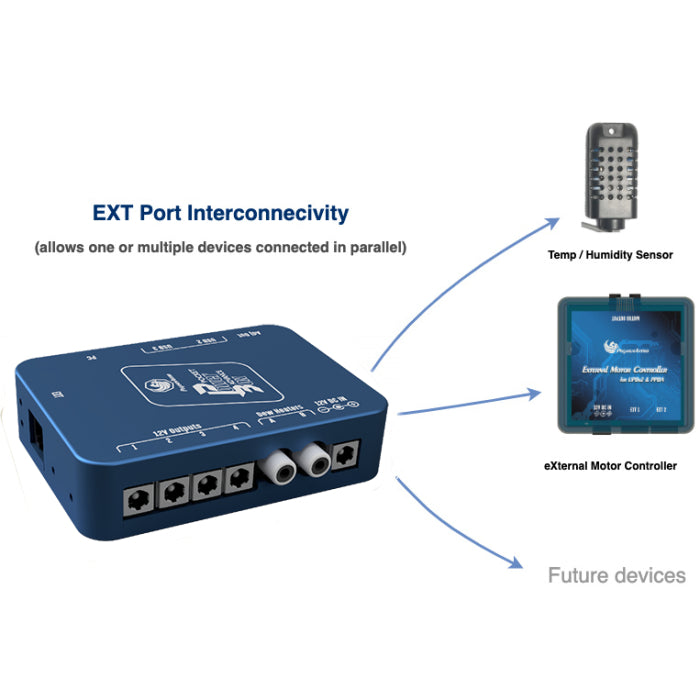

- Connectivity: USB 3.0 Type-B, RJ12 Port

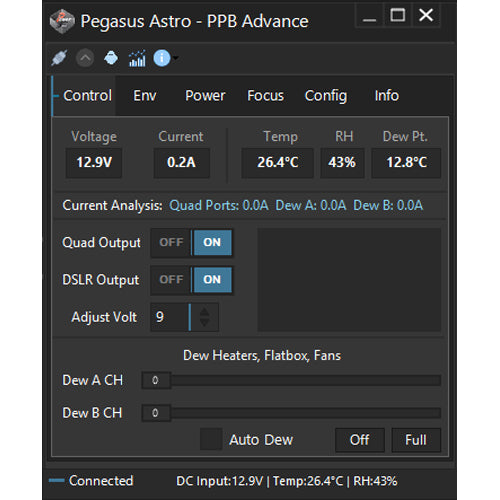

- PC Control Software: Pegasus Astro Unity Platform
- 3rd Party Compatibility: ASCOM 7, INDI, MaximDL, SGP

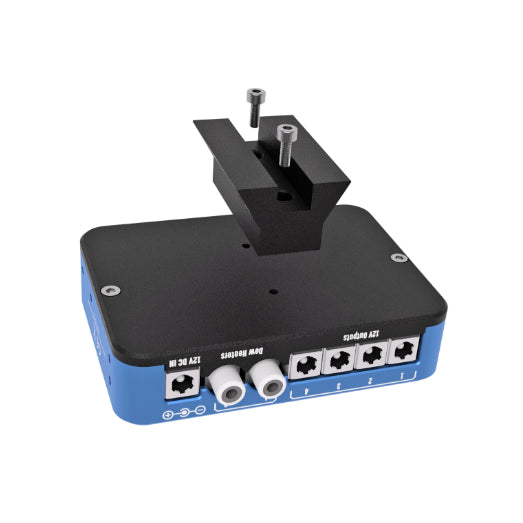

- Mounting: 2 × M3x8mm threaded holes (Synta-style base)
- OS Compatibility: Windows, Mac, Linux
- Weight: Lightweight aluminum build (exact weight not specified)
- Optional Accessory: Apertura 12V 10A DC Power Supply
- Warranty: Pegasus Astro – 2 Years
WHAT’S IN THE BOX?
- Pocket Powerbox Advance Controller (Gen2)

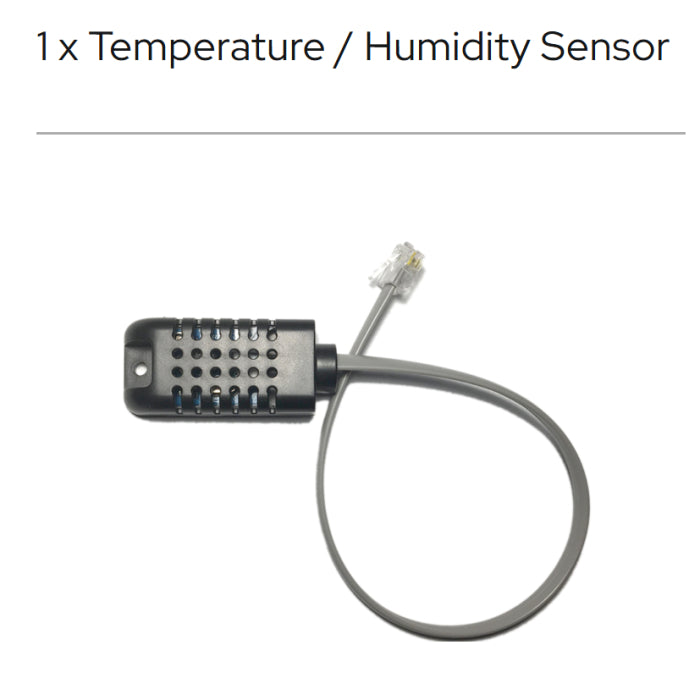

- External Temperature / Humidity Sensor

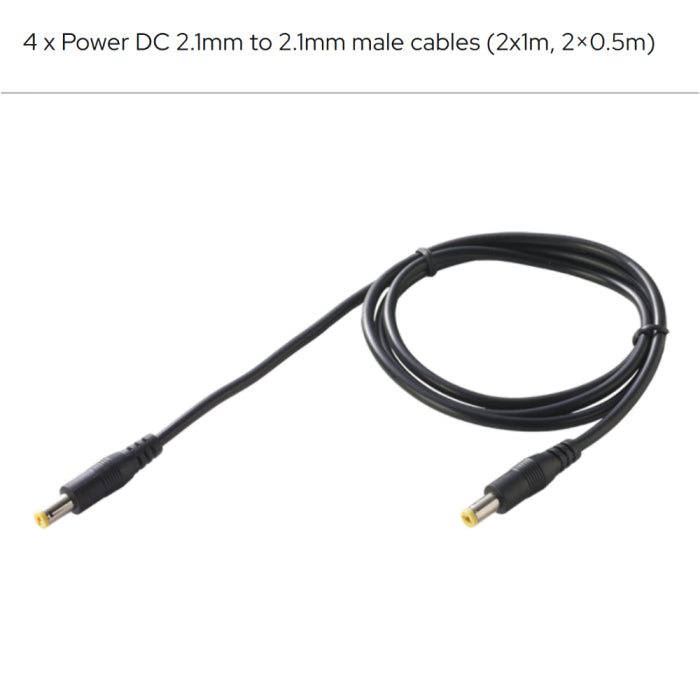

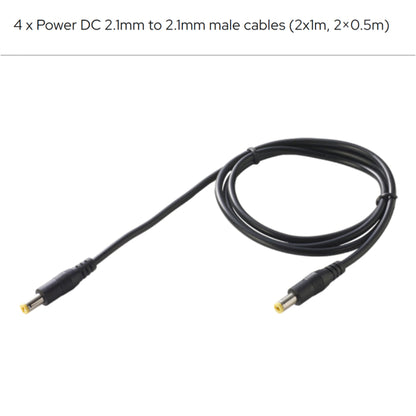

- 4 × DC Power Cables (2.1mm to 2.1mm, 1m)

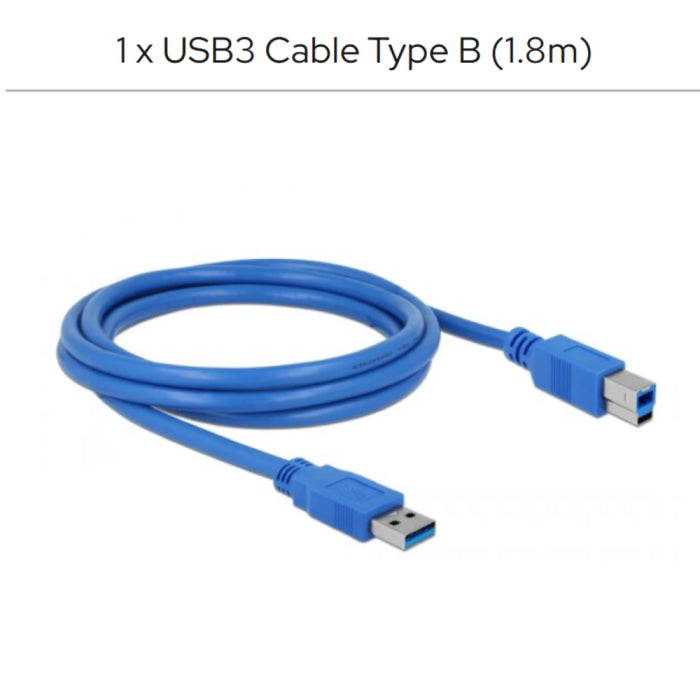

- USB 3.0 Type-B Cable (1.8m)
