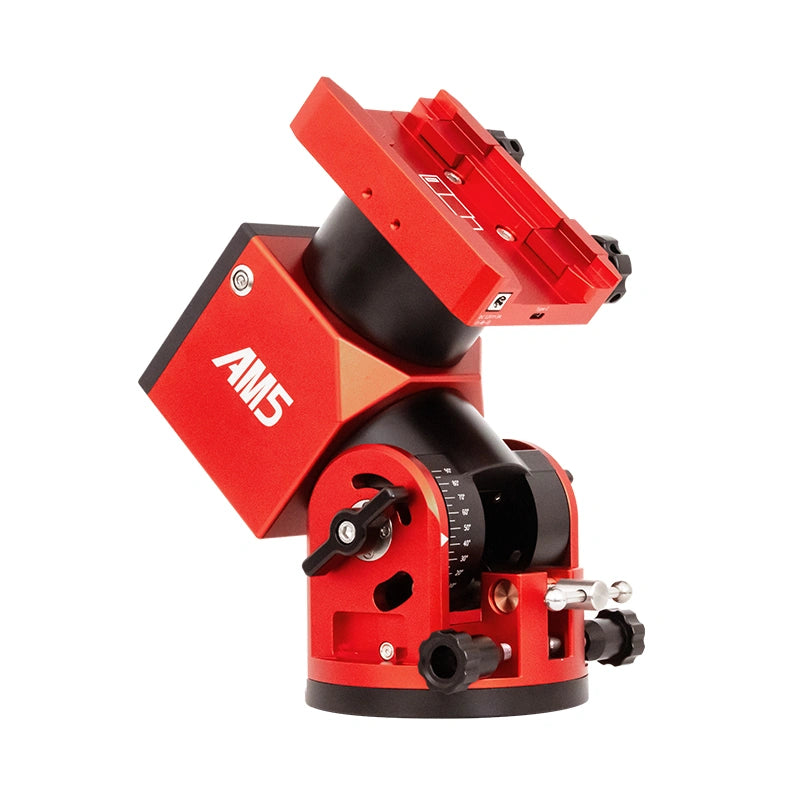

AM5N Harmonic Equatorial Mount

The New AM5N Harmonic Equatorial Mount by ZWO represents the next evolution of ultra-portable astrophotography mounts, blending advanced harmonic drive technology with state-of-the-art electronics. With no need for counterweights for payloads up to 13 kg and support for up to 20 kg with counterweights, the AM5N delivers impressive performance in a remarkably compact body.

Designed with both equatorial and alt-az modes, the AM5N allows users to toggle between visual observation and long-exposure imaging effortlessly. Its improved strain wave gearing system ensures smoother tracking with lower periodic error, while the upgraded internal electronics allow for more refined control and real-time feedback. The AM5N is fully compatible with ASIAIR, PC-based control systems, and ZWO's hand controller.

With its silent operation, zero meridian flip, and robust payload capacity, the AM5N is ideal for astrophotographers and visual observers who want professional-grade tracking performance in a compact and portable mount.

• Mount Type: Harmonic Drive Equatorial / Alt-Az Hybrid
• Payload Capacity (No Counterweight): 13 kg (28.6 lbs)
• Payload Capacity (With Counterweight): 20 kg (44 lbs)
• Mount Weight: 5 kg (11 lbs)
• Drive Mechanism: Upgraded Strain Wave Harmonic Drive
• Periodic Error: <15 arcseconds peak-to-peak (typical)
• Power Requirement: 12V DC (5A recommended)

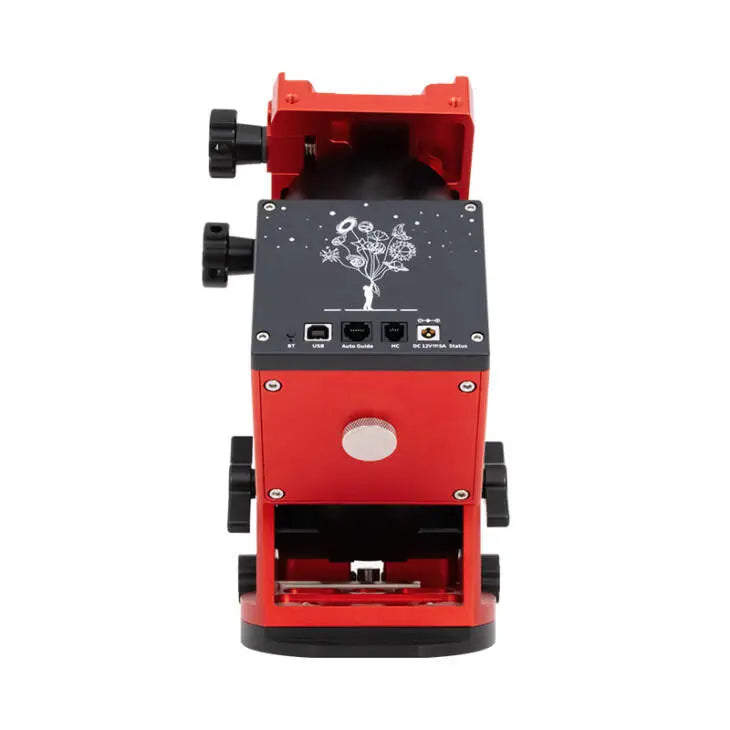

• Connectivity: Wi-Fi, USB, Hand Controller Port
• Zero Meridian Flip Capability: Yes
• Latitude Range: 0°–90°
• Slew Speed: Up to 6°/second

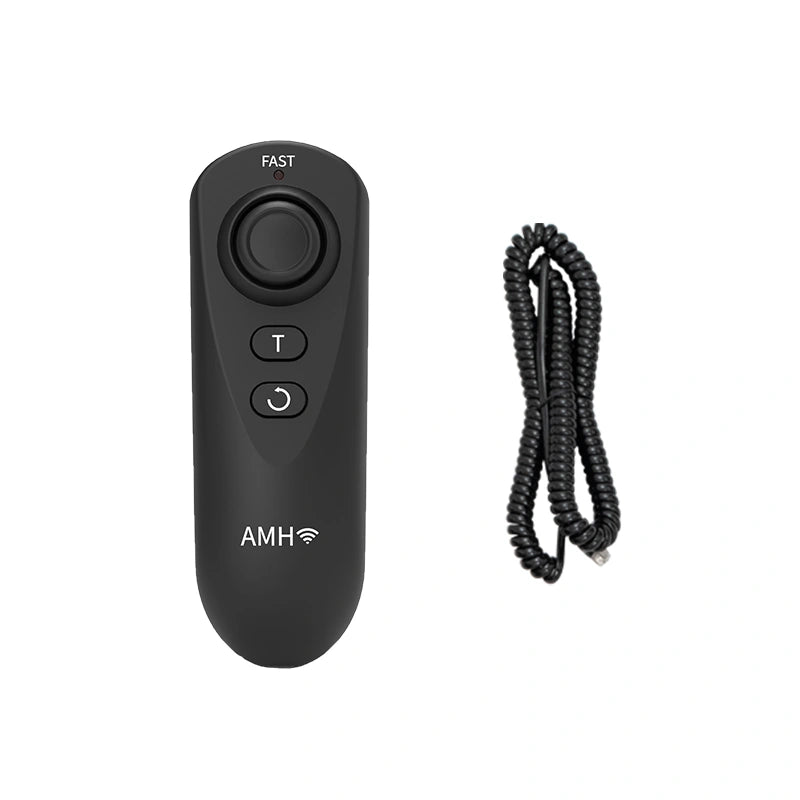

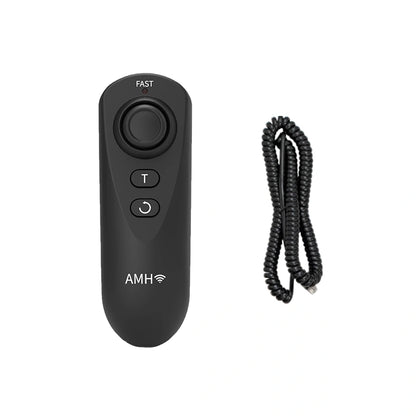

• Control Compatibility: ASIAIR, ZWO Hand Controller, PC Software (ASCOM/INDI)
• Mounting Base: Vixen/Losmandy Dual Dovetail Clamp
• Operating Temperature: -10°C to +40°C
• Warranty: 2 Year Manufacturer Warranty

• New ZWO AM5N Harmonic Drive Mount
• Dual Vixen/Losmandy Dovetail Saddle
• 12V AC Power Adapter
• USB Communication Cable
• Altitude and Azimuth Adjustment Tools
• Quick Start Guide & Documentation
• 2-Year Warranty
