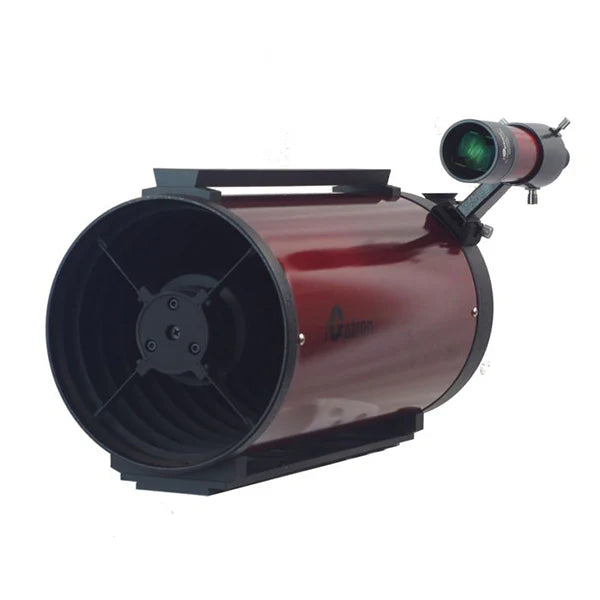

iOptron Photron 200 RC OTA

The iOptron Photron 200 RC OTA is a purpose-built 200 mm (8-inch) Ritchey-Chrétien astrograph designed for today's serious astroimagers. Its optical system delivers coma-free, spherical aberration-free, and chromatic aberration-free performance — making it ideal for high-resolution deep-sky imaging. At its core, the Photron 200 RC uses low thermal expansion quartz primary and secondary mirrors with 99% reflective dielectric coatings for exceptional light throughput and temperature stability. Its steel tube is internally baffled with 10 knife-edge baffles to suppress stray light and maximize contrast — whether you're imaging or observing. The OTA comes equipped with a dual-speed Crayford focuser and multiple extension rings, allowing precise control over backfocus and camera compatibility. With Losmandy- and Vixen-style mounting plates included, the Photron 200 RC is highly adaptable to a wide range of mounts and imaging setups.

Aperture	203 mm (8")
Focal Length	1624 mm
Focal Ratio	f/8
Optical Design	Ritchey-Chrétien
Glass Type	Quartz
Back Focus	250 mm
Camera Connection	2" Nosepiece
Highest Useful Magnification	406x
Limiting Magnitude	15.3
Dawes Limit	0.57 arcseconds
Secondary Obstruction	85 mm
Reflectivity	96%
Tube Diameter	230 mm
Tube Weight	18.5 lbs
Free Shipping	Yes

• iOptron Photron 200 mm (8-inch) RC OTA
• Two 25 mm Extension Rings
• One 50 mm Focus Extension Ring
• 1.25-inch Accessory Adapter
• Losmandy-style Mounting Plate
• Vixen-style Mounting Plate
• Dual-Speed Crayford Focuser
