CGX Equatorial 925 Edge HD

There is a moment every serious astronomer reaches. Your current telescope shows you beautiful things. But you know there is more out there. You know deeper galaxies exist. You know finer planetary detail is possible. You know your images can be sharper.

That moment is exactly what the CGX Equatorial 925 Edge HD is made for.

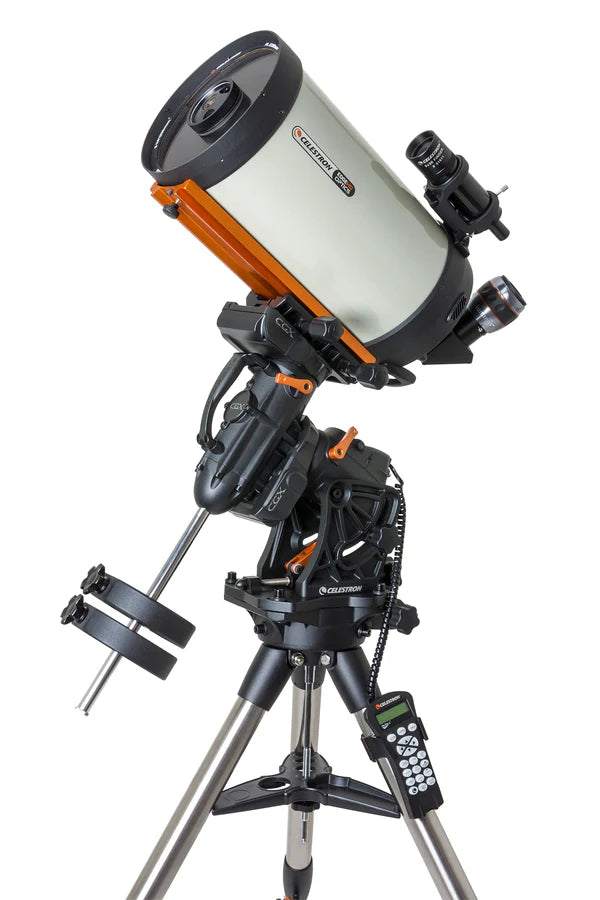

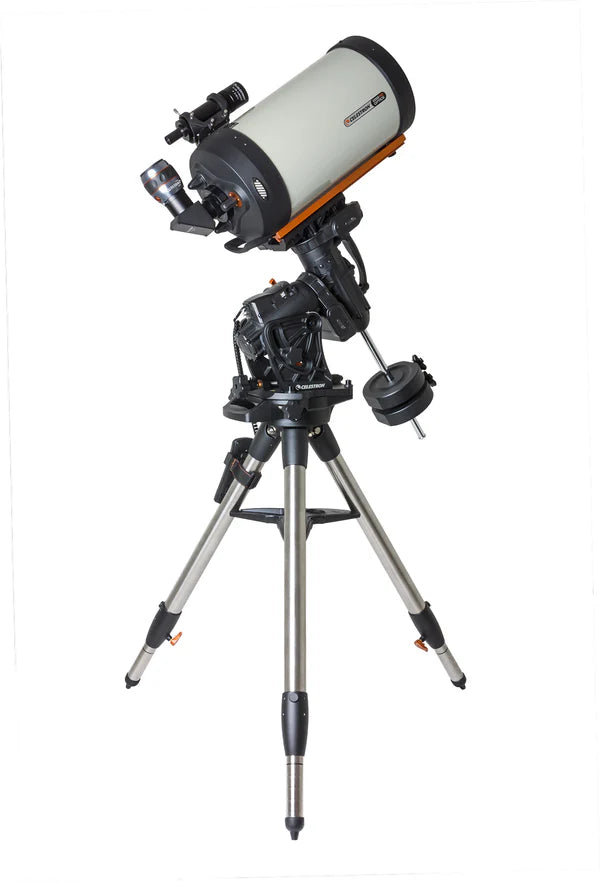

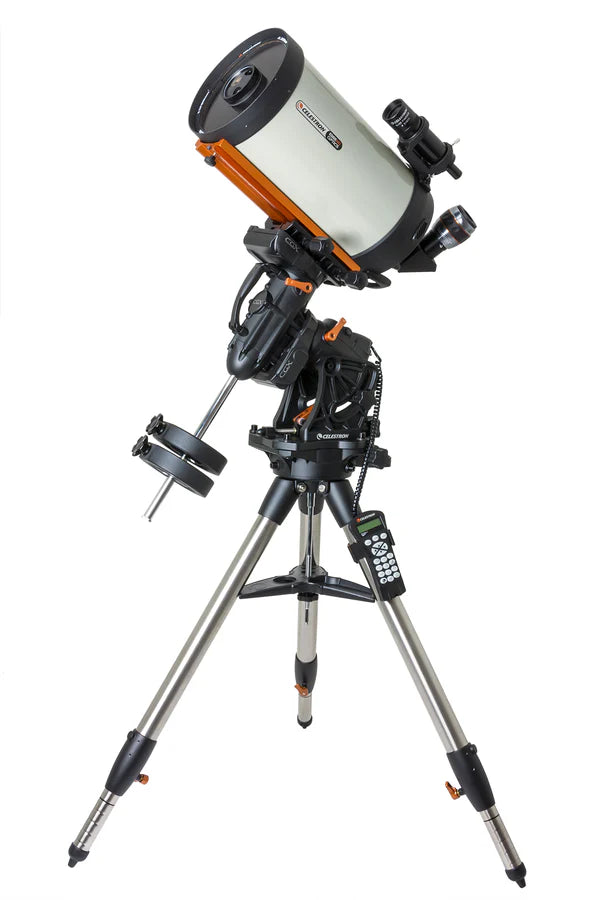

This is Celestron's 9.25-inch Edge HD optical tube on their most capable CGX German equatorial mount. It is not just bigger than what you have been using. It sees differently. It images differently. And once you use it, going back feels impossible.

First — Why 9.25 Inches Matters So Much

Let us talk numbers for a second. The CGX Equatorial 925 Edge HD has a 235mm aperture. Compare that to an 8-inch telescope at 203mm. That extra 32mm sounds small. But light collection does not work in a straight line — it works by area.

The 9.25-inch mirror collects 34% more light than an 8-inch mirror. In astronomy, 34% more light is a huge jump. Galaxies you could barely see before now show structure. Nebulae that looked like faint smudges now have detail and texture. Star clusters that looked crowded now resolve cleanly into individual stars.

More light means everything in this hobby.

The 9.25 Inch Secret — Why This Size Is So Special

Here is something most people do not know. The 9.25-inch optical design is not just a bigger version of the 8-inch. Celestron redesigned the optics specifically for this aperture. The result is one of the sharpest focal ratios in the entire SCT lineup.

The CGX Equatorial 925 Edge HD runs at f/10 with a 2350mm focal length. But the 9.25-inch optical path has a reputation among serious astronomers for delivering contrast and sharpness that exceeds what the numbers suggest. Planetary imagers in particular love this telescope. The detail on Jupiter and Saturn at this aperture is genuinely breathtaking.

Edge HD — The Flat Field That Changes Astrophotography

Standard Schmidt-Cassegrain telescopes have one weakness. The focal plane is curved. Stars near the edge of your image stretch into little comma shapes. For visual work, it is not a big problem. For astrophotography, it ruins your images.

The CGX Equatorial 925 Edge HD solves this with the built-in Edge HD aplanatic corrector. This corrector flattens the focal plane completely. Every single star — center to edge — is a perfect sharp point. No distortion. No coma. No ugly edge stars.

You do not need to buy an external field flattener. The correction is part of the optical design itself. This alone justifies the upgrade from a standard SCT.

Complete Specifications

Here are the full specs of the CGX Equatorial 925 Edge HD:

Optical Design: Schmidt-Cassegrain (Edge HD Aplanatic) Aperture: 235mm (9.25 inches) Focal Length: 2350mm Focal Ratio: f/10 Mount Type: CGX Computerized German Equatorial (GoTo) Payload Capacity: 22.7 kg Eyepiece Included: 23mm Luminos 2-inch wide-angle Finderscope: 9x50 straight-through finderscope Diagonal: 2-inch mirror diagonal Coatings: StarBright XLT multi-layer optical coatings Motors: Dual servo with encoder feedback Connectivity: Wi-Fi, USB, hand controller port Object Database: 40,000+ via NexStar+ hand controller

Notice the eyepiece upgrade here. The CGX Equatorial 925 Edge HD includes the 23mm Luminos 2-inch eyepiece — a premium wide-angle eyepiece that gives you a bigger, brighter field of view than the standard Plössl included with smaller models. You feel the quality difference the first time you look through it.

The 2-Inch Diagonal — Why It Matters

The CGX Equatorial 925 Edge HD includes a 2-inch mirror diagonal. This is a meaningful upgrade over 1.25-inch diagonals. A 2-inch diagonal accepts both 2-inch and 1.25-inch eyepieces. Wide-angle 2-inch eyepieces give you enormous, panoramic fields of view that 1.25-inch eyepieces simply cannot match.

When you look at the Pleiades, the Orion Nebula, or large open clusters, the 2-inch diagonal makes the difference between seeing the object and truly experiencing it. The wider field pulls you in.

StarBright XLT Coatings — Every Photon Counts

Light is everything in astronomy. You spend money on aperture to collect more light. It would be wasteful to then lose that light through poor coatings on your optics.

The CGX Equatorial 925 Edge HD uses Celestron's StarBright XLT coatings on every optical surface. These multi-layer coatings maximize light transmission and minimize reflection loss. More light reaches your eye. More light reaches your camera sensor. The images look brighter, the contrast looks higher, and the faint details come through more clearly.

This coating works especially well on faint deep sky objects — the very targets where the 9.25-inch aperture gives you such a big advantage.

CGX Mount — Engineered for Long-Exposure Imaging

A great optical tube needs a great mount. The CGX German equatorial mount matches the 925 Edge HD perfectly.

The CGX tracks Earth's rotation with dual servo motors and encoder feedback. Objects stay locked in your frame for long exposures — 5 minutes, 10 minutes, even longer with guiding. The 22.7 kg payload capacity means you can load this mount with the full imaging train: the 925 tube, a cooled camera, a guide scope, a guide camera, and filter accessories — all at once.

Control it with the included NexStar+ hand controller. Or connect via Wi-Fi and run it from your laptop or phone with Celestron's SkyPortal app. Plate-solving software, sequence automation, and planetarium software all connect seamlessly. The CGX Equatorial 925 Edge HD fits into any serious imaging workflow without friction.

What Can You Actually Do With This Setup?

Visual observing with the CGX Equatorial 925 Edge HD is stunning. Globular clusters like M13 and Omega Centauri completely resolve into thousands of stars. The Great Red Spot on Jupiter shows internal detail. Saturn's Cassini Division is sharp and clean. The Andromeda Galaxy stretches across your field of view with hints of dust lanes.

For astrophotography, the combination of 9.25-inch aperture, Edge HD flat field, and CGX tracking gives you publication-quality results. Pair it with a cooled monochrome camera from our cameras collection and a narrowband filter set from our filters collection. The results from Pakistani skies will genuinely surprise you.

Deep sky imaging, planetary imaging, lunar photography — the CGX Equatorial 925 Edge HD handles all of it at the highest level.

How Does It Compare to the 800 Edge HD?

You might be wondering whether to choose the CGX Equatorial 925 Edge HD or the CGX Equatorial 800 Edge HD. Here is the honest answer.

The 925 collects 34% more light. It includes a premium Luminos eyepiece instead of a basic Plössl. It uses a 2-inch diagonal instead of a 1.25-inch. The longer focal length gives more magnification for planetary detail. If your budget allows it, the 925 is the better telescope in every measurable way.

If you want to explore all advanced options, browse our full Schmidt-Cassegrain telescopes collection and our advanced level telescopes range.

Buy With Confidence From Pakistan's Only Authorized Celestron Dealer

Sky Deep is the only place in Pakistan where you can buy a genuine Celestron telescope with an official warranty. When you invest Rs. 15 lakh in a telescope system, that warranty is not optional — it is essential.

We offer free nationwide delivery to every city in Pakistan. Not sure if the CGX Equatorial 925 Edge HD is the right choice for your goals? Book a free consultation and our team helps you decide. Need help planning your imaging setup around this telescope? Visit our Astro Learning Hub or contact us directly.

We are here before the sale. We are here after the sale. That is what authorized dealership means.

Frequently Asked Questions

1. What makes the CGX Equatorial 925 Edge HD better than a standard 9.25-inch SCT?

The key difference is the Edge HD optical system. A standard 9.25-inch SCT has a curved focal plane. Stars near the image edge look stretched and distorted. The CGX Equatorial 925 Edge HD includes a built-in aplanatic corrector that completely flattens the focal plane. Every star across the full field is sharp and round. This makes astrophotography results dramatically cleaner without needing any extra accessories.

2. Is the CGX Equatorial 925 Edge HD good for planetary imaging?

Yes — it is excellent. The 9.25-inch aperture gives outstanding planetary resolution. The 2350mm focal length delivers high natural magnification. Planetary imagers specifically love the 9.25-inch optical design because it produces contrast and sharpness beyond what the specs suggest. You will see incredible detail on Jupiter, Saturn, and Mars. Pair it with a planetary camera from our cameras collection for the best results.

3. Can the CGX mount track accurately enough for deep sky astrophotography?

Yes. The CGX German equatorial mount uses dual servo motors with encoder feedback. It tracks with enough precision for long-exposure deep sky imaging. With an autoguider connected, you can take exposures of 10 minutes or longer. The 22.7 kg payload capacity easily handles the full imaging setup. It is one of the most capable mounts in this price range for serious astrophotography.

4. What is included with the CGX Equatorial 925 Edge HD?

The package includes the 9.25-inch Edge HD optical tube, the CGX equatorial mount and tripod, the NexStar+ hand controller, a 9x50 finderscope, a 2-inch mirror diagonal, and the premium 23mm Luminos 2-inch wide-angle eyepiece. Everything you need for your first night out is in the box. For accessories like additional eyepieces or filters, explore our eyepieces and Barlows collection.

5. Is the CGX Equatorial 925 Edge HD available in Pakistan with a warranty?

Yes. Sky Deep is Pakistan's only authorized Celestron dealer. When you buy the CGX Equatorial 925 Edge HD from us, you get a genuine Celestron warranty. You also get full after-sales support from our team. We are the official learning partner of the Lahore Astronomical Society and Pakistan's first astro imaging hub. Contact us anytime for support, or book a free consultation before your purchase.
