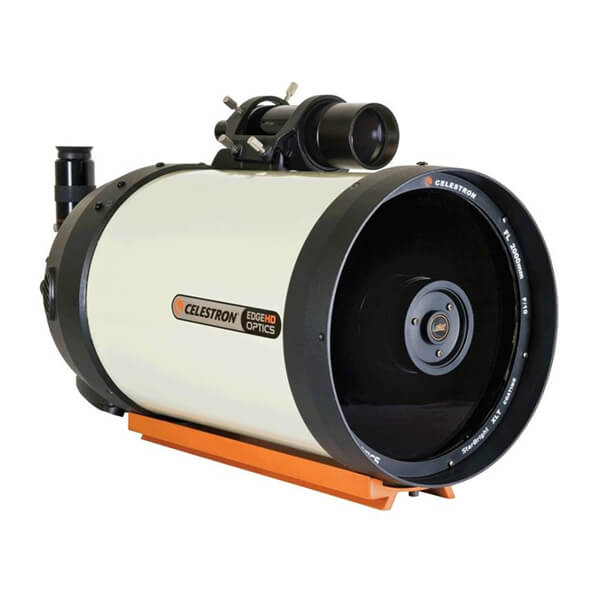

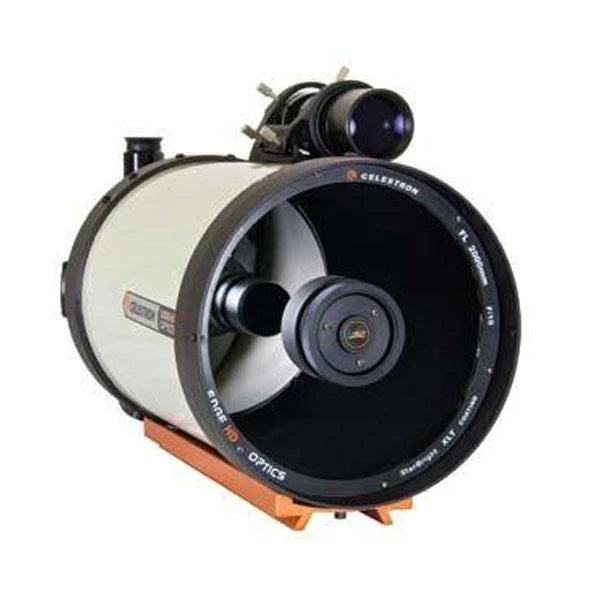

Celestron EdgeHD 8" OTA with CGE Dovetail Plate
Celestron EdgeHD 8" OTA with CGE Dovetail Plate
Regular price
$1,699.00 USD
Regular price
Sale price
$1,699.00 USD
SKU:CE-ED8-CGE
In stock
Quantity
Couldn't load pickup availability
PRODUCT DESCRIPTION
Celestron EdgeHD 8" OTA with CGE Dovetail Plate is a precision-engineered optical system designed for serious astronomers and deep-sky imagers. Combining flat-field clarity with mechanical stability, this OTA is built to elevate both visual observation and astrophotography.
- Ideal for intermediate to advanced astronomers who want pinpoint stars and professional-quality imaging
- 8-inch aperture and 2032 mm focal length deliver high magnification with excellent contrast
- EdgeHD optics ensure coma-free, aberration-free views with sharp focus across the entire field
- StarBright XLT coatings allow maximum light transmission across visual and photographic wavelengths
- Compatible with Fastar for optional f/2 wide-field imaging capability
- Cooling vents with micromesh filters stabilize temperature and reduce image distortion
- Mirror clutches reduce image shift, ensuring stability during long exposure sessions
- Each OTA is tested with artificial stars and cameras to guarantee optical performance
- Comes pre-installed with CGE dovetail plate for direct mounting on compatible setups
This OTA is designed for users who require flat, high-resolution imaging on large sensors, and is suitable for setups that include advanced equatorial mounts, auto-guiders, and dedicated astro cameras. It performs equally well in deep-sky visual exploration, delivering crisp detail across the field of view, night after night.
TECHNICAL SPECIFICATIONS
Feature | Specification |
---|---|
Aperture | 203.2 mm (8") |
Camera/Eyepiece Connection | 24 TPI |
Dawes Limit | 0.57 arcseconds |
Focal Length | 2032 mm |
Focal Ratio | f/10 |
Highest Magnification | 406.4x |
Light Gathering Power | 843x |
Limiting Magnitude | 15.3 |
Optical Design | Modified Schmidt-Cassegrain (EdgeHD) |
Tube Length | 432 mm (17") |
Tube Weight | 14 lbs |
OTA Mount Type | CGE Dovetail |
Warranty | 2-Year Warranty |
WHAT’S IN THE BOX?
- 203.2 mm (8") EdgeHD Schmidt-Cassegrain Optical Tube Assembly (OTA)
- 9x50 Optical Finderscope
- 1.25-inch Star Diagonal
- 1.25-inch Eyepiece (40 mm Plossl, 51x magnification)
- CGE-compatible Dovetail Mount Plate
- 2-Year Warranty Documentation
