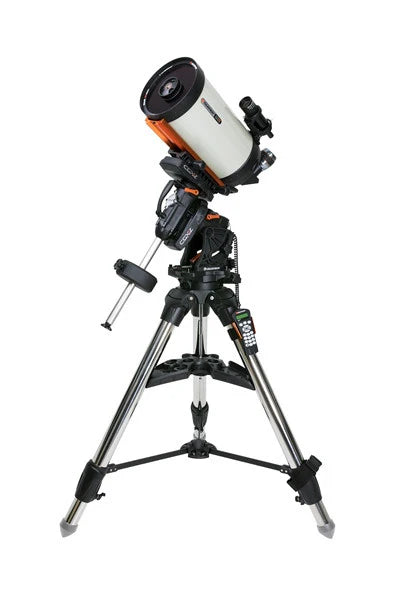

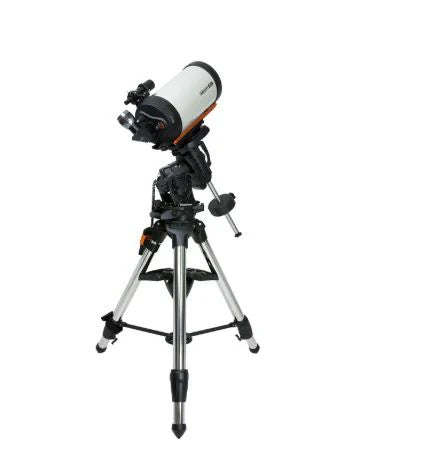

Celestron CGX-L Equatorial 9.25" EdgeHD Telescope Bundle

The Celestron CGX-L 9.25" EdgeHD Telescope is a powerful, professional-grade optical system that blends the exceptional optical fidelity of EdgeHD optics with the robust performance of the CGX-L equatorial mount. Designed for serious astrophotographers and observatory-level setups, this system delivers pinpoint star images with reduced aberrations and an enhanced imaging platform for wide-field and long-exposure photography.

The EdgeHD optical system provides a flat-field, coma-free image with high resolution across a wide corrected image circle—perfect for today’s full-frame CCD and DSLR cameras. StarBright XLT coatings ensure maximum light transmission across the visual and photographic spectrum.

The CGX-L equatorial mount is engineered with performance in mind—featuring large worm wheels, internal cabling, dual autoguider ports, and reinforced tripod legs. It can support up to 75 lbs of instrumentation with precision and minimal backlash, aided by the Permanent Periodic Error Correction (PPEC) system and an internal real-time clock.

With upgraded mechanics, intuitive NexStar+ control, ergonomic design, and next-generation cable management, this system stands out as one of the most complete and capable telescope bundles in its class. A trusted choice for observatories, research projects, and advanced amateur astronomers alike.

• Aperture: 234.95 mm (9.25")
• Focal Length: 2350 mm
• Focal Ratio: f/10
• Optical Design: EdgeHD Modified SCT
• Mount: CGX-L German Equatorial Mount
• Corrected Image Circle: 42 mm
• Back Focus: 146.05 mm
• Computerized: Yes (NexStar+ Hand Controller)
• Camera/Eyepiece Connection: 3.29” x 16 tpi
• Highest Magnification: 469.9x
• Light Gathering Power: 1127x
• Limiting Magnitude: 15.6
• PEC: Yes (Permanently Programmable)
• Tracking Rates: Sidereal, Solar, Lunar
• Instrument Capacity: 75 lbs
• Latitude Range: 3° to 56°
• Mount Head Weight: 52.6 lbs
• Tube Weight: 21 lbs
• Tube Length: 559 mm
• Tube Diameter: 262 mm
• Telescope Connection: Dual Vixen & Losmandy
• Ports: Autoguide, AUX, USB 2.0, Hand Controller
• Power Consumption: 12V DC 2.5A max
• Slew Speed: 4 Degrees Per Second
• Worm Wheel Diameter: 114 mm
• Free Shipping: Yes
• Warranty: 2 Years

• 9.25-inch EdgeHD Corrected Schmidt-Cassegrain Optical Tube Assembly (OTA)
• CGX-L German Equatorial Mount
• Heavy Duty CGX-L Tripod with Adjustable Steel Legs
• Accessory Tray
• NexStar+ Hand Controller
• 9x50 Optical Finder
• 2-inch Star Diagonal
• 2-inch 23 mm Luminos Wide-Angle Eyepiece
• 1 Counterweight (22 lbs)
• DC Power Cable with Cigarette Lighter Adapter
• NexRemote CD ROM Software
• 2 Year Warranty
