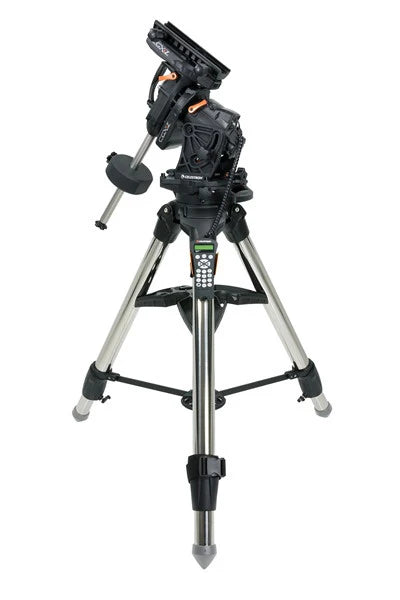

Celestron CGX-L Computerized German Equatorial Telescope Mount

The Celestron CGX-L Computerized German Equatorial Mount is engineered for high payload capacity, precision tracking, and ultimate stability—designed specifically for larger OTAs and astrophotography setups. With an impressive 75 lb payload rating, this mount is ideal for supporting large Schmidt-Cassegrain tubes, heavy imaging equipment, or remote observatory configurations.

The CGX-L improves upon the original CGX with an expanded base, longer worm wheels, 2.75" steel tripod legs, and a robust, ergonomic form factor that increases stability and ease of transport. Enhanced cable management with internal wiring and stationary ports ensures snag-free operation, even during long automated slews.

Precision worm gears and dual-axis optical sensors offer superior pointing and tracking accuracy, while integrated home and limit sensors provide automated protection. Whether for serious visual observing or professional-grade imaging, the CGX-L delivers a reliable platform built to perform at the highest level.

• Mount Type: Computerized German Equatorial Mount (GEM)
• Payload Capacity: 75 lbs (34 kg)
• Mount Head Weight: 52.6 lbs (23.8 kg)
• Tripod Weight: 19.2 lbs (8.7 kg)

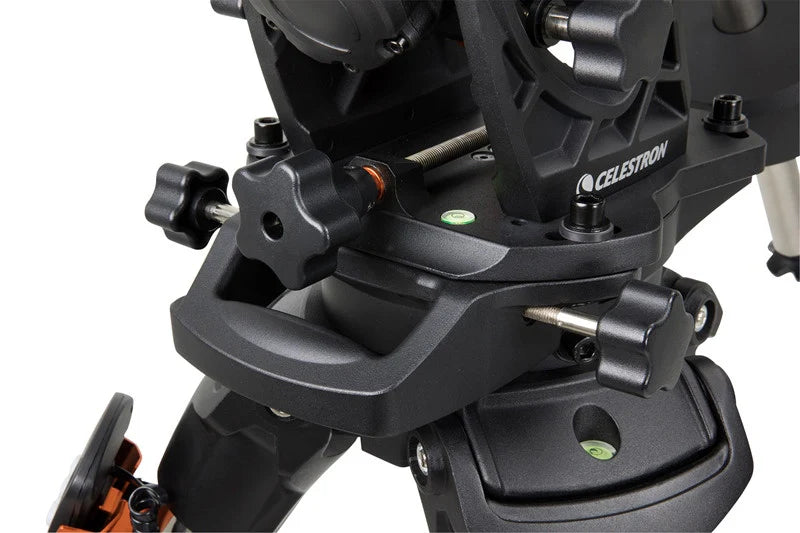

• Latitude Adjustment Range: 3°–65°
• Worm Gear Diameter: 114 mm
• Drive Type: Low-cog DC servo motors with optical sensors
• PEC: Yes (Permanent Periodic Error Correction)
• Slew Speed: Up to 4° per second

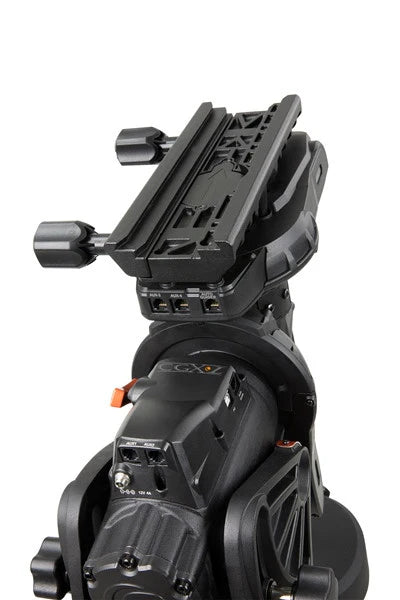

• Dovetail Saddle: Dual-fit (CG-5/Vixen and CGE/Losmandy)
• Ports: USB 2.0, Hand Controller, AUX x2, Autoguide
• Power Requirement: 12V DC, 2.5A Max
• Control System: NexStar+ Hand Controller / CPWI-compatible
• Tracking Rates: Sidereal, Solar, Lunar
• Integrated Home Sensors: Yes
• Integrated Limit Sensors: Yes

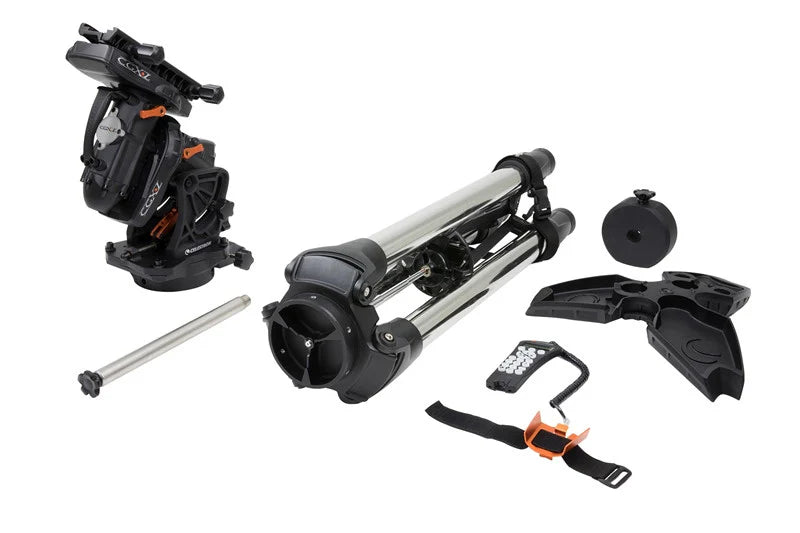

• Celestron CGX-L Equatorial Mount Head
• Steel Tripod with 2.75" Adjustable Legs
• Two Counterweights (22 lbs each)

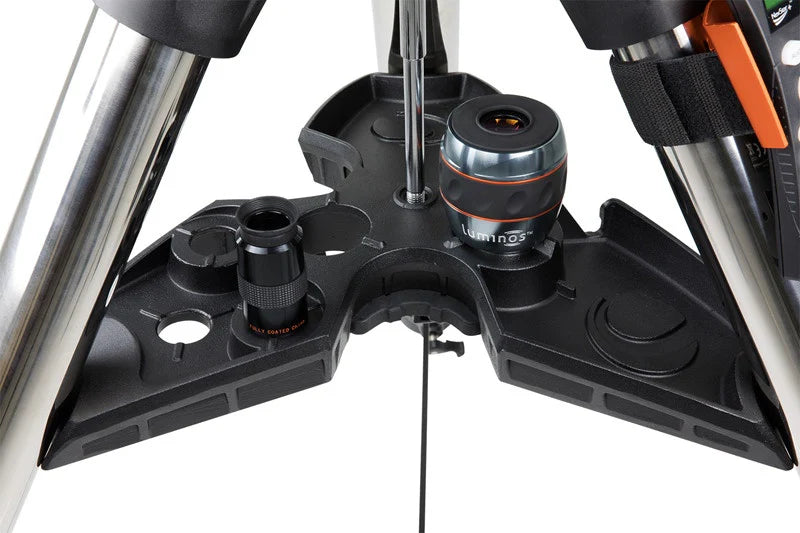

• Heavy-duty Accessory Tray
• NexStar+ Hand Controller with USB
• DC Power Cable (Cigarette Lighter Adapter)
• Bubble Level and Mounting Hardware
• User Manual and Setup Guide
• 2-Year Celestron Warranty
