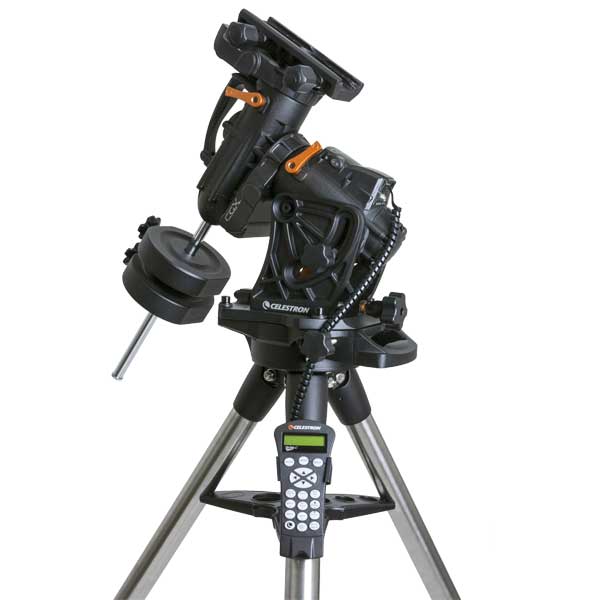

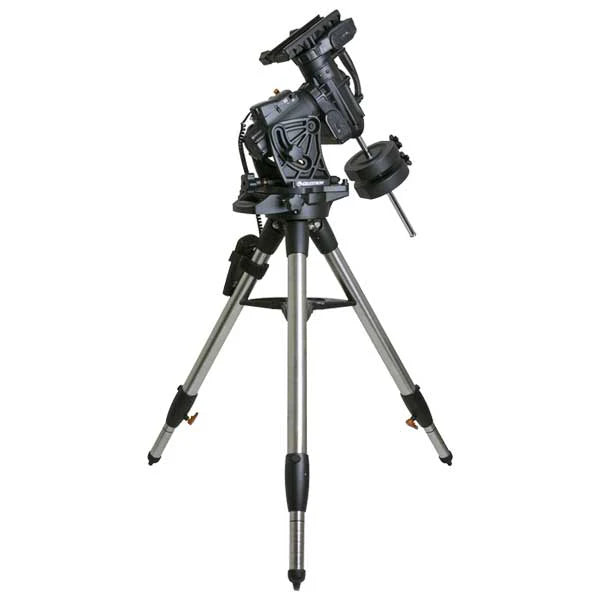

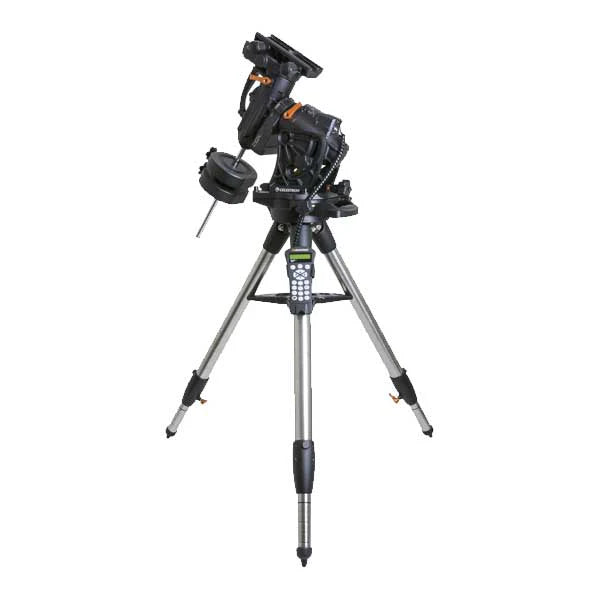

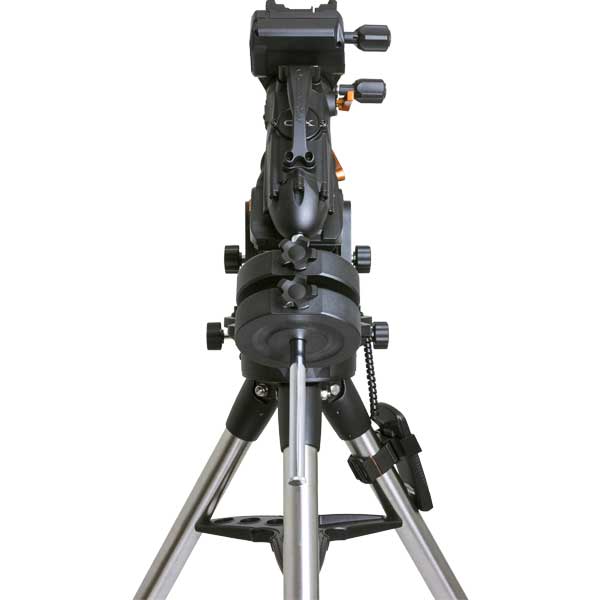

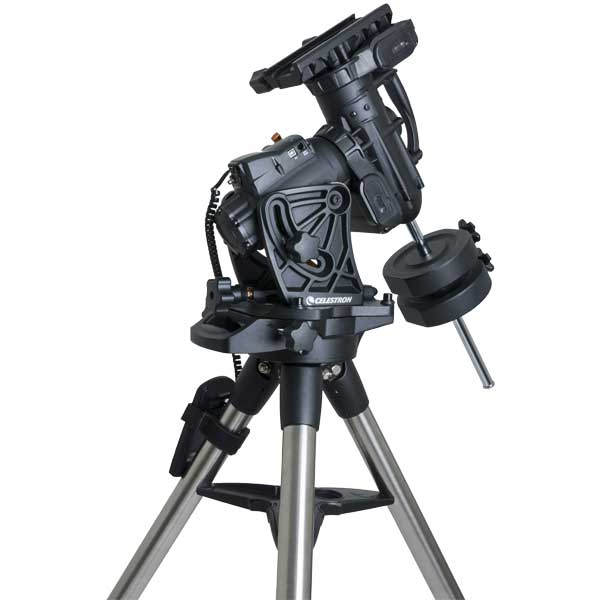

Celestron CGX Computerized German Equatorial Telescope Mount

The Celestron CGX German Equatorial Mount is a powerful, fully computerized platform designed for serious imagers and observers alike. Engineered with ergonomics, precision, and remote operation in mind, it features a compact form factor while offering a 55 lb payload capacity—suitable for larger optical tubes and imaging gear.

Innovations include improved motors with more torque, integrated optical sensors, internal cabling to prevent tangling, and a heavy-duty belt drive system for smoother, backlash-free movement. A wider tripod stance and updated latitude adjustments increase overall stability, while home and limit sensors enhance remote reliability and prevent damage during slewing.

Whether you're setting up a backyard observatory or preparing for mobile astrophotography under dark skies, the CGX mount offers superior tracking accuracy, mount control via CPWI software, and mechanical strength to support demanding payloads with confidence.

• Mount Type: Computerized German Equatorial Mount (GEM)
• Payload Capacity: 55 lbs (24.95 kg)
• Mount Head Weight: 44 lbs (20 kg)
• Tripod Weight: 19.2 lbs (8.7 kg)
• Latitude Adjustment: 3°–65° with integrated latitude scale
• Drive System: Belt-driven worm gears with low backlash
• Worm Wheel Diameter: 144 mm
• Motor Type: Low-cog DC servo motors with optical encoders
• PEC: Yes (Permanent Periodic Error Correction)
• Ports: USB 2.0, Hand Controller, 2x AUX, Autoguider
• Control System: NexStar+ Hand Control / CPWI Software
• Tracking Rates: Sidereal, Solar, Lunar
• Slew Speed: Up to 5° per second
• Dovetail Saddle: Dual fit (CG-5/Vixen and CGE/Losmandy)
• Power Requirement: 12V DC, 5A Max
• Home Sensors: Yes (for accurate remote start-up)
• Limit Sensors: Yes (prevents mechanical crash)

• Celestron CGX Equatorial Mount Head
• Steel Tripod with 2" Adjustable Legs
• Two 17 lb Counterweights
• Counterweight Bar
• NexStar+ Hand Controller
• Accessory Tray
• DC Power Cable (Car Battery Adapter)
• Instruction Manual
• 2-Year Celestron Warranty
