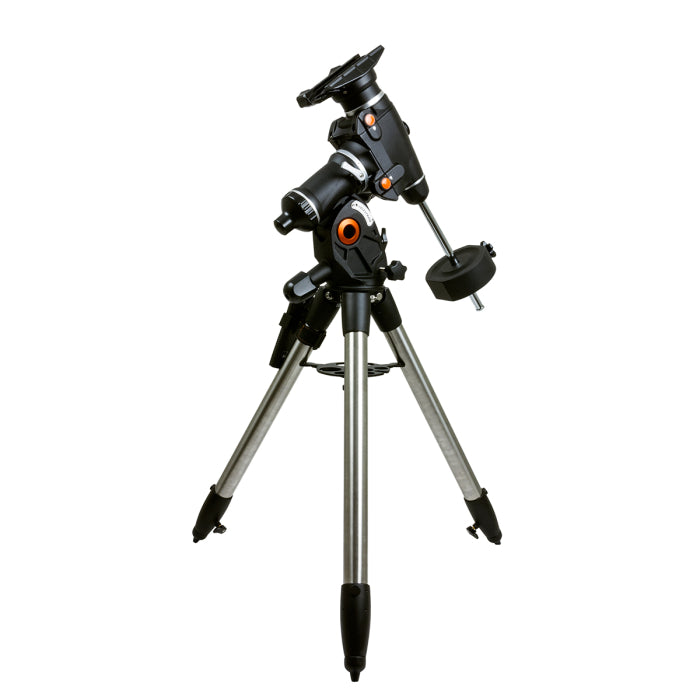

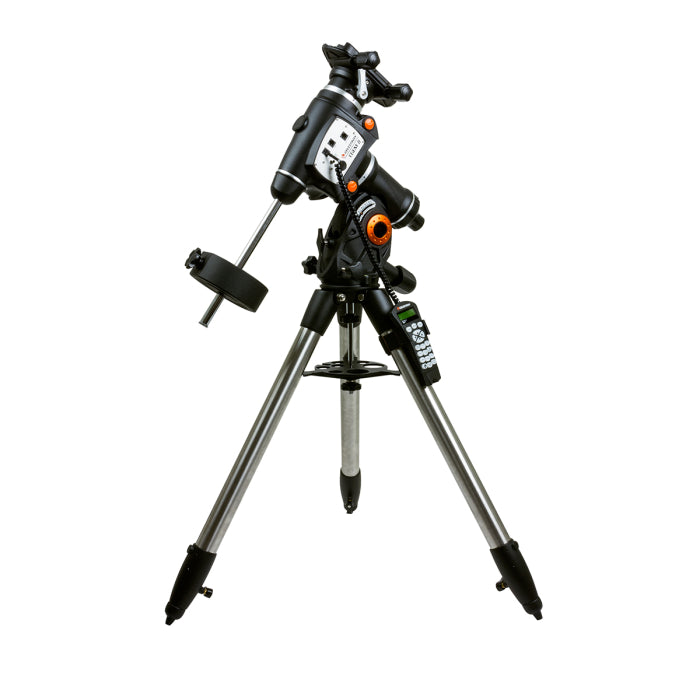

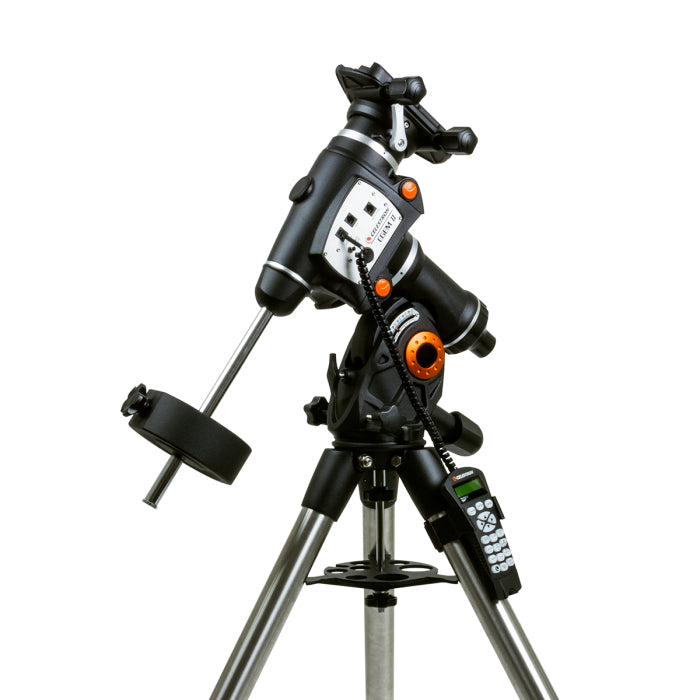

Celestron CGEM II Equatorial Mount

The Celestron CGEM II Equatorial Mount offers a robust and intelligent platform for intermediate to advanced astrophotographers and visual observers. Designed to support optical tubes up to 40 lbs, the CGEM II blends strength and refinement with cutting-edge motor technology, making it an exceptional choice for deep-sky imaging and planetary tracking.

The CGEM II features low cog DC servo motors and an innovative software suite that includes the All-Star Polar Alignment for simplified setup and PPEC (Permanent Periodic Error Correction) to enhance tracking performance. The NexStar+ hand control is intuitive and user-friendly, featuring a 40,000+ object database and automatic slewing with tracking support.

Engineered with precision-machined worm gears and a heavy-duty tripod, the CGEM II delivers exceptional stability and smooth operation even under demanding payloads. Its ergonomic design, internal cable routing, and sleek form factor make it a favorite for observatory-class imaging or serious field sessions.

• Mount Type: Computerized German Equatorial
• Payload Capacity: 40 lbs (18.1 kg)
• Latitude Range: 15° to 70°
• Mount Head Weight: 40 lbs
• Tripod Weight: 20 lbs (2" steel legs)
• Counterweight: One 17 lb counterweight included
• Power Requirements: 12V DC, 3.2A
• Drive System: Low cog DC servo motors with belt drive

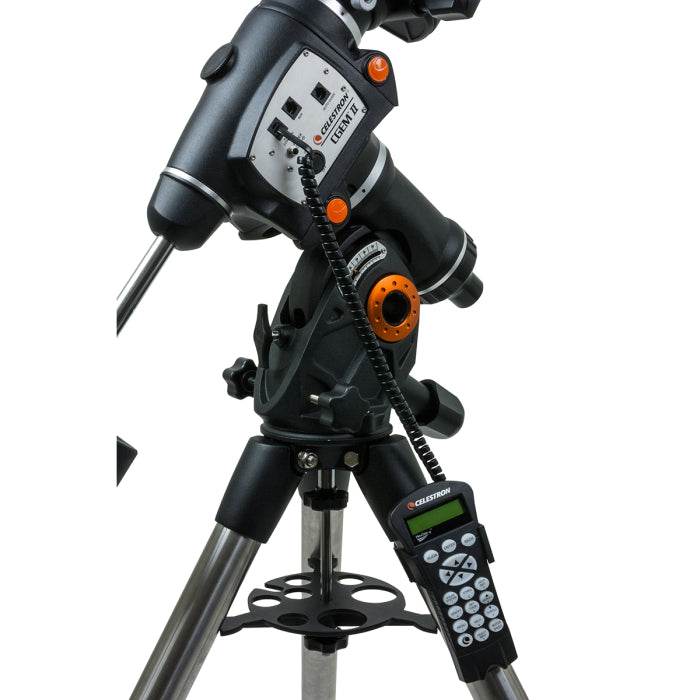

• Hand Controller: NexStar+ with USB and RS-232 support
• Database: 40,000+ objects with enhanced filtering
• PEC: Yes (Permanent Periodic Error Correction)
• Polar Alignment: All-Star Polar Align built-in
• Slew Speed: Up to 4° per second
• Tracking Rates: Sidereal, Solar, Lunar
• Autoguider Port: Yes
• Ports: AUX, hand control, USB
• Tripod: 2" diameter steel legs with accessory tray

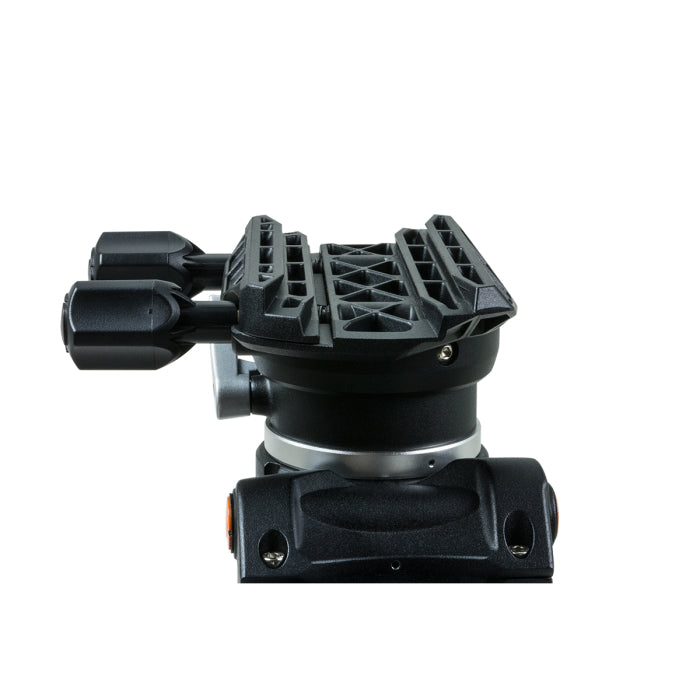

• Mount Connection: Dual Vixen/Losmandy dovetail saddle
• Warranty: 2 Year Celestron Warranty

• Celestron CGEM II Equatorial Mount Head
• 2" Heavy-Duty Stainless Steel Tripod
• 17 lb Counterweight
• NexStar+ Hand Controller
• Accessory Tray
• DC Power Cable (Car Adapter)
• RA and DEC Cables
• Instruction Manual
• 2-Year Warranty
