Celestron
Celestron CGEM-II 800 EdgeHD Telescope
Celestron CGEM-II 800 EdgeHD Telescope
Regular price
$3,599.00 USD
Regular price
Sale price
$3,599.00 USD
SKU:CE-CGEM2-800ED
In stock
Quantity
Couldn't load pickup availability
PRODUCT DESCRIPTION

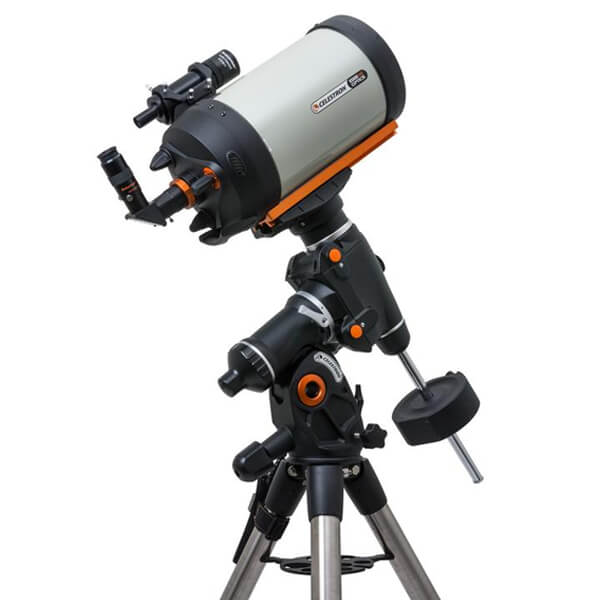

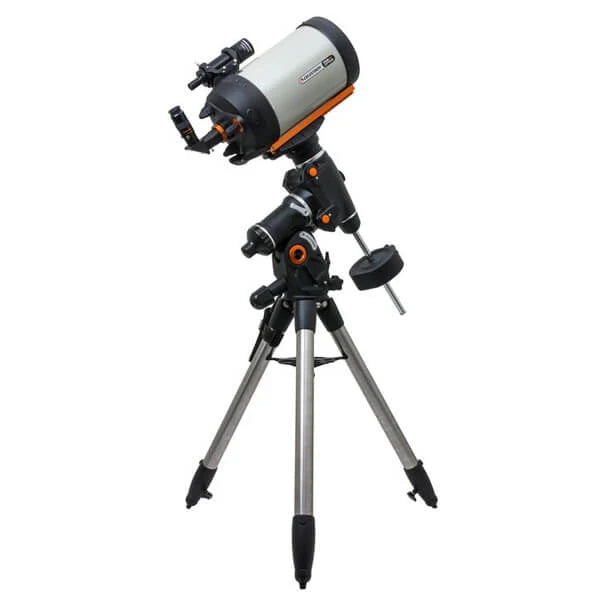

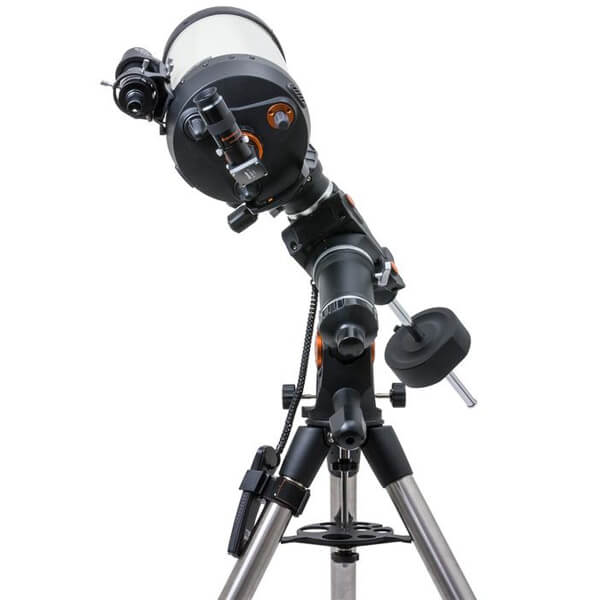

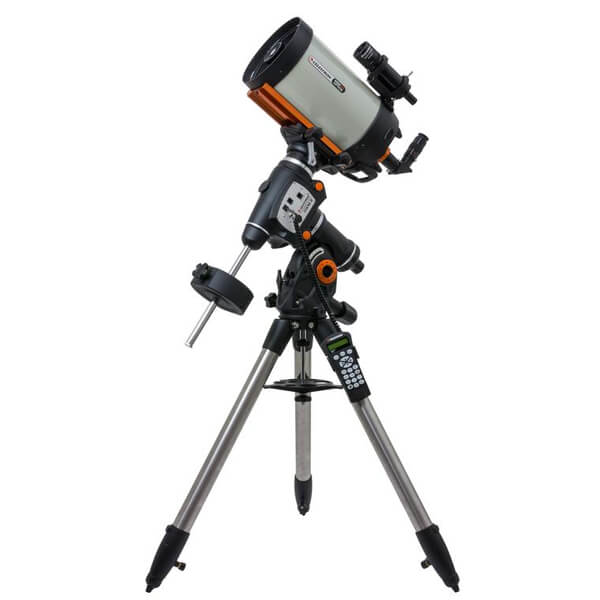

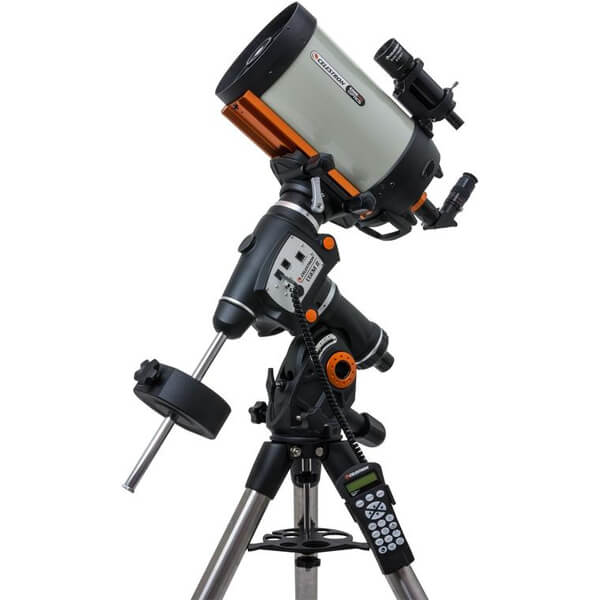

The Celestron CGEM-II 800 EdgeHD Telescope combines high-definition optics with a robust German equatorial mount, offering precise tracking and exceptional imaging performance. Built to support optical tubes up to 11", the CGEM-II mount and 8" EdgeHD OTA deliver stunning astrophotography and visual observation in a versatile, portable format.
- 8" EdgeHD OTA with flat-field, aplanatic SCT optics ensures pinpoint stars across large sensors
- Aluminum optical tube with rear cell cooling vents and 95-micron mesh filters for thermal control
- Mirror support knobs reduce image shift, maintaining focus during long exposures
- Compatible with native f/10, f/7 (with reducer), and f/2 Fastar imaging setups
- CGEM-II mount includes ergonomic altitude/azimuth knobs for easy polar alignment
- All-Star Polar Alignment software allows alignment on any bright star
- Permanent Periodic Error Correction (PEC) improves long-exposure accuracy
- Internal cabling reduces clutter and enhances remote operation reliability
- Tracks smoothly past the meridian for uninterrupted imaging sessions
- Dual saddle plate supports Vixen and Losmandy dovetails for broad OTA compatibility
Whether you're a seasoned astrophotographer or dedicated visual astronomer, the CGEM-II 800 EdgeHD offers advanced control, superior optics, and field-ready versatility. With a database of over 40,000 celestial objects and NexRemote software included, this system delivers reliable performance under the stars.
TECHNICAL SPECIFICATIONS
Feature | Specification |
---|---|
Aperture | 203 mm (8") |
Focal Length | 2032 mm |
Focal Ratio | f/10 |
Optical Design | Modified SCT (EdgeHD) |
Corrected Image Circle | 42 mm |
Back Focus | 133.35 mm |
Light Gathering Power | 841x |
Limiting Magnitude | 15.3 |
Highest Magnification | 406x |
Dawes Limit | 0.57 arcseconds |
Secondary Obstruction | 68.6 mm |
Computerized | Yes |
Database | 40,000+ Objects |
Tracking Rates | Lunar, Sidereal, Solar |
PEC | Yes |
Ports | Autoguider, AUX, USB 2.0, Hand Controller |
Drive Type | Low cog DC servo motors |
Power Consumption | 12V DC 3.2A |
Mount Type | CGEM-II Equatorial |
Instrument Capacity | 40 lbs |
Latitude Range | 15° to 70° |
Slew Speed | 5° per second |
OTA Length | 432 mm |
OTA Diameter | 226 mm |
OTA Weight | 14 lbs |
Mount Head Weight | 40 lbs |
Tripod Weight | 20 lbs |
Total Weight | 77 lbs |
Warranty | 2-Year Warranty |
WHAT’S IN THE BOX?
- 203 mm (8") EdgeHD Optical Tube Assembly
- CGEM-II Computerized German Equatorial Mount
- Tripod with 2-inch Steel Legs
- Hand Controller with Internal Clock
- Accessory Tray / Spreader
- 1.25-inch Star Diagonal
- 9x50 Optical Finderscope
- 1.25-inch Eyepiece, 40 mm Plossl (51x Magnification)
- DC Cigarette Lighter Adapter
- Counterweight Bar (12" Length, 17 lb Counterweight)
- CD-ROM Software: NexRemote
- 2-Year Manufacturer’s Warranty
