Advanced Deep Space Imaging Bundle

The Advanced Deep Sky Imaging Bundle is an observatory-class platform designed to capture faint galaxies, planetary nebulae, and intricate emission structures at long focal lengths—night after night, with repeatable precision.

At its heart, the Celestron CGX-L German Equatorial Mount provides robust mechanics, precision tracking, and a high payload capacity that comfortably supports the Celestron 11" EdgeHD Optical Tube Assembly (OTA). This pairing delivers the reach and light-gathering power needed for targets too small for widefield systems, while EdgeHD optics ensure pinpoint stars across a flat field.

Imaging performance is powered by the ZWO ASI6200MM-P25, a cooled full-frame monochrome astrophotography camera featuring the Sony IMX455 BSI sensor with 61.2 MP resolution, 91% peak quantum efficiency, 16-bit ADC, 51,400e⁻ full well depth, and ultra-low read noise. Zero amp glow and two-stage TEC cooling ensure clean, detailed exposures.

Supporting optics include the ZWO OAG-L Off-Axis Guider for stable, flexure-free guiding, and the ZWO ASI174MM Mini guide camera, renowned for its large sensor and high sensitivity, ensuring accurate tracking even on faint guide stars.

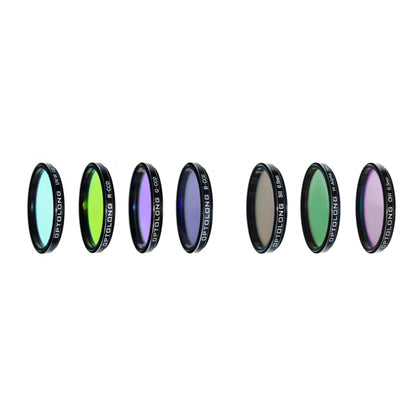

Spectral control is handled by the Optolong 2" Filter Set, consisting of LRGB filters (7 nm) and narrowband filters: H-Alpha (7 nm), SII (6.5 nm), OIII (6.5 nm). Combined with the ZWO 7-Position 2" Electronic Filter Wheel, this provides flexible, automated filter management for broadband and narrowband astrophotography.

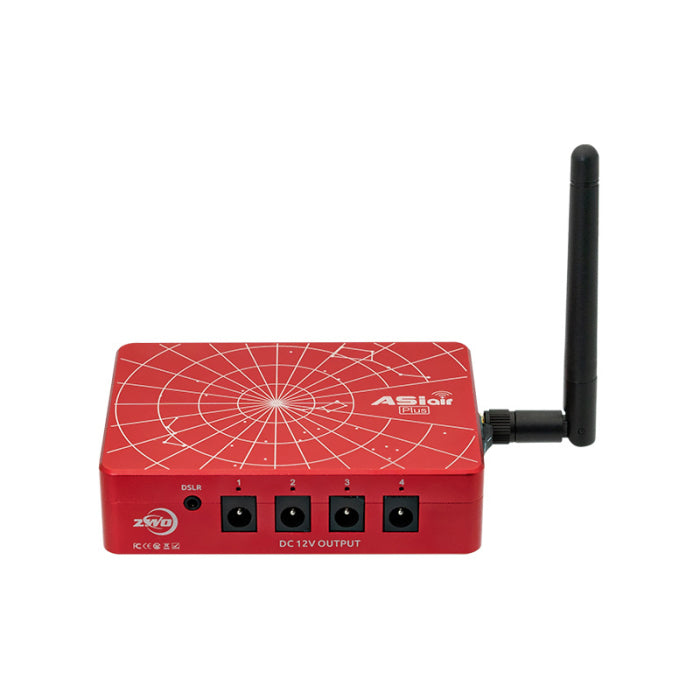

Automation and control are streamlined by the ZWO ASIAIR Plus (256GB), unifying polar alignment, plate solving, guiding, filter sequencing, and capture automation in one compact wireless unit. Paired with the ZWO EAF Pro (2025), the system maintains razor-sharp focus through changing temperatures and seeing conditions.

This is a complete deep-sky astrophotography solution, combining observatory-class stability, reference-grade spectral control, and next-generation imaging hardware for advanced imagers who demand reliability, precision, and scientific-grade results.

Telescope

• Celestron EdgeHD 11" SCT OTA

• Aperture: 279 mm (11")

• Focal Length: 2800 mm

• Focal Ratio: f/10

• Optical Coatings: StarBright XLT

• OTA Weight: 27.5 lb

Mount

• Celestron CGX-L Computerized German Equatorial Mount

• Payload: 75 lb

• Precision belt-driven worm gears, homing sensors

• Integrated cable management

Imaging Camera

• ZWO ASI6200MM-P25

• Sensor: Sony IMX455 BSI CMOS (Full Frame)

• Resolution: 9576 × 6388 (61.2 MP)

• Pixel Size: 3.76 µm

• Peak QE: 91%

• Full Well Capacity: 51,400 e⁻

• Read Noise: 1.2 – 3.5 e⁻

• Cooling: Two-stage TEC, ΔT ~ -35°C below ambient

• Interface: USB 3.0

• Weight: 1.4 lb

Guiding

• ZWO OAG-L Off-Axis Guider (large prism for full-frame sensors)

• ZWO ASI174MM Mini Monochrome Guide Camera

  • Sensor: Sony IMX174, 1936 × 1216

  • Pixel Size: 5.86 µm

  • USB 2.0

Filters & Filter Wheel

• ZWO 7-Position Electronic Filter Wheel (2")

• Optolong 2" LRGB Filters (7 nm)

• Optolong Narrowband Filters:

  • H-Alpha 7 nm

  • SII 6.5 nm

  • OIII 6.5 nm

Automation & Control

• ZWO ASIAIR Plus (256 GB)

• WiFi control with polar alignment, plate solving, guiding, sequencing

• ZWO EAF Pro (2025) – high precision electronic automatic focuser

• Celestron EdgeHD 11" OTA

• Celestron CGX-L Equatorial Mount with tripod

• ZWO ASI6200MM-P25 Pro Imaging Camera

• ZWO ASI174MM Mini Guide Camera

• ZWO OAG-L Off-Axis Guider

• ZWO 7-Position 2" EFW (Electronic Filter Wheel)

• Optolong 2" LRGB Filters (7 nm)

• Optolong Narrowband Filters: Ha 7 nm, SII 6.5 nm, OIII 6.5 nm

• ZWO EAF Pro (2025)

• ZWO ASIAIR Plus 256 GB with cables

• Required spacers, adapters, and mounting hardware
